| Type: | Torqmotor | Model: | BME2-65 |
|---|---|---|---|
| Flow Rate: | Cont.45/int.57 L/min | Max Speed: | Cont.667/int.842 Rpm |
| Max Torque: | Cont.126/int.176 N.m | Max Output: | Cont.8.3/int.13.9KW |
| High Light: | Low RPM Hydraulic Motor Parker,Hydraulic High Torque Duty Motor,High Torque Motor 667 Rpm |
||

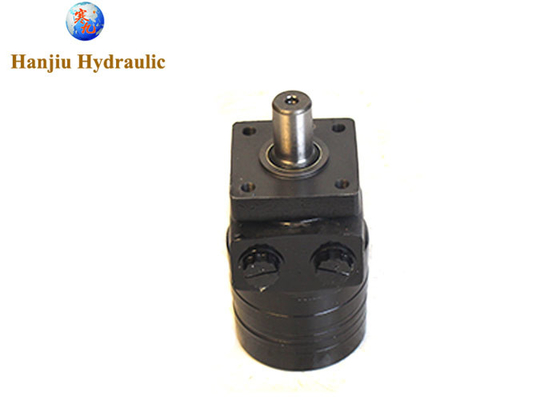

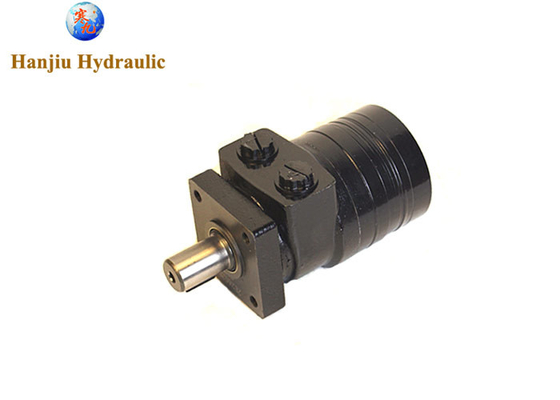

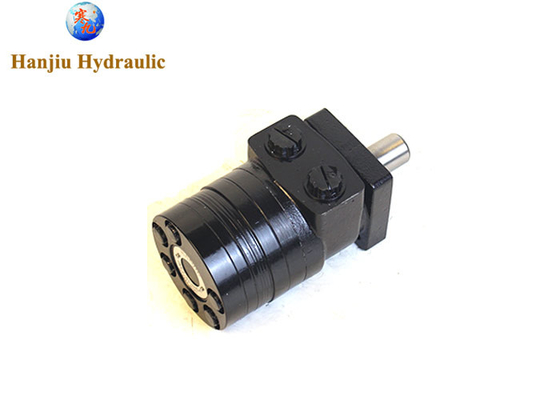

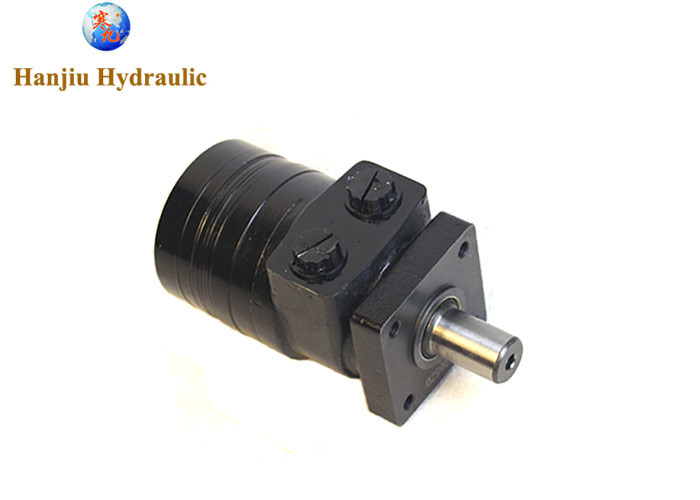

low RPM hydraulic motor Parker model TB065 hydraulic motor high torque duty motor
Hanjiu technology provide BME2 motors, has the same performance with TB065 Series motor
This light to medium duty motor incorporates all the features of heavy duty motors.
Design features include a high pressure shaft seal so external drains are never required,
roller vane technology for automatic wear compensation, and full flow internal cooling and flushing.
This is a very economical motor for most light to medium duty applications.
Here are the technical informations:
| Parker Model No. | TB065 |
| Hanjiu Model No. | BME2-65-H4S-K |
| Flange & Port |
Port 7/8-14UNF,4 Bolt w/3/8-16 UNC
|
| Shaft | 25.4mm key SHAFT |
| Rotation | Counter clockwise |
|
Max. speed (rpm)
|
667rpm
842rpm
|
|
Max. torque (N•m)
|
126N.m
176N.m
|
|
Max. output (kW)
|
8.3kw
13.9kw
|
|
Max. flow (L/min)
|
45L/min
57L/min
|
| Color | Black |
Except Parker TB series, we also have TE, TC, TJ, TF, TG series.
Hanjiu produces both high-speed hydraulic motors and hydraulic motors, and is skilled in the production of both hydraulic motors.
Hanjiu has been engaged in the production of orbital motor and hydraulic motor related products for many years, with rich experience and strong professionalism. There are efficient industrial assembly lines and professional R & D departments to escort the quality of products, and there is an excellent after-sales team ready to serve you at any time. We look forward to becoming your partner.
