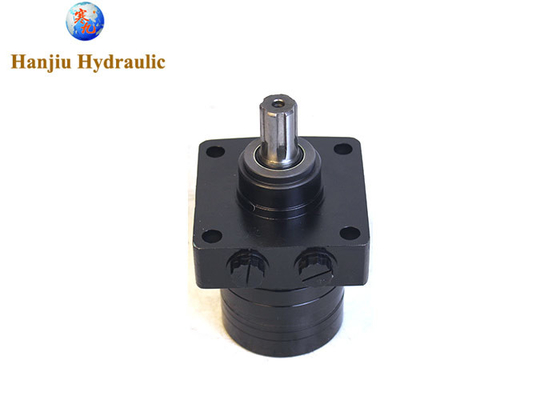

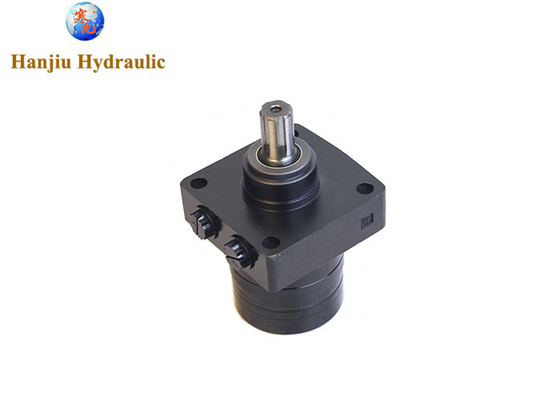

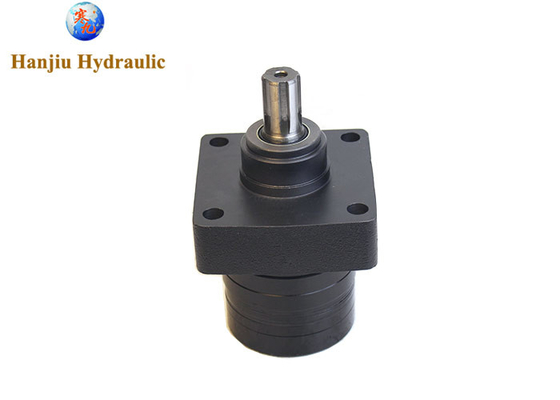

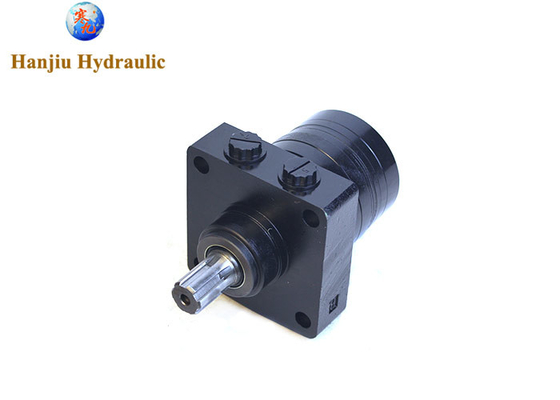

Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange

Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange
Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange

Large Image :  Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: TE0065US1100AAAA
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Contact the seller to get a quote
Packaging Details: Box, Pallet
Delivery Time: 55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Item: Torqmotor OEM #: TE0065US1100AAAA
Manufacturer: Hanjiu Displacement: 65 Ml/r
Mounting Flange: 4-hole,Wheel Mounting Shaft Type: 1" Splined Shaft
High Light:

Hydraulic Wheel Motor 65 Cm3/Rev

,

Spline Shaft Hydraulic Wheel Motor

,

Hydraulic Wheel Motor 65 Ml/R

Hydraulic Wheel Motor,65 cm3/rev,1"6B spline shaft , wheel mounting flange,Parker TE series



Quick review:

Drop in equivalent to TE0065US1100AAAA Parker low speed, high torque hydraulic motor. 4.0 cu. in. / rev displacement. Maximum pressure 140bar continuous, maximum pressure 190bar  intermittent. Torque 125N.m. continuous, torque 165N.m. intermittent. Maximum speed 667 RPM continuous. Flow rate 45l/min,1" spline 6B shaft . 7/8-14 SAE ports. 4bolts wheel mounting flange. 1 year warranty.



LSHT Torqmotors
Manufacturer: Hanjiu



This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque. Robust
roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure
shaft seals, robust roller bearings and high flow shaft seal cooling.



Details specifications



Series:  TE
Shaft: 1" spline shaft
Rotation: Standard
Displacement (cm3/rev): 0065
Mounting: 4 Bolts wheel mounting flange
Ports: 7/8-14 SAE
Geometric Displacement: 65 cm3/rev (4.0 in3/rev)
Maximum Speed: 842 rev/min
Maximum Oil Flow (continuous / intermittent): 45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent): 140 bar (2030 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure: 200 bar (2900 PSID)
Maximum Torque - Continuous / Intermittent: 390 Nm (3452 lb in) / 528 Nm (4673 lb in)
Maximum Performance: 17.4 KW (23.4 HP)
Minimum Starting Torque - Continuous / Intermittent: 312 Nm (2762 lb in) / 411 Nm (3637 lb in)
Maximum Side Load at Key: 6650 N (1500 lb)



The motor is available in 15 displacements from 36 cc/rev to 392 cc/rev: TE0036 | TE0045 | TE0050 | TE0065 | TE0080 | TE0100 | TE0130 | TE0165 | TE0195 | TE0230 | TE0260 | TE0295 | TE0330 | TE0365 | TE0390



Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange 0Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange 1



More Parker type Torque motors:

TB, TC, TJ, TE, TF, TG, TK



Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange 2



other types :



DANFOSS Hydraulic Motors
OMM
OMP
OMR
OMS
OMH
OMT
OMV

M+S Hydraulic Motors
MM/MLHM
MP/MLHP
MR/MLHR
MH/MLHH
MS/MLHS
MT/MLHT
MV/MLHV

EATON Hydraulic Motors
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10,000 (119-, 120-, 121-)




Hydraulic Wheel Motor 65 Cm3/Rev 1"6B Spline Shaft Wheel Mounting Flange 3



Whether you are a dealer or an individual customer, if you have a demand for hydraulic motor, orbit motor,torquemotor, low speed high torque motor,Hanjiu technology is your best choice and business partner!
