| Item: | Directional Control Valve | Model: | Mp80-3qtw |
|---|---|---|---|
| Bank: | 3 Bank | Flow Rate: | 80LPM |
| Thread: | 1/2"BSP | Spool: | 1 To 6 Sections |
| High Light: | Directional Control Valves MP80,Directional Control Valves 21gpm,Directional Hydraulic Control Valve |
||

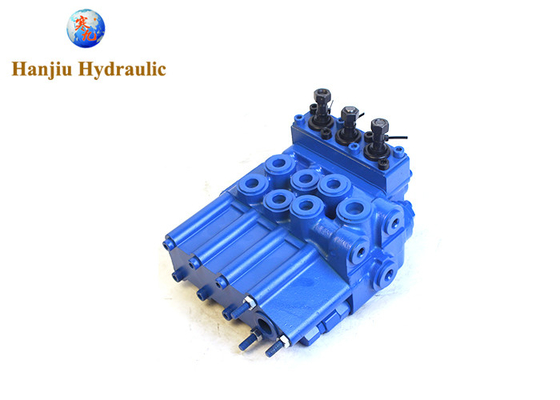

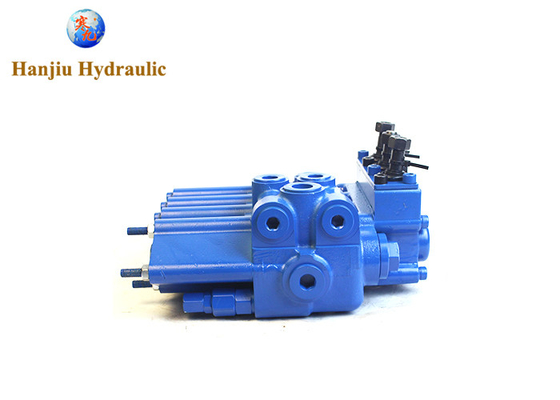

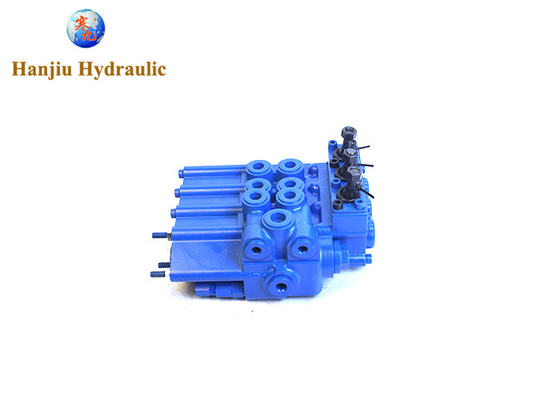

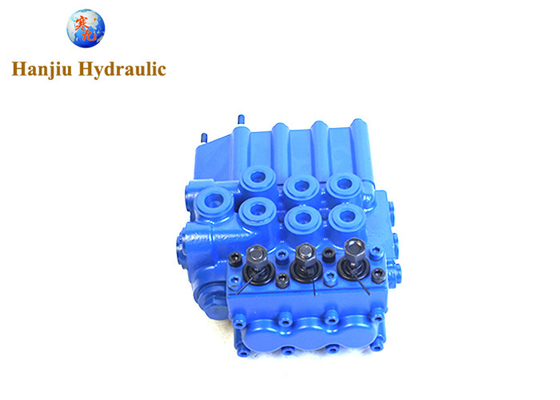

Directional Control Valves MP80,21gpm,Bspp G1/2 Ports, 3 Levers Monoblock Hydraulic Control Valve
Directional control valves MP80 are used in hydraulic systems with flow up to 100 l/min. Designed for distribution and flow control between pump and actuators (hydraulic cylinders and motors). They are used in hydraulic systems of agricultural tractors BELARUS, XTZ, UMZ etc., and pipelayers ChTZ-URALTRAK.
The closed center directional valve is designed for hydraulic systems with fixed displacement pump.
Equipped with a main relief valve and unloading valve.
A load check valve for proportional control of the spools.
Parallel hydraulic circuit.
Variety of 3 and 4 positions spools.
Manual control.
Cartridge pilot check valves is avaible.
Specification:
| SERIES | mp80 |
| MAX FLOW LPM | 100 |
| MAX PUMP FLOW l/min | 80 |
| MAX WORKING PRESSURE bar | 315 |
| CONSTRUCTION | SYMMETRICAL |
| NUMBER OF SECTIONS | 1 TO 10 |
| SPOOL ACTUATION | MANUAL, MECHANICAL JOYSTICK, CABLE, PNEUMATIC, HYDRAULIC PILOT |
| SECTIONAL STYLE | YES |
| SECTIONAL LOAD CHECK VALVE | YES |
| SERVICE PORT RELIEF | YES |
Features:
- Closed center
- Flow 80-100 l/min
- Rated inlet pressure up to 200 bar
- Maximum pressure at ports A and B up to 250 bar
- Number of spools - 2 or 3 pcs
- Manual control
Applications:
- Agricultural tractors BELARUS, XTZ, UMZ etc.
- Pipelayers ChTZ-URALTRAK
- Forest tractors
- Dozers
OTHER TYPES:
HANJIU Technology supply a variety of mono block and sectional directional control valves: P series, ZTseries, SD series, DCV series, MB series, ZS series, etc. The relief valve and one-way valve can be set up on the valve according to customer requirements. The relief valve can adjust the pressure and the one-way valve prevents the oil from flowing back. The sliding valve of the reversing valve has a function of A, O, Y, Q etc. It can be assembled arbitrarily. The control ways of the directional control valve include manual control, solenoid control, pneumatic control, joystick control, electro-hydraulic control, microswitch control, electric-pneumatic control, cable control, etc.
HANJIU Hydraulic directional control valves are widely used in the hydraulic system of agriculture machinery, forklift trucks, engineering machinery, transport machinery, sanitation machinery, small loaders,tractors..
