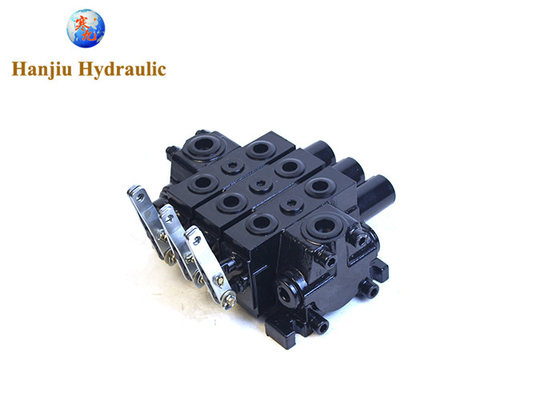

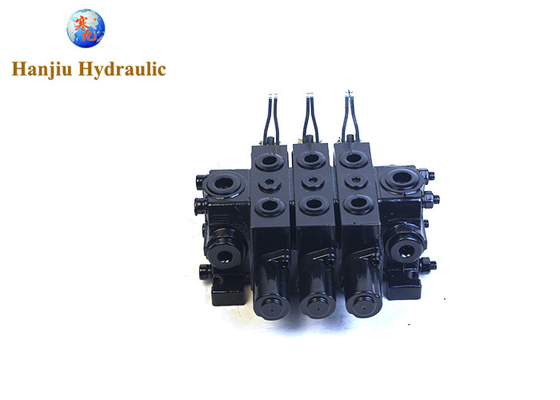

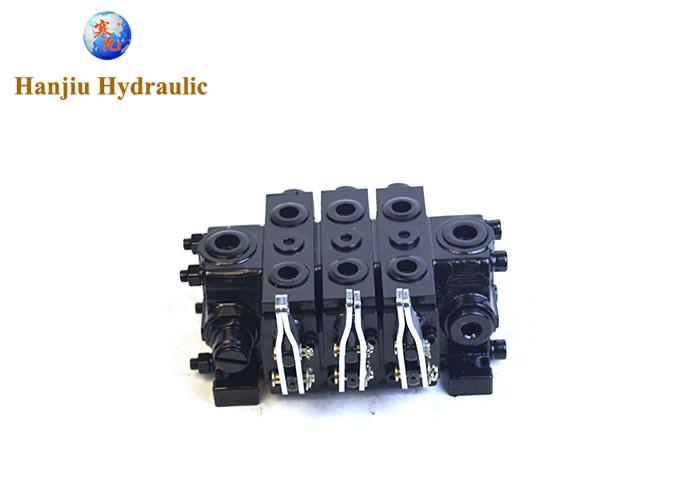

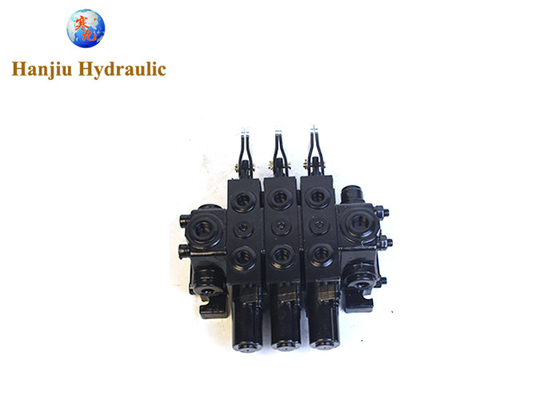

Hydrosila Section Control Valve MPC70 3 Levers 70l/Min

Hydrosila Section Control Valve MPC70 3 Levers 70l/Min
Hydrosila Section Control Valve MPC70 3 Levers 70l/Min Hydrosila Section Control Valve MPC70 3 Levers 70l/Min Hydrosila Section Control Valve MPC70 3 Levers 70l/Min Hydrosila Section Control Valve MPC70 3 Levers 70l/Min

Large Image :  Hydrosila Section Control Valve MPC70 3 Levers 70l/Min

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: mpc70
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Contact the seller to get a quote
Packaging Details: Carton, Box, Pallets
Delivery Time: 25 - 35 work days
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Item: Directional Control Valve Model: Mpc70
Bank: 3levers Flow Rate: 70LPM
Thread: 1/2"BSP Spool: 1 To 8 Sections
High Light:

Hydrosila Section Control Valve

,

Section Control Valve MPC70

,

70l/Min Section Control Valve



hydrosila section control valve MPC70, 3 levers,70l/min,detent control valve



Quick View:

Directional control valves MPC70 are used in hydraulic systems with the flow up to 70 l/min. The sectional design makes the valve flexible and easily adaptable to a variety of applications.
The open center directional valve is designed for hydraulic systems with fixed displacement pump.
Equipped with main relief valve and load check valve in each section.
Parallel hydraulic circuit.
Variety of 3 and 4 positions spools.
Manual control.
High pressure «carry-over» port is avaible..

Specification:

SERIES MPC70
MAX FLOW LPM 70
MAX PUMP FLOW l/min 70
MAX WORKING PRESSURE bar 315
CONSTRUCTION PARALLEL
NUMBER OF SECTIONS 1 TO 10
SPOOL ACTUATION MANUAL, MECHANICAL JOYSTICK, CABLE, PNEUMATIC, HYDRAULIC PILOT
SECTIONAL STYLE YES
SECTIONAL LOAD CHECK VALVE YES
SERVICE PORT RELIEF YES







More series available:

Type Number of sections Nominal flow rate Max. inlet pressure (P) Max. work port press. (A/B)
    l/min bar bar
p40 1-8 45 250 320
p80 1-8 80 250 320
Hssd5 1-8 45 290 320
Hssd11 1-8 75 280 320
zt12 1-8 45 290 320
zt20 1-8 90 280 320
Hsv6 1-3 45 250 320
Hsdv10 1 90 300 350






About the supplier:
Hanjiu is a hydraulic manufacturer and exporter from China. Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We ship to all parts of the world.We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.

Hydrosila Section Control Valve MPC70 3 Levers 70l/Min 0Hydrosila Section Control Valve MPC70 3 Levers 70l/Min 1Hydrosila Section Control Valve MPC70 3 Levers 70l/Min 2





Hydrosila Section Control Valve MPC70 3 Levers 70l/Min 3


 Applications:
- Tractors
- Municipal vehicles
- Motor graders
