Product Details:
Payment & Shipping Terms:
|

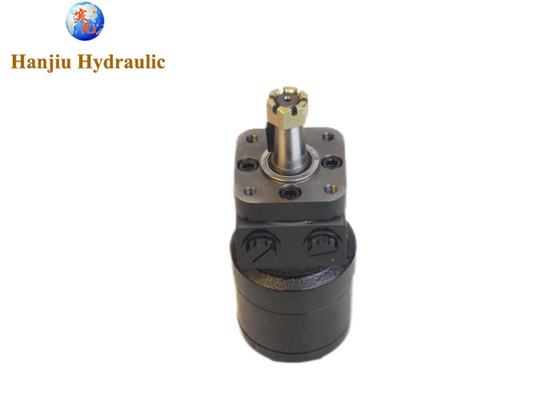

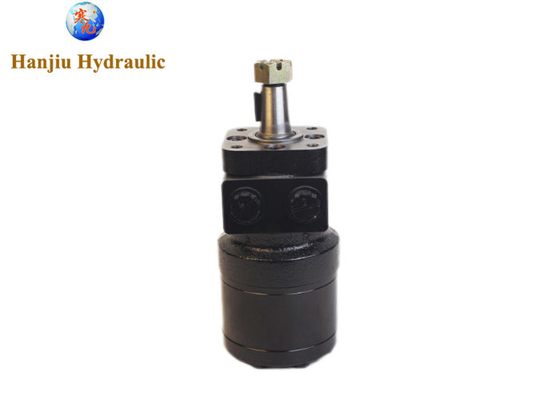

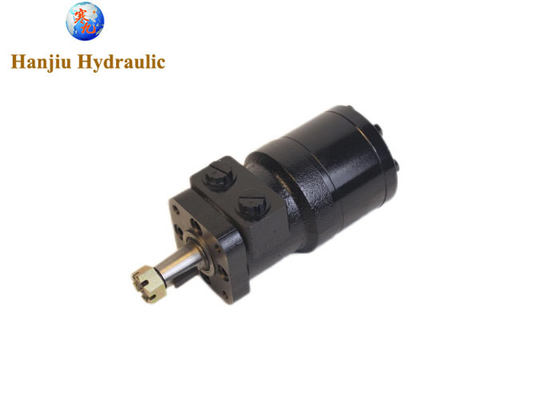

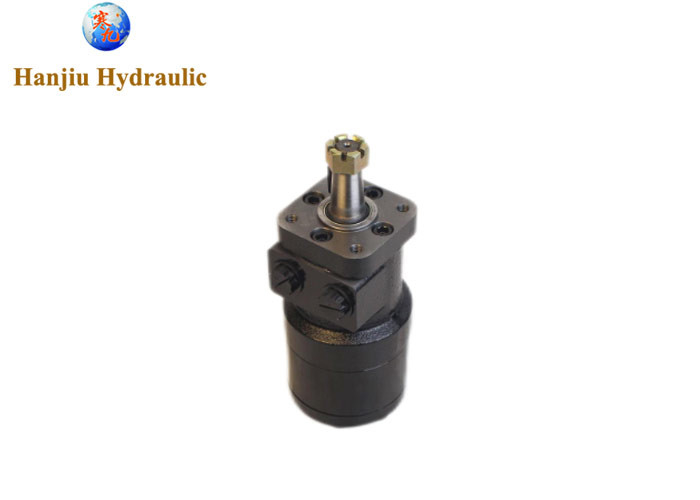

| Type: | Geroler And Gerotor Motor | Model No.: | BMRS250 |
|---|---|---|---|
| Max Speed: | Cont.600/int.750rpm | Max Torque: | Cont.240/int.280N.M |
| Max Output: | Cont.13/int.15kw | Max Pressure: | Cont.17.5/int20mpa |
| High Light: | Wheel Hydraulic Motor TE0230FS250AAFA,Parker Hydraulic Motor TE0230FS250AAFA,BMRS250 Wheel Hydraulic Motor |
||
Replaces OEM Part Numbers:
For Exmark 1-603718, TE0230FS250AAFA
For Parker 1-603718, TE0230FS250AAFA
Fits Models:
Fits Exmark 52" and 60" Turf Tracer floating deck walk-behind (190,000 and newer, without ECS); Viking Hydro Serial No. 90,000-130,000; Turf Tracer Hydro Serial No. 70,000-129,000; 36", 48" and 52" Turf Tracer HP Serial No. 150,000-260,000
| Type | BMRS |
| Displacement | 250CC |
| Shaft | 25.4MM tapered shaft |
| Flange | H4 |
| Port Position | side ports |
| Shaft Seal | High Pressure |
| Drain | Yes |
| Type | BMRS 36 |
BMRS 50 |
BMRS 80 |
BMRS 100 |
BMRS 125 |
BMRS 160 |
BMRS 200 |
BMRS 250 |
BMRS 315 |
BMRS 375 |
|
| displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. |
72 |
100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10 | 7.0 | 6.0 | 5 |
| int. | 9.8 | 11.2 | 15 | 15.0 | 14.5 | 14 | 13 | 9.5 | 9.0 | 8 | |
| Max. pressure drop (MPa) | cont. | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 | |
Hanjiu as a professional hydraulic motor product company, dedicated to users in the pre-sale and after-sales technical support, you buy Hanjiu company's products, within one year of problems can contact us, there will be a special person to receive you, to provide you with technical support. Hanjiu company has been established for more than ten years, the customer service has been all over the world, we have a place in the market with excellent product quality and high cost performance. You are always welcome to contact us.
