Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Charlynn Code: | 109-1012 |
| High Light: | High Torque Hydraulic Motor 109-1012-006,Low Speed Hydraulic Motor 109-1012-006,High Torque Hydraulic Motor 3500 bar |
||

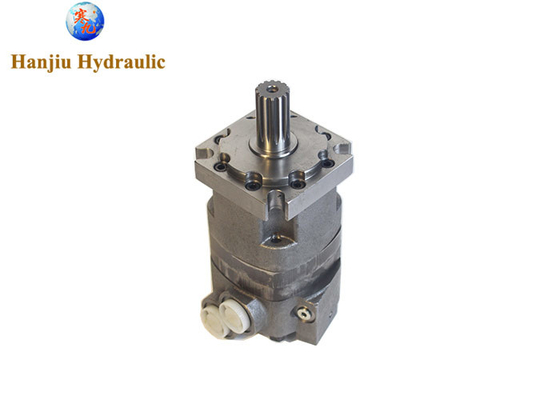

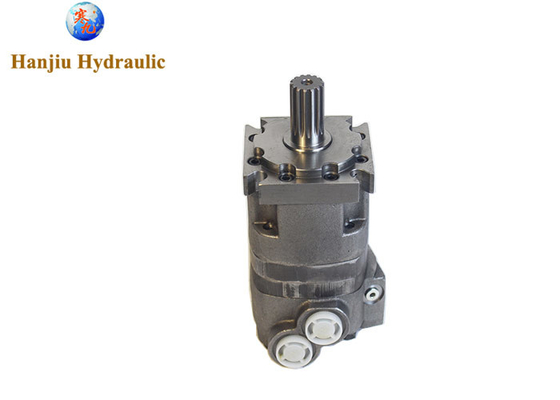

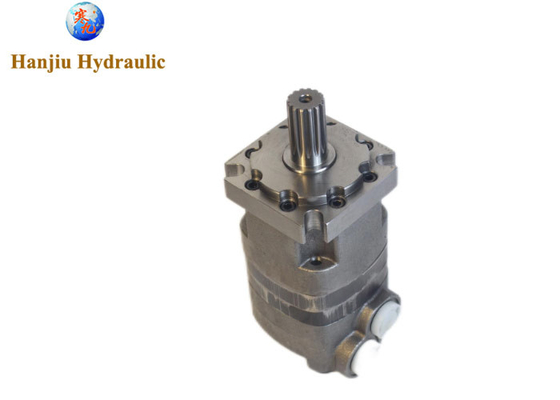

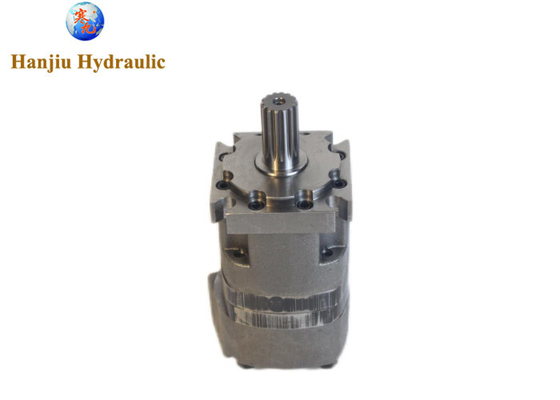

Char-Lynn 4000 Series Low Speed, High Torque (LSHT) Geroler Disc Motor 109-1012-006
Disc Motor
Geroler
Disc Valve
3/4 Split Flange Port
9.9 Cubic Inch Displacement Per Rev
Product details:
| MOUNTING TYPE CODE | B |
| PORT CODE | D |
| PORT TYPE | Split Flange |
| DISPLACEMENT (IN3/REV) | 9.9 |
| SPLINES | 14 |
| SHAFT SIZE & TYPE | 1.25 in 14T Splined |
| RPM [MAX] | 582 rpm |
| MOUNT TYPE | 4 Bolt |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb |
| SHAFT TYPE | Splined |
| MOTOR TYPE | Disc Valve |
| MOUNTING HOLES | 0.58 in |
| FLANGE ORIENTATION | Standard |
| DRAIN | SAE-4 w/Check Valve |
| DUTY | Standard-Duty |
| MOTOR ELEMENT | Geroler |
| SERIES | 4000 Series |
| ROTATION | Standard Rotation |
| FLOW RATE | 25 gal/min |
| PORT SIZE | 3/4- unf |
| PILOT DIAMETER | 4 in |
| PORT LOCATION | Side Port |
| BOLT CIRCLE DIA. | 5 in |
| MOUNTING HOLE SIZE | 0.58 in |
| OUTPUT SHAFT CODE | 3 |
| SEAL MATERIAL | Buna-N |
| INLET PRESSURE [MAX] | 4500 psi |
| CORROSION RESISTANT | No |
| PAINT/PACKAGING | Individual Box |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min |
| SPECIAL FEATURES | None |
| PAINT CODE | black |
| WEIGHT | 57.0 LB |
109-1001-006
109-1002-006
109-1003-006
109-1006-006
109-1008-006
109-1011-006
109-1012-006
109-1013-006
109-1052-006
109-1053-006
109-1054-006
109-1055-006
109-1056-006
109-1057-006
109-1059-006
109-1061-006
109-1062-006
109-1063-006
109-1064-006
109-1065-006
109-1087-006
109-1094-006
109-1100-006
109-1101-006
109-1102-006
109-1103-006
109-1104-006
109-1105-006
109-1106-006
109-1107-006
109-1108-006
109-1109-006
109-1110-006
109-1111-006
109-1112-006
109-1113-006
109-1114-006
109-1115-006
109-1116-006
109-1117-006
109-1118-006
109-1119-006
109-1120-006
109-1154-006
109-1155-006
109-1156-006
109-1157-006
109-1158-006
109-1159-006
109-1160-006
109-1173-006
109-1184-006
109-1185-006
109-1189-006
109-1190-006
109-1191-006
109-1192-006
109-1193-006
109-1194-006
109-1195-006
109-1196-006
109-1203-006
109-1204-006
109-1207-006
109-1208-006
109-1211-006
109-1212-006
109-1215-006
109-1220-006
109-1224-006
109-1225-006
109-1227-006
109-1231-006
109-1233-006
109-1234-006
109-1236-006
109-1238-006
109-1245-006
109-1246-006
109-1247-006
109-1248-006
109-1252-006
109-1254-006
109-1260-006
109-1263-006
109-1264-006
109-1267-006
109-1269-006
109-1278-006
109-1280-006
109-1286-006
109-1287-006
109-1293-006
109-1295-006
109-1296-006
109-1304-006
109-1305-006
109-1309-006
109-1311-006
109-1314-006
109-1316-006
109-1317-006
109-1318-006
109-1337-006
109-1339-006
Hanjiu company sells hydraulic orbit motors and supporting parts, Hanjiu company has a special research line to provide customers with suitable technical performance and cost-effective products. Hanjiu Technology Company has been engaged in the sales and research of hydraulic rail motor related products, and has rich experience in this industry. We will provide you with technical support for up to one year, and we cannot ignore the excellent quality and reasonable price
