Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Flange: | SAE FLANGE | Charlynn Code: | 109-1339-006 |
| High Light: | Gerotor Hydraulic Motor 109-1339-006,char lynn hydraulic motor 109-1339-006,4000 Series Gerotor Hydraulic Motor |
||

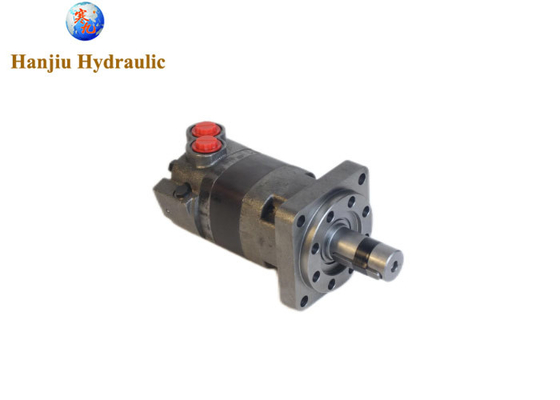

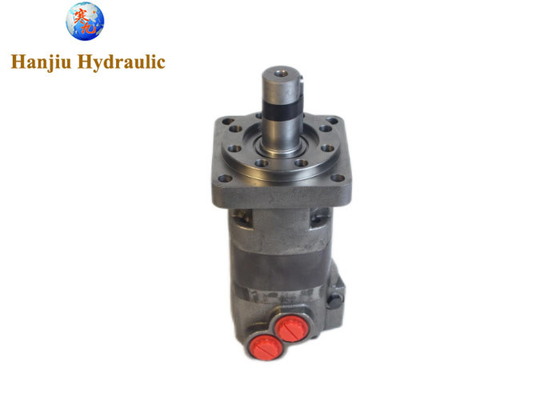

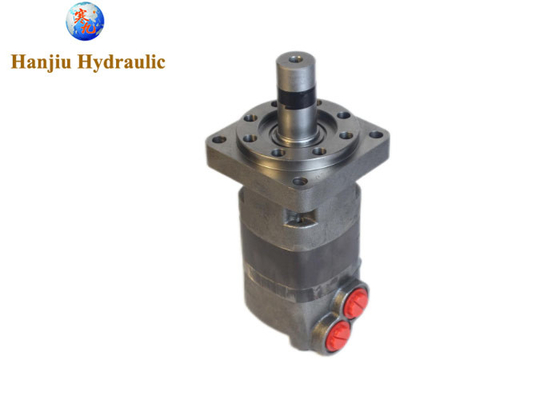

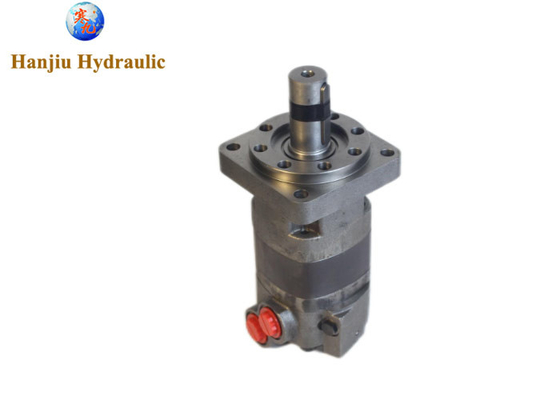

new OEM Char-Lynn 4000 Series; Standard Mount Motor 109-1339-006 Aftermarket
Product details:
| PRODUCT | MOTOR |
| SERIES | 4000 SERIES |
| DISPLACEMENT | 393.9 CM3/R [24.04 IN3/R] |
| MOUNTING TYPE | STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. (SAE C) |
| OUTPUT SHAFT | 40.00 [1.575] DIA. STRAIGHT WITH M12 X 1.75-6H THREAD, 7.955 [.3132] X 11.979 [.4716] WIDE X 69.98 [2.755] STRAIGHT KEY |
| PORTS | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
Applications
Harvesters
Augers
Spreaders
Machine tools
Conveyors
Winches
Turf care equipment
Food processing
Aerial Work Platforms
Anywhere a compact drive with high output torque is needed
Hanjiu has a very rich experience in the production of orbital motors, and has always adhered to the business philosophy of quality first and customer first, which will definitely make you rest assured!
