Product Details:
Payment & Shipping Terms:
|
| Model No.: | 3P120 | Warranty: | 1year |
|---|---|---|---|
| Spool: | 1, 2, 3,4 | Flow: | 120lt |
| Function: | O/Y/P/A | Application: | Front End Loader,Telescopic Handler,Harvester |
| High Light: | Directional Control Valves 3P120,monoblock control valves 3P120,Directional Control Valves non rusting |
||

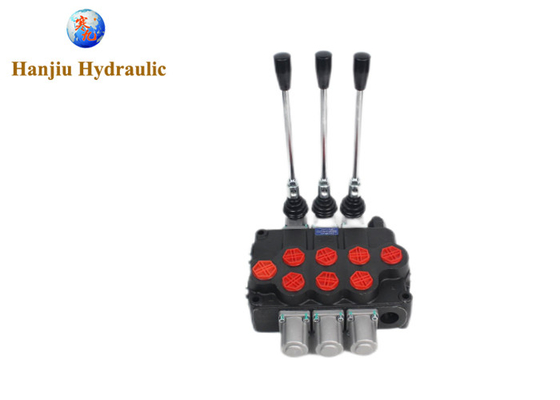

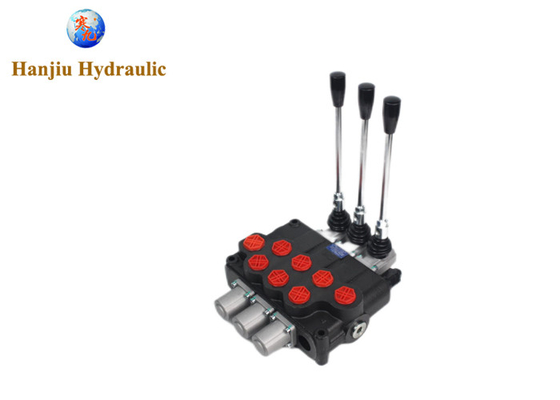

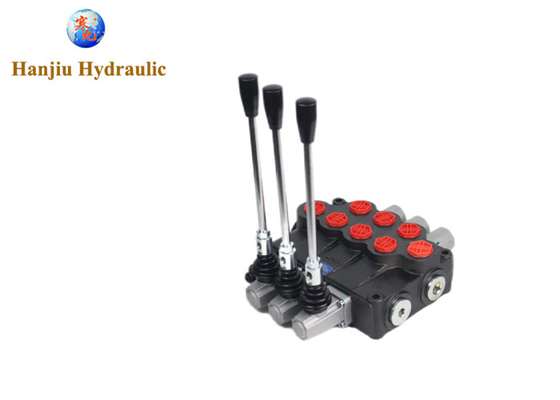

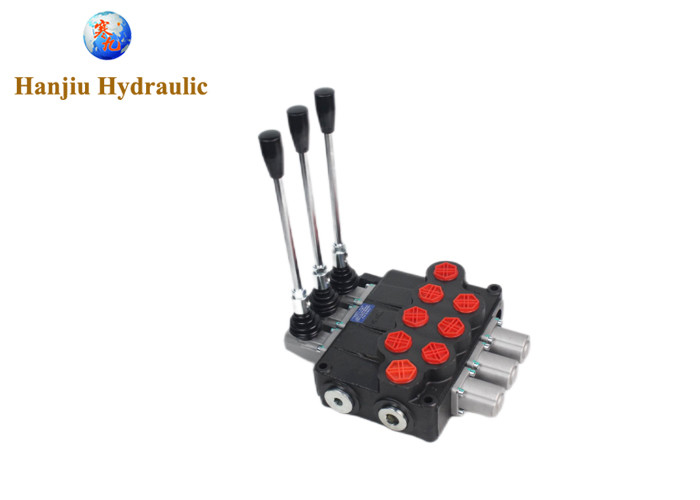

P120 - MONOBLOCK DIRECTIONAL CONTROL VALVES 3P120A1A1A1GKZ1,SPRING RETURN,G3/4 WORKING PORTS
Main Technical Data:
Nominal Flow Rate 120 l/min
Monimal Working Pressure 250 Bar
Max. Working Pressure 300 Bar
Tank Port Pressure 50 Bar Max
Ports P-A-B 1″ BSPP
Ports T-N 1″ BSPP
1 – 4 Spools available
| Monobloc Directional Control Valves | ||||||||
| Code | Sections | Max. Flow | Port Sizes | Max. Pressure | Tank | |||
| NO. | (L/min.) | P | A - B | T | N | (Bar.) | Pressure (Bar.) | |
| 1P120 1 A1 GKZ1 | 1 | 120 | G1” – G1” –G 1" –G 1" G1” – G3/4” –G 3/4" –G 1" |
250 | 50 | |||
| 2P120 1 A1 A1 GKZ1 | 2 | 120 | 250 | 50 | ||||
| 3P120 1 A1 A1 A1 GKZ1 | 3 | 120 | 250 | 50 | ||||
| 4P120 1 A1 A1 A1 A1 GKZ1 | 4 | 120 | 250 | 50 | ||||
Our products adopt advanced rotation and stator parameter design, low starting pressure, high efficiency, good holding force and stable operation. Furthermore, hydraulic mobile control valves are compact and easy to install. In addition to the basic features of the product, our products have the following advantages over similar products. First, imported bearings are adopted to ensure no leakage. Our products are compact and can effectively cut off the fluid in the pipeline so that it does not flow; Second, the product has been phosphated and is not easy to rust. We use a highly dense molecular layer to effectively prevent valve oxidation and increase the durability of the product.Hydraulic mobile control valves is an important series of Hanjiu technology, this series of products have a high cost performance. Based on the concept of production quality first, every product of Hanjiu Technology is extremely durable.
