| Model Number: | TF0240HV080AAAA | Product: | Low Speed, High Torque (LSHT) Motor |
|---|---|---|---|
| Applications: | Aerial Lift | Rotary: | Counter-clockwise |
| Flange: | Wheel Mounting | Shaft: | Tapper Shaft |
| High Light: | Low RPM Hydraulic Motor TF0240HV080AAAA,TF Series Low RPM Hydraulic Motor,corrosion proof low speed hydraulic motor |
||

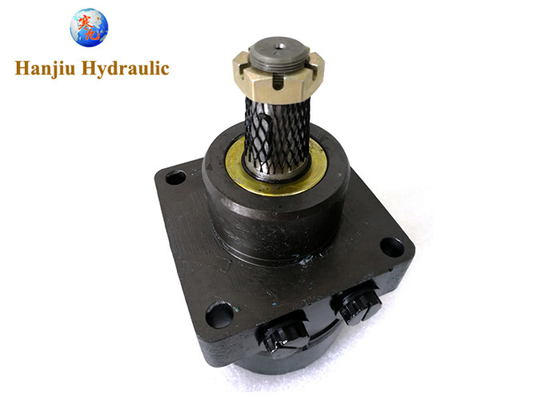

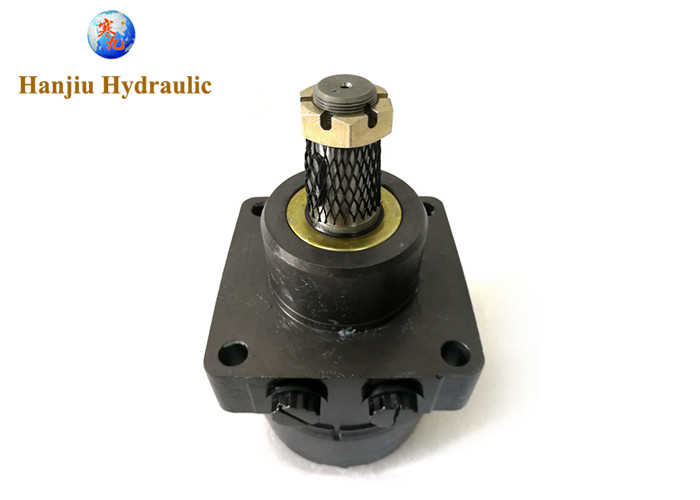

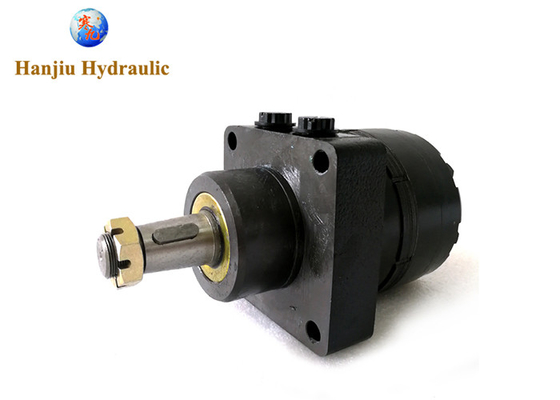

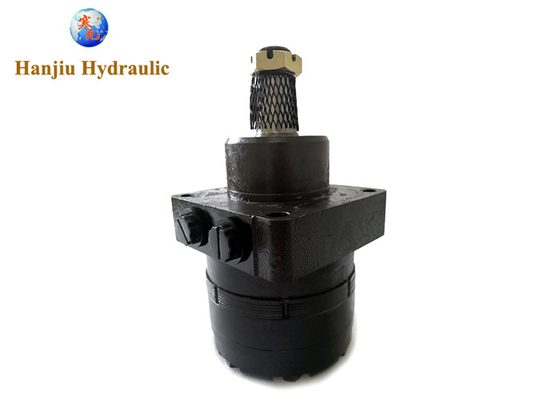

TF Series Low Speed, High Torque (LSHT) Motor TF0240HV080AAAA
Quick view:
| Manufacturer: | Hanjiu |
| Country of origin: | China |
| Material number: | TF0240HV080AAAA |
| Motor series: | TF-Series |
| Basic Motor: | BMER-2 |
| Displacement: | 240 ml/r |
| Mounting Flange: | H |
| Mounting Thread Dimension: | 4-13.5 |
| Shaft Style: | Tapper shaft |
| Shaft Size: | 31.75 mm |
| Shaft Key: | parallel key |
| Port Size: | side port |
| Port Dimension: | 7/8-14UNF |
More Parker TF alternative option may be available for these item, to verify please inquire
