Product Details:
Payment & Shipping Terms:
|
| Type: | Torque Motor | Model No.: | TE0230FS250AAAA |
|---|---|---|---|
| Flange: | Wheel Mount | Shaft: | Taper |
| High Light: | TE0230FS250AAAA hydraulic wheel motor,Hydraulic Wheel Motor 230cm3,TE0230FS250AAAA parker wheel motors |
||
Quick review:

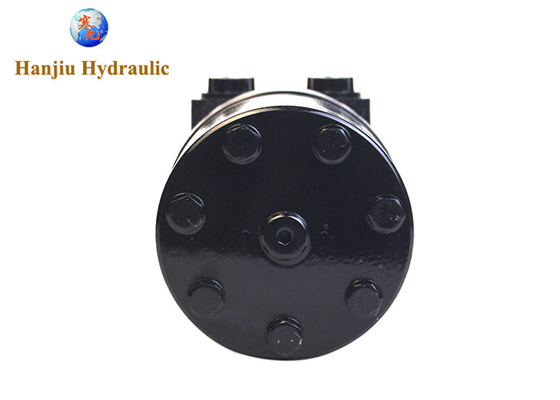

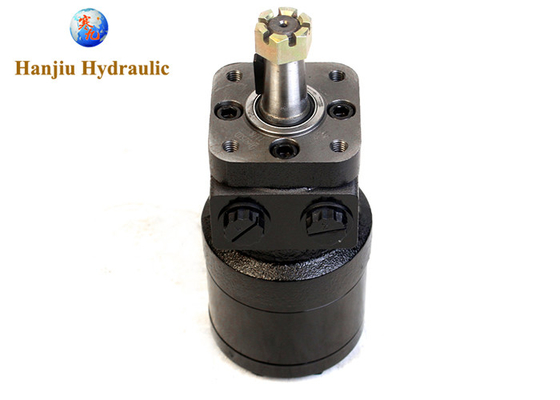

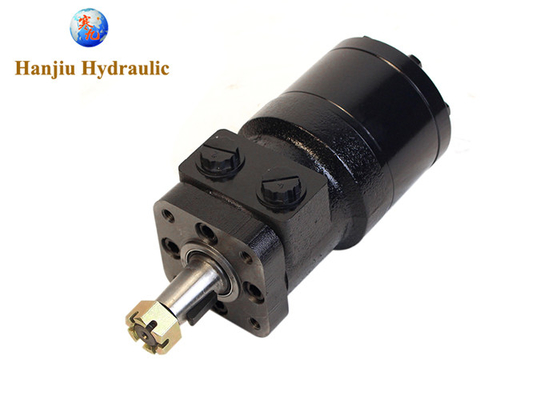

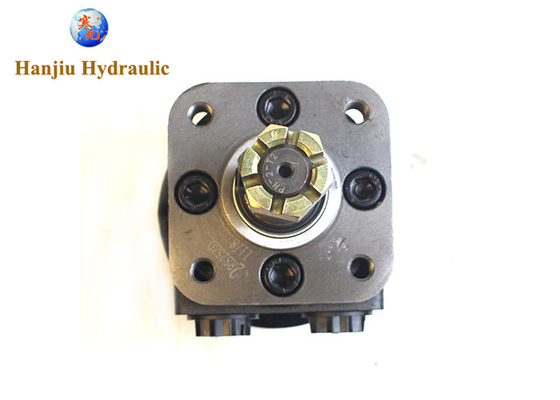

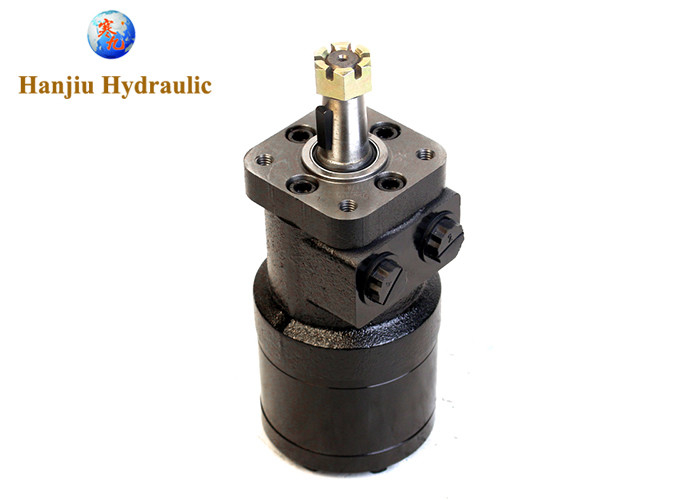

This motor compatibel with Parker TE0230FS250AAAA
This is Parker compatible motor with same form, fit and function
Apply to lown mower and tractor mowers
Here is main specification:
| Specifications | |
| Shaft: | 1" Tapered |
| Rotation: | Standard |
| Displacement (cm3/rev): | 230 |
| Mounting: | 4 Bolt with 3/8-16 UNC |
| Ports: | 7/8-14 SAE |
| Geometric Displacement: | 228 cm3/rev (13.9 in3/rev) |
| Maximum Speed: | 328 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 57 lpm (15 gpm) / 75 lpm (20 gpm) |
| Maximum Torque - Continuous / Intermittent: | 380 Nm (3363 lb in) / 514 Nm (4554 lb in) |

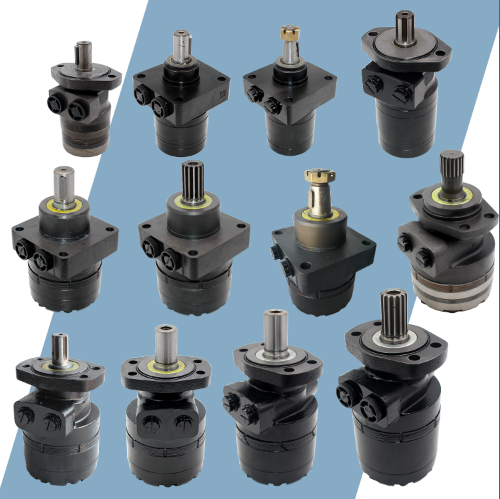

More PARKER Low speed high torque compatible motors availalbe like :
TB
TC
TJ
TE
TF
TG
TK
About Hanjiu:
From China, Hanjiu produce variety of low speed high toqrue hydraulic motors to suit range of brands & applications, in more competitive way.
We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Contact us to talk work together.
Tel: 86-311-68123061
Fax: 86-010-80115555-568844
