Product Details:
Payment & Shipping Terms:
|
| Type: | Gerotor Motor | Model No.: | BMPH125 |
|---|---|---|---|
| Speed: | Cont.490/int.615rpm | Torque: | Cont.236/int.290 Nm |
| Max Power: | Cont.10/int.12KW | Max Flow: | Cont.60/int.75LPM |
| High Light: | Eaton Hydraulic Motor 1800 Psi,BMPH125 Eaton Hydraulic Motor,BMPH125 Hydraulic drive Motor |
||

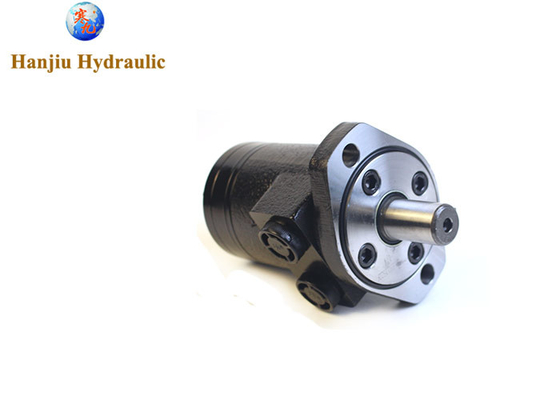

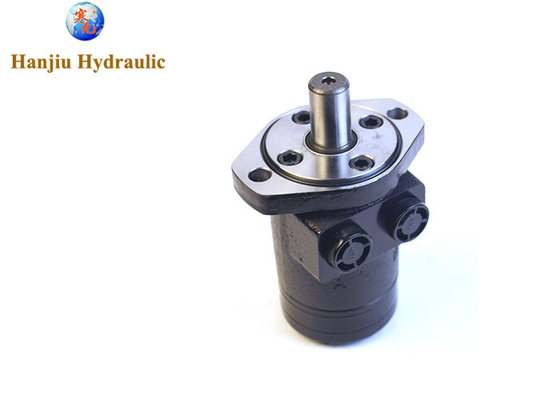

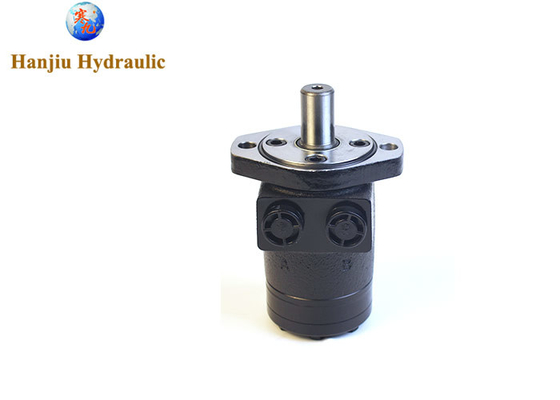

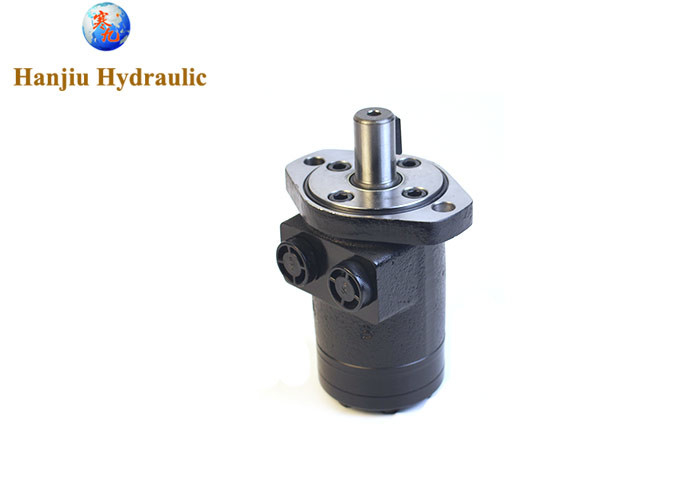

EATON MOTOR "H" SERIES: 2-BOLT FLANGE, 5.9 CID, 1/2 NPT PORTS, 1" WOODRUF KEY SHAFT, 1800 PSI
Product details
type code:BMPH-125-H2-K-P
- Displacement: 125cc
- Flange :2bolts flange,82.5mm pilot
- Shaft: woodruff key Ø25.4mm
- Ports: 1/2-14NPT
- Drain port:7/16-20NPT
Specification:
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 |
|
Replaces the following brands and model numbers
At present, there are many hydraulic motor manufacturing companies on the market, Hanjiu is one of the more famous, Hanjiu has more than ten years of manufacturing experience since its establishment, it has invested in the introduction of German advanced technology, there are three complete production lines, the quality of the hydraulic motor manufactured is excellent. Moreover, among similar products, the price of hydraulic motors produced by Hanjiu is also very reasonable, it has always adhered to the business philosophy of quality and customer first, and insists on providing good products with high quality and low price for every customer
