| Product Name: | Hydraulic Gerotor Motors | Displacement: | 315CC |
|---|---|---|---|
| Applications: | Agricultural Machine, Lifting Equipment | Replacement: | Hanjiu BMRS = DS, Eaton S,T Series , M+S MR Etc |
| Oil Temperature: | Normal-35℃-80℃ | Shaft: | Cylindrical Shaft φ25.4mm,key Shaft |
| High Light: | 315CC Low Speed High Torque Motors,315CC Char Lynn S Series Motor,Spline Shaft Char Lynn S Series Motor |
||

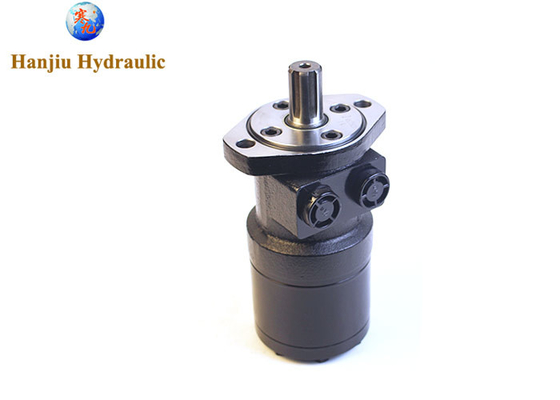

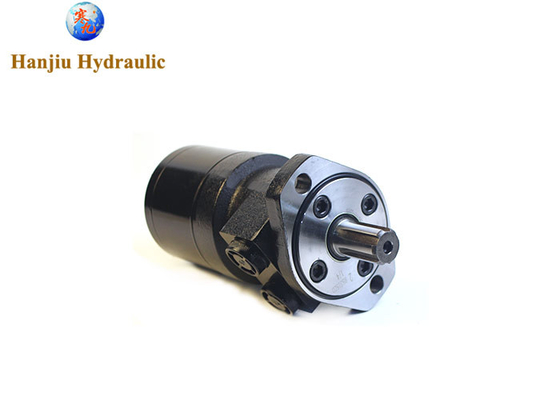

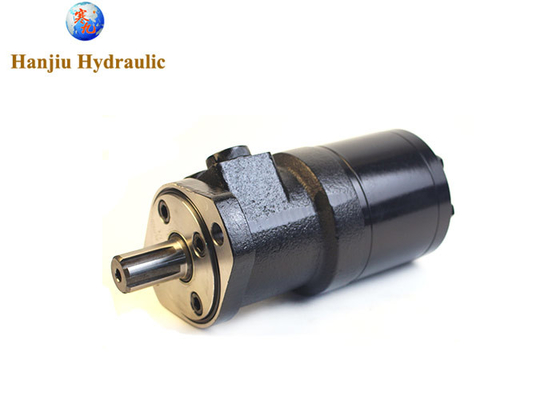

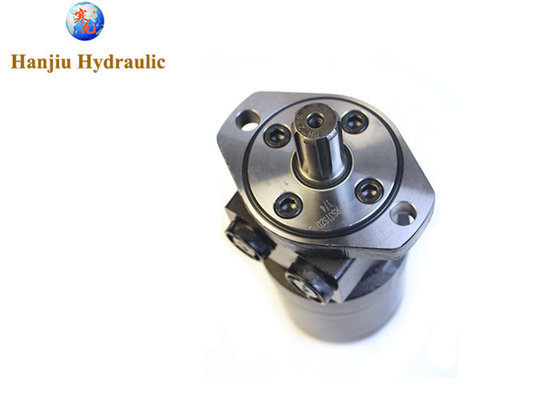

Low Speed High Torque Motors BMRS Motors Charlynn S Series motor, SPLINED SHAFT, NPT PORTS
Features:
Technical Specifications for BMRS-315 H2-S-P:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMRS 36 |
BMRS 50 |
BMRS 80 |
BMRS 100 |
BMRS 125 |
BMRS 160 |
BMRS 200 |
BMRS 250 |
BMRS 315 |
BMRS 375 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
The rail hydraulic motor adopts a column-mounted stator and rotor design using roller bearings and track dynamics, which has higher oil distribution accuracy and mechanical efficiency. Rolling bearing design, can withstand higher lateral force, imported shaft seal design, withstand high back pressure, can be used in series and parallel with forward and reverse conversion direction is convenient, and the speed is stable. It has a variety of oil ports, output shafts, flanges and other connection forms.
Shijiazhuang Hanjiu Technology Co., Ltd., which is a professional manufacturer specializing in the production of BM series cycloid hydraulic motor and BZZ steering gear, its factory specializes in designing and producing any type of motor and steering gear required by customers, from large to small, from low displacement to high displacement. It can also replace Danfoss, Eaton, M+S series models.
Rail hydraulic motors are widely used in agricultural machinery, fishery machinery, plastic industry, mining and construction machinery, transmission and lifting equipment, etc. Ideal for low load applications such as plastic injection molding machines, cleaners, lawn mowers, winches, conveyors, slewing devices, cleaner drives, augers, cutters, lawn mowers and chippers. High-speed rotation is stable, small and lightweight, can be directly connected to the working machine, adapt to a variety of Iowa speed heavy-duty facilities.
Shijiazhuang Hanjiu Technology Co., Ltd. adheres to the tenet of integrity first and quality first. From the position of employees to raw materials, to factories, from parts processing and assembly consulting to product delivery, there is a relatively complete product quality system. And through CE certification, committed to establishing an international well-known brand, looking forward to long-term cooperation with more orbital hydraulic product demanders.
