| Item: | Sectional Valve | Model: | SD8 |
|---|---|---|---|
| Bank: | 8 Bank | Flow Rate: | 80 LPM |
| Control: | Joystick And Manual | Max. Pressure: | 315 Bar |
| High Light: | Walvoil Replacement Sectional control valve,2 Joystick Sectional control valve,Walvoil Sectional control valve |
||

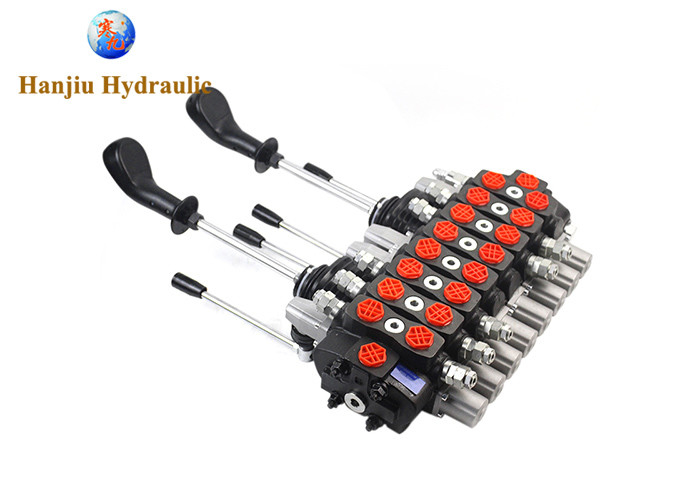

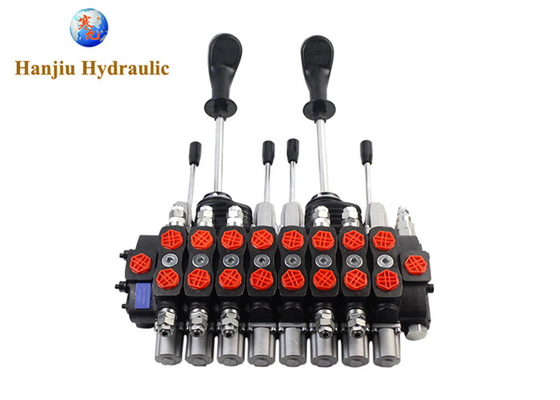

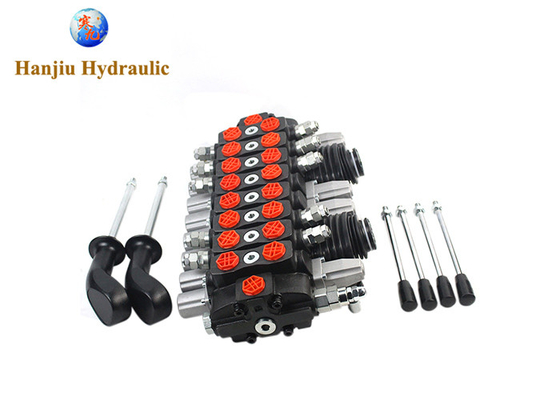

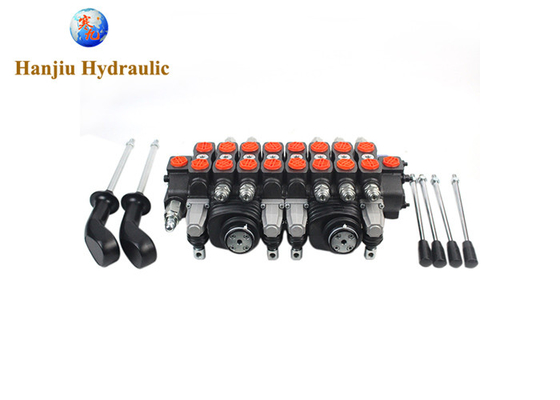

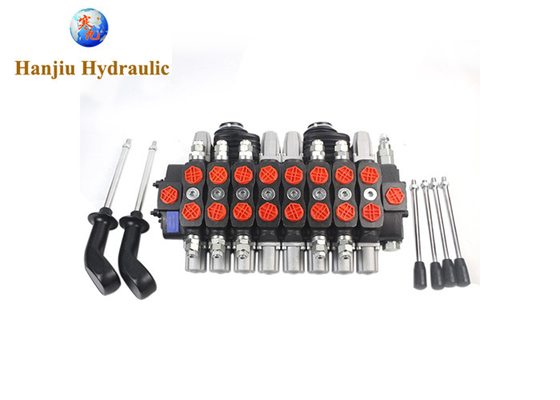

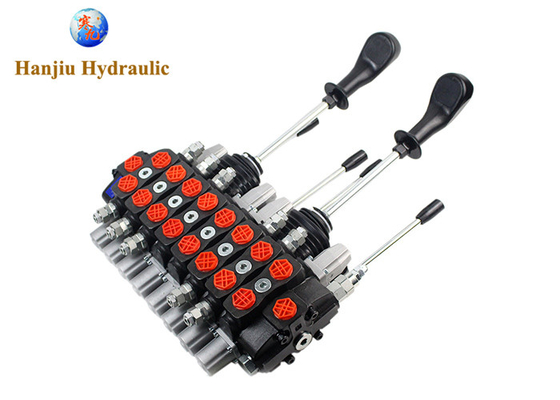

SD8/8 Sectional control valve Walvoil replacement, 4 manual, 2 joystick
Quick View:/
Hanjiu provide excellent alternative for the Walvoil Sectional control valve/ directional valve SD8/8.
TECHNICAL DATA
Nominal flow: 90 l/min (23.77 gpm)
Max pressure: 315 bar
Relief valve 1:
Std. setting: 300 bar
Ports dimensions:
P, A, B = 1/2" G
T = 3/4"G
Max back pressure (T port): 25 bar
N° working sections: 8
Relief valves 2 (w. sections):
Std. setting: 250 bar
Check valves 3 (w. sections):
Cracking pressure: 0.5 bar
Seals material: NBR 70 Sh
Fluid: Mineral base oil
Fluid temperature range: -20 ÷ 80 °C (-4 ÷ +176°F)
Fluid viscosity: 15 ÷ 75 mm2/s
Spool stroke:
pos.1 = +7 mm (0.275 in)
pos.2 = -7 mm (-0.275 in)
Features:
| Main pressure relief valve and a load check valves fitted on every working section | Yes |
| Available with parallel, tandem or series circuits | Yes |
| Optional carry-over port | Yes |
| A wide range of ports and circuit valves | Yes |
| Intermediate sections for several types of circuit | Yes |
| Potential for manual, pneumatic, hydraulic, electro-hydraulic and remote flexible cable spool control kits | Yes |
