| Model No.: | HSSD8 | Warranty: | 1year |
|---|---|---|---|
| Spool: | 8 Spools With Joysticks | Flow: | 90liters |
| Function: | O/Y/P/A | Application: | Wood Logger Machines,forestry Machines |
| High Light: | 24 Gpm Hydraulic Sectional Valve,Hydraulic Sectional Valve SD8,24 Gpm Hydraulic Control Valve |
||

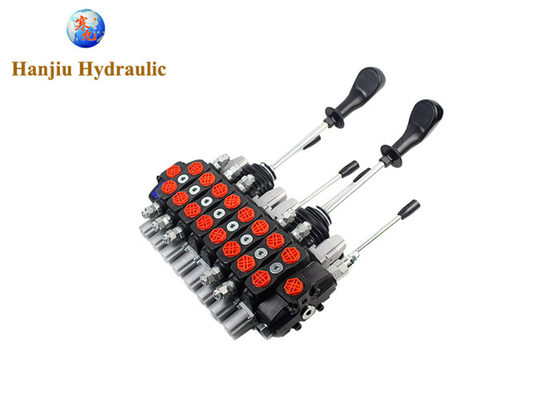

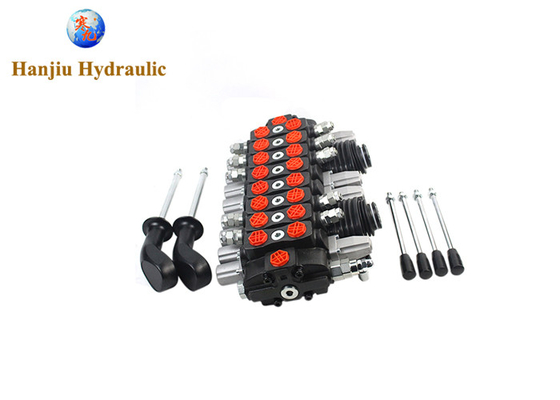

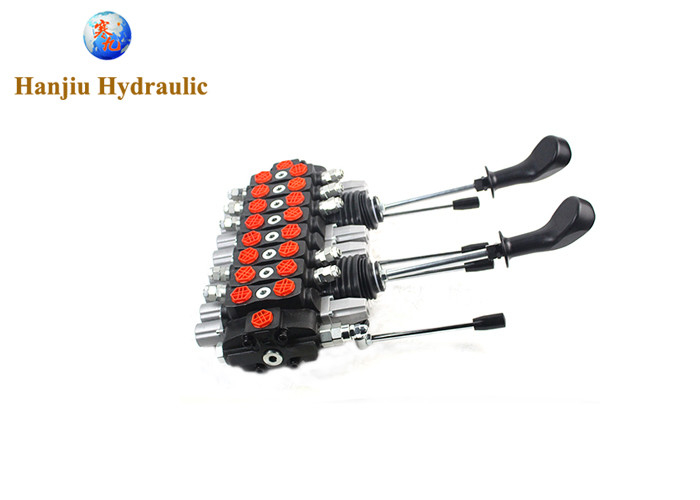

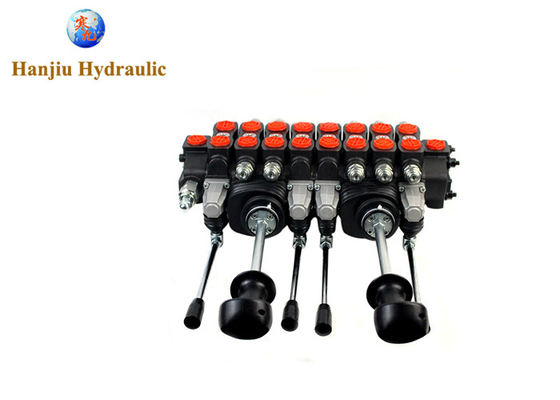

24 Gpm Hydraulic Sectional Valve SD8 with Joysticks manual hydraulic control valve
| Suitable Media | Hydraulic Oil |
| Connection diameter | 3/4 inch |
| Manufacturer number | HSSD8 |
| Spool Count | 8-levers |
| Valve Operation | Manual control |
| Maximum Pressure | 4500 psi |
| Brand | Hanjiu Hydraulic |
| Maximum Flow Rate | 24 gpm |
| Port size | G3/4 |
| control | 2-Joystick valves |
The hydraulic valves has two types of control:
Two 4 position joysticks - up/down/right/left + neutral position.
Four levers on a spring - each of them operates one section. Each lever returns to the neutral position as soon as the hand is removed from it.
- Number of sections: 8
- Maximum flow: 90l/min
- Maximum working pressure: 250 bar
- Safety valve set to: 180 bar
- Individual regulation of pressures on four sections
Hanjiu technology hydraulic valves are used by many foreign manufacturers of agricultural, construction and industrial equipment
High-quality materials used in production guarantee long and trouble-free operation
Robust and compact sectional design
Easy assembly
It has the possibility of expansion
Equipped with a safety valve
The ideal distributor for forestry trailers
it has 4 additional valves used to regulate the pressure on individual sections.
