Product Details:
Payment & Shipping Terms:
|
| Product: | Hydraulic Motor | Model No.: | BMER-2-230-MD-T4-R-B |
|---|---|---|---|
| Size: | 230 Ml/r | Flange: | 4 Bolt Magneto |
| Port: | G 1/2 | Shaft: | Cone Shaft 31.75mm |
| Rotation: | Reverse Timed | Color: | Black |
| Feature: | Replace Parker TG Series | More Size: | 125 - 750 Ml/r Available |
| High Light: | Parker Hydraulic Motor Black,230 ml/r Parker Hydraulic Motor,BMER-2-230-MD-T4-R-B |
||

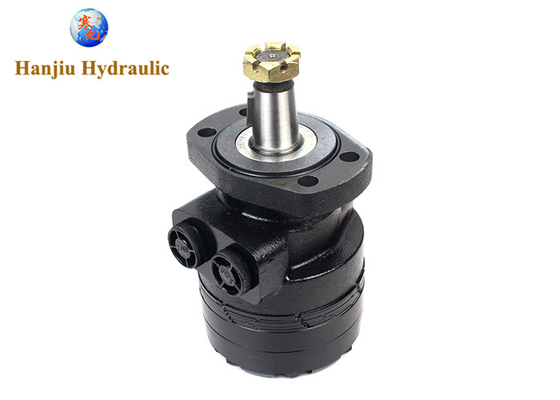

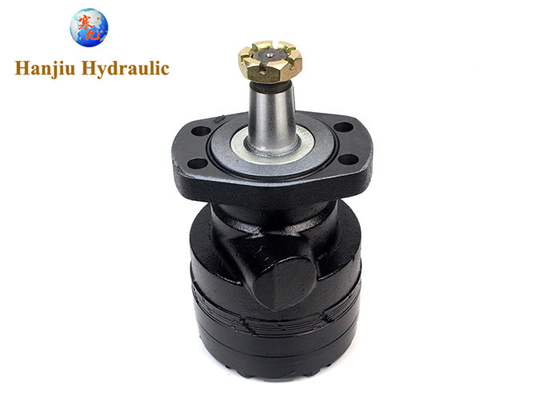

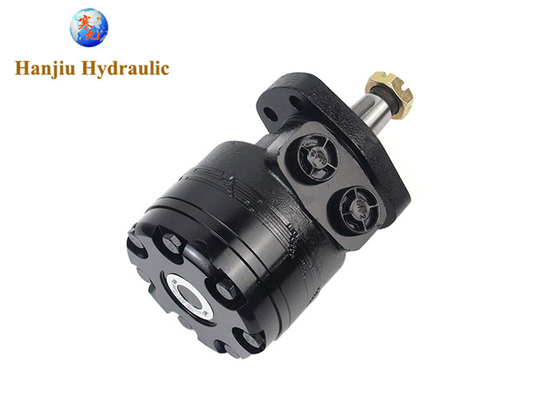

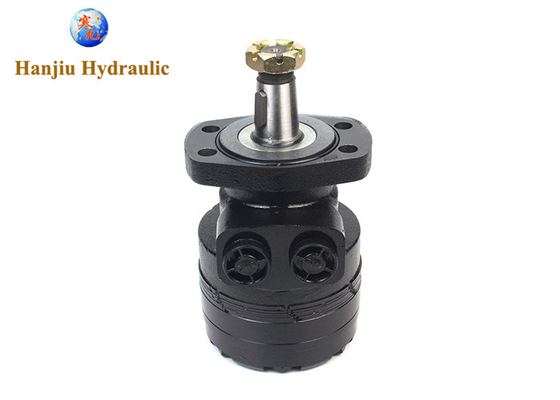

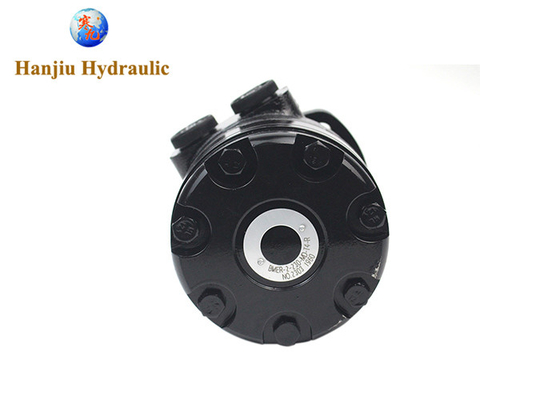

BMER-2-230-MD-T4-R-B Parker TG series replacement Hydraulic Motor
Quick review:
Hanjiu BMER = Parker TG
| Product | Hydraulic Motor |
| Model No. | BMER-2-230-MD-T4-R-B |
| Size | 230 ml/r |
| Flange | 4 Bolt Magneto |
| Port | G 1/2 |
| Shaft | Cone shaft 31.75mm |
| Rotation | Reverse Timed |
| Color | Black |
| More size |
125ml/r,160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 300 ml/r, 350 ml/r, 375 ml/r 400 ml/r, 475 ml/r, 540 ml/r, 650 ml/r, 750 ml/r |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
Dimention:
More BMER series to match Parker TG series
More Parker replacement motor available:
More displacement, flange and shaft versions available:
Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
