Product Details:
Payment & Shipping Terms:
|
| Model No.: | 5P100 | Warranty: | 1year |
|---|---|---|---|
| Spool: | 1, 2, 3,4,5,6,7 | Flow: | 100 Liters |
| Function: | Double Action Closed Center | Application: | Front End Loader,Telescopic Handler,Harvester |
| High Light: | 100 liter hydraulic directional control valve,monoblock hydraulic directional control valve |
||

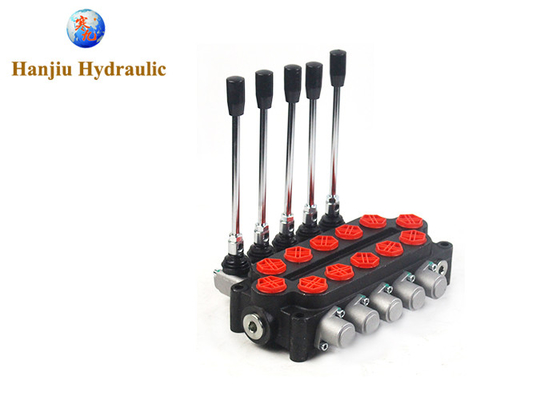

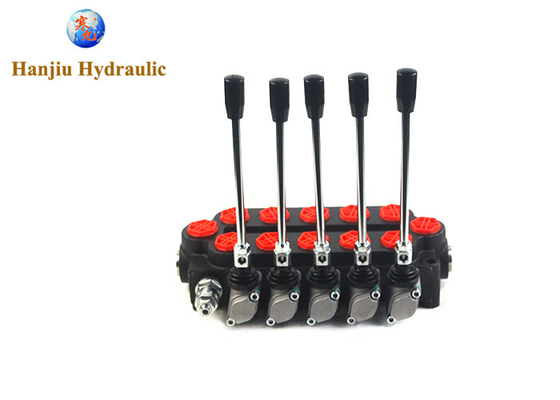

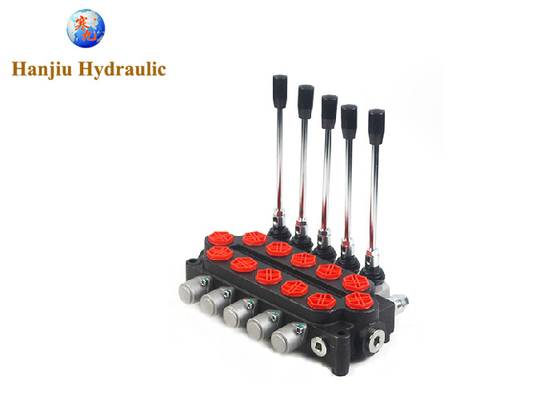

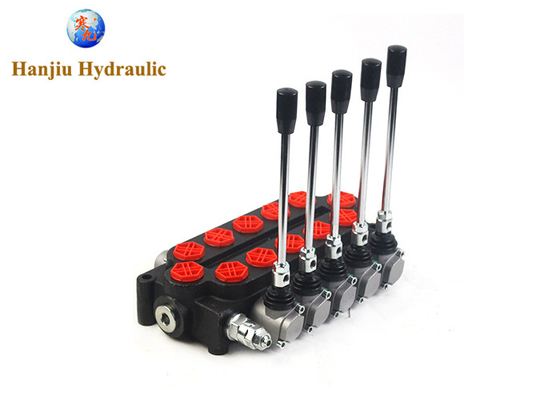

100 Liter Hydraulic Monoblock Control Valve 5P100 with 5 Spools G3/4 Open Center high pressure valve
Product details
| Nom. Pressure(Mpa) | Max.Pressure(Mpa) | Nom.Flow rate(L/min) | Max.Flow rate (L/min) | Back Pressure(Mpa) | hydraulic oil | ||
| Tem.range(ºC) | Visc.rang(mm²/S) | filtrating accuracy(um) | |||||
| 20 | 25 | 100 | 100 | ≤1 | -20~+80 | 10-400 | ≤10 |
The hydraulic direction control valve Р100 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems of mobile machines (electrical and diesel forklifts, excavators, auto-cranes, etc.).
As a highly complex operating system, the hydraulic system requires a bridge to connect and control the components. Only through continuous operation and control can the excellent functions of the hydraulic system be better played. The hydraulic directional control valve is such an important existence. It can control the interruption or connection of the oil circuit in the hydraulic system, so that the hydraulic system can be more flexible and changeable, and the flexibility and applicability of the hydraulic system can be improved.
Because the hydraulic directional control valve is so powerful, it needs excellent quality to protect it.
Since the hydraulic directional control valve is so important, is it difficult to buy a high-quality hydraulic directional control valve? The answer is difficult. But when you meet HANJIU TECHNOLOGY, everything becomes very simple.
Why do you say that? Because the high-quality hydraulic components you want are all available at HANJIU TECHNOLOGY, you can buy high-quality products with your eyes closed without any consideration. The hydraulic market is now unprecedentedly high. There are countless brands and well-known brands for a product, and of course there are some fake and inferior products mixed in. If you are buying from HANJIU TECHNOLOGY, you don’t need to worry, because HANJIU TECHNOLOGY has been dedicated to making high-quality hydraulic components for more than ten years. If customers choose our HANJIU TECHNOLOGY products, we must live up to their trust.
As an explosive product of HANJIU TECHNOLOGY, the hydraulic directional control valve is widely used in many industries, agriculture, and manufacturing industries, especially our hot-selling products-1 spool hydraulic integral valve and 3 spool hydraulic unit valve. These two ace hydraulic directional control valves have their own advantages, you can choose the right type according to your actual needs.
