Product Details:
Payment & Shipping Terms:
|
| Type: | Orbital Motor, Hydraulic Motor | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | BMK2-200-E6-G-SU | Displacement: | 200ml/r |
| Flange: | 4 Bolts,oval Flange | Shaft: | 31.75mm Key Shaft |
| Port Size: | 7/8-14UNF O-RING | Drain Line: | 7/16-20UNF |
| High Light: | bmk2 eaton char lynn hydraulic motor,2k eaton char lynn hydraulic motor,2k eaton char lynn motor |
||

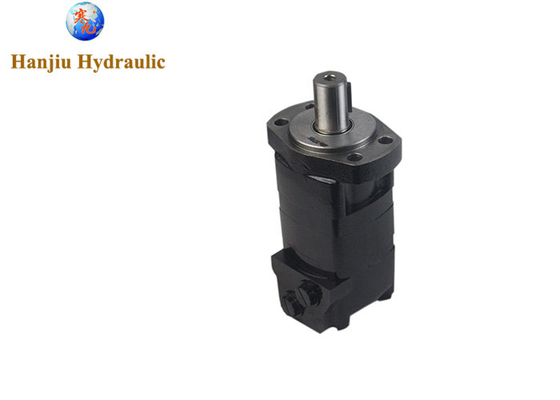

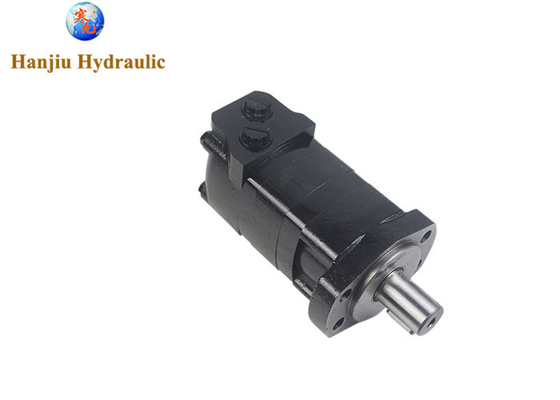

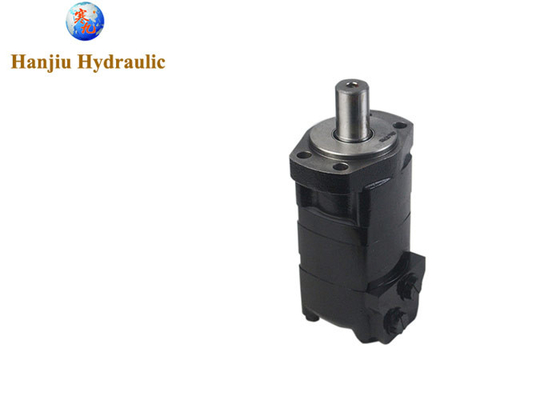

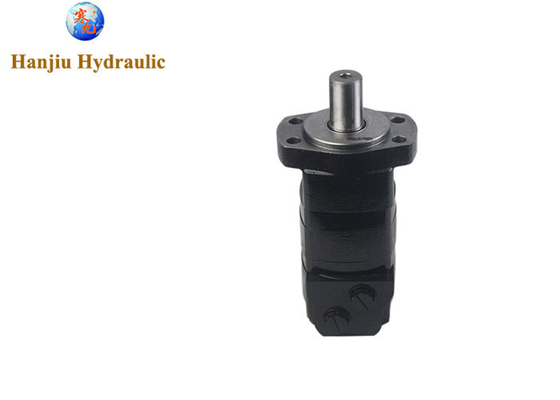

BMK2 Hydraulic Motor Char-Lynn eaton 2K motors,200cc 106.4mm oval flange,31.75mm key shaft
Quick review:
| order code:BMK2-200-E6-G-SU |
| Output volume (cc/rev): 200cc |
| Shaft Ø (mm): 31.75mm,key shaft |
| max r.p.m.: 577 |
| Torque max. (Nm): 665 |
| Pressure difference (bar): 310 |
| Volume flow max. (l/min): 115 |
| Shaft seal version: Standard |
| Ports threads: 7/8-14UNF O-RING |
| Leakage oil connection: 7/16-20UNF |
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Measurement:
More Char-lynn version hydraulic motors available:
About Hanjiu:
From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
