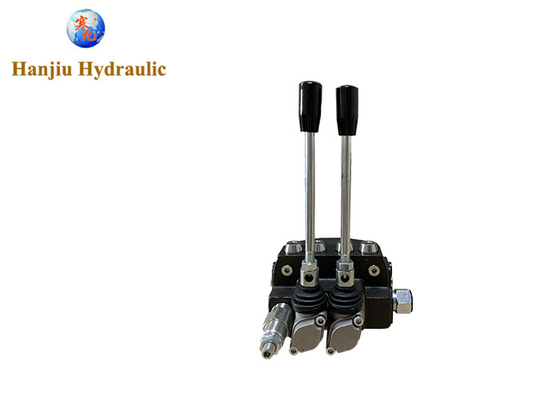

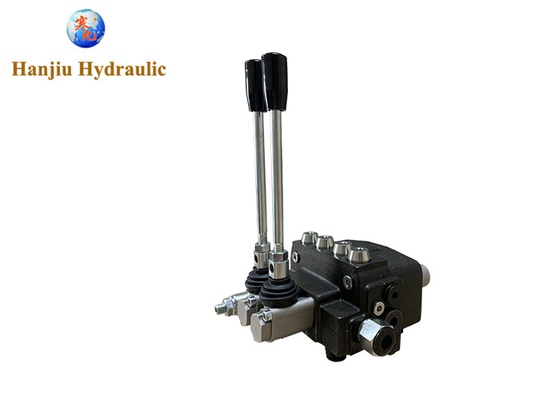

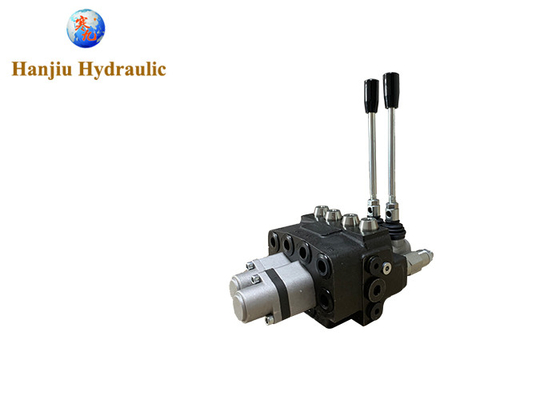

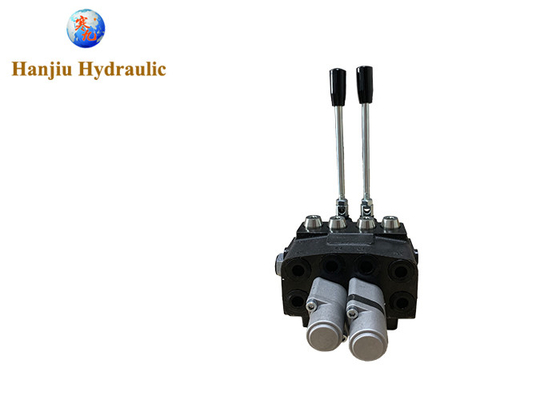

Front Loader Hydraulic Monoblock Directional Control Valve Hsdm45 45 Liters 2 Spools G1/2 Port Threads

Large Image : Front Loader Hydraulic Monoblock Directional Control Valve Hsdm45 45 Liters 2 Spools G1/2 Port Threads

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	hsdm45

Payment & Shipping Terms:

Minimum Order Quantity:	30 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C, T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Model No.:	P45	Warranty:	1 Year
Spool:	2 Banks	Flow:	45 L/min
Spool Function:	O/Y/A	Oil Ports:	G3/4,G1/2
Highlight:	front loader monoblock directional control valve , 45 liters monoblock directional control valve , hsdm45 monoblock hydraulic directional control valve

front loader hydraulic monoblock directional control valve HSDM45, 45 liters, 2 spools ,G1/2 port threads

Nominal flow rate	45L/min	11.8US GPM
Operating pressure (max)	250bar	3600psi
operating range	15 ~ 75 mm2/s	15 ~ 75 cst
Viscosity/min	12 mm2/s	12 cst
Viscosity/max	400 mm2/s	400cst
Ambient temperature range	-40° ~ 80°C	-40° ~ 176°F
Structure	monoblock: 1~7sections

PORTS THREAD
MAIN PORTS	BSP	OPTIONAL	UN-UNF	METRIC
Inlet P	G 3/8	G 1/2	3/4 – 16 (SAE 8)	M18x1,5
Ports A and B	G 3/8	G 1/2	9/16 – 18 (SAE 6)	M18x1,5
Outlet T	G 3/8	G 1/2	3/4 – 16 (SAE 8)	M18x1,5

Front Loader Hydraulic Monoblock Directional Control Valve Hsdm45 45 Liters 2 Spools G1/2 Port Threads 0

Front Loader Hydraulic Monoblock Directional Control Valve Hsdm45 45 Liters 2 Spools G1/2 Port Threads 2
