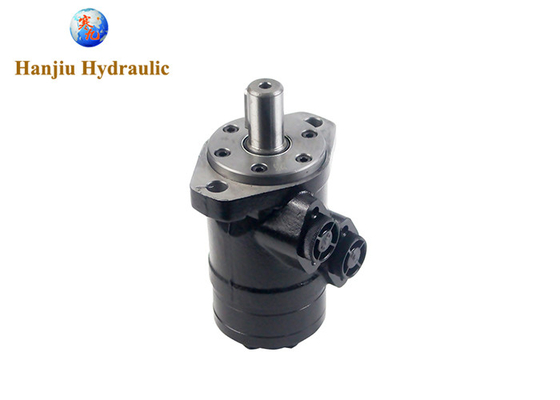

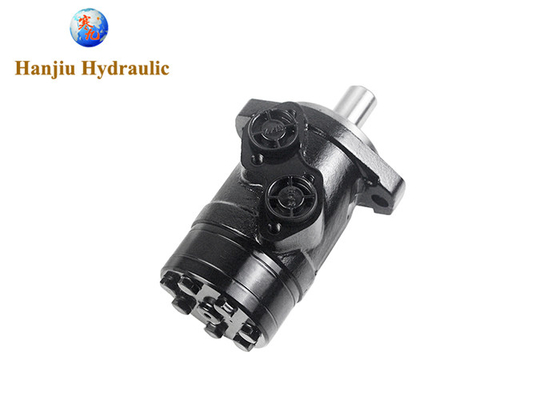

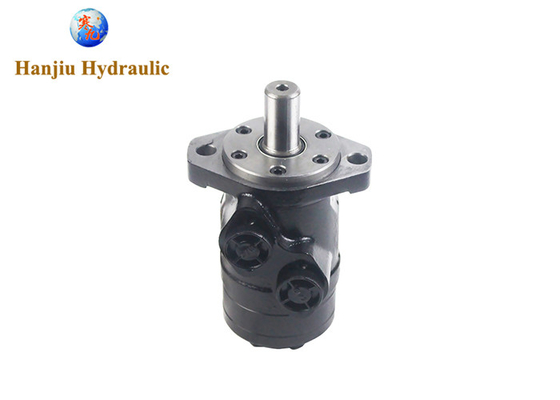

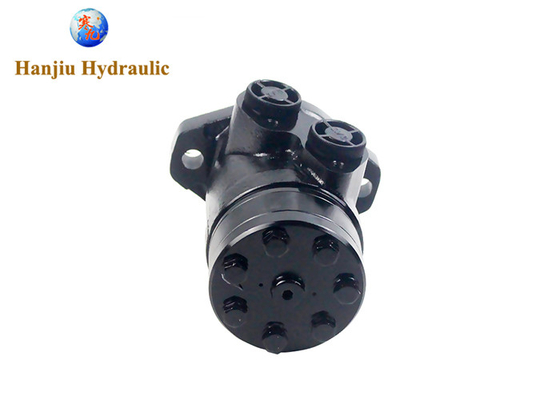

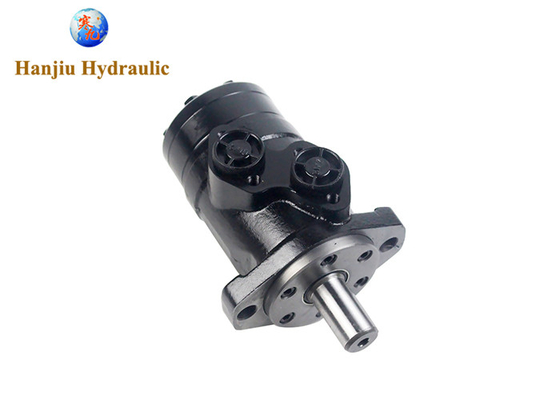

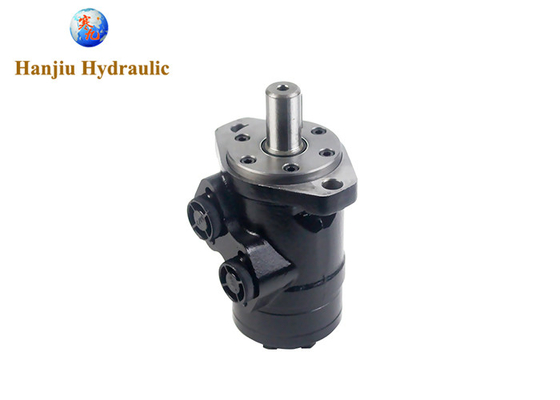

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port

Name: Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port
Brand: Hanjiu
SKU: BMP-160-2-A-D
Price: 42 USD
Availability: InStock
Rating: 4.7 (200 reviews)

Large Image : Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	ISO9001
Model Number:	BMP-160-2-A-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	42 usd/pc
Packaging Details:	Standard export package
Delivery Time:	25 - 35 working days
Payment Terms:	T/T
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Item:	Orbit Hydraulic Motor	Model No.:	BMP-160-2-A-D
Displacement:	160 Ml/r	Flange:	2 Bolt
Shaft:	25mm	Port:	G 1/2
Rotation:	Left And Right	Speed:	383 / 475 Rpm
Torque:	302 / 370 / 434 Nm	Flow:	60 / 75 Lpm
High Light:	bmp series orbit hydraulic motor , 1 inch shaft orbit hydraulic motor

Quick Review:

BMP Series Orbit Hydraulic Motors,

160ml/r,

SAE 2 bolt,

25mm shaft,

1/2 BSPP port

Features:

This motor can replace Danfoss OMP, M+S MP, Eaton Charlynn H,S,T series

Specification:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port 0

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port 1

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port 2

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port 3

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port 4

More Hydraulic Orbital Motor available:

Bmp Series Orbit Hydraulic Motors 160ml/R Sae 2 Bolt 25mm Shaft 1/2 Bspp Port 5

About Hanjiu:

From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
