BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port

Name: BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port
Brand: Hanjiu
SKU: BMRS-250-H2-S-S
Price: 42 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Large Image : BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	ISO9001
Model Number:	BMRS-250-H2-S-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 units
Price:	42 usd/pc
Packaging Details:	Standard export package
Delivery Time:	25 - 35 working days
Payment Terms:	T/T
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Item:	Orbit Hydraulic Motor	Model No.:	BMRS-250-H2-S-S
Displacement:	250 Ml/r	Flange:	2 Bolt
Shaft:	1'' 25.4mm	Port:	7/8-14 O-ring
Rotation:	Left And Right	Speed:	240 / 300 Rpm
Torque:	390 / 490 / 640 Nm	Flow:	60 / 75 Lpm
High Light:	250ml/R orbit motor , 2 bolt orbit motor , 1" orbit hydraulic motor

Quick Review:

BMRS Series Orbit Hydraulic Motors, 250ml/r, SAE 2 bolt, 1'' 25.4mm shaft, 7/8-14 O-ring port

Features:

This motor can replace Danfoss OMR, M+S MR, Eaton Charlynn H,S,T series

Specification:

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

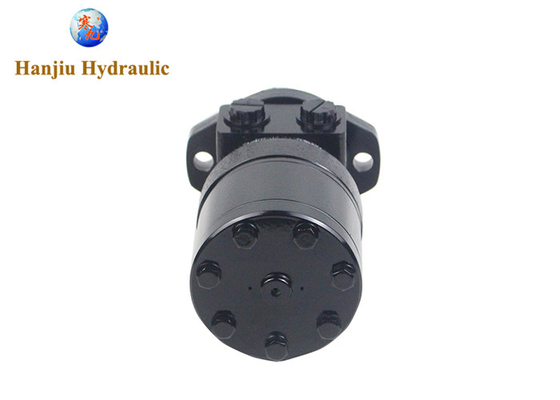

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port 0

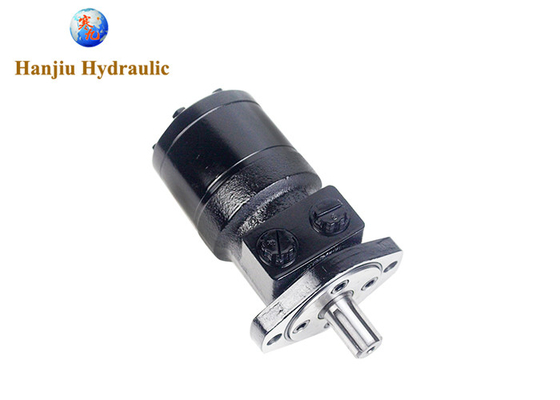

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port 1

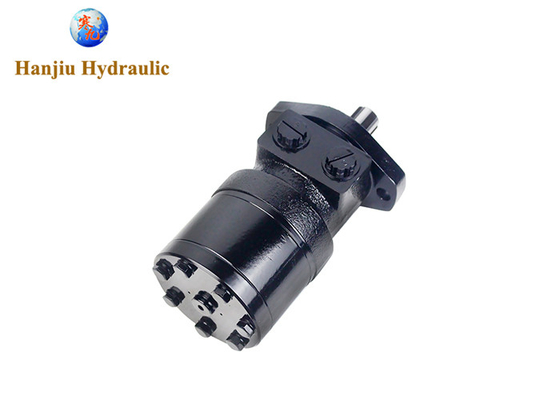

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port 2

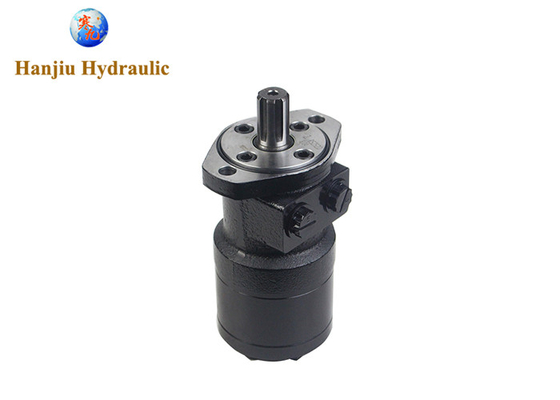

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port 4

More Hydraulic Orbital Motor available:

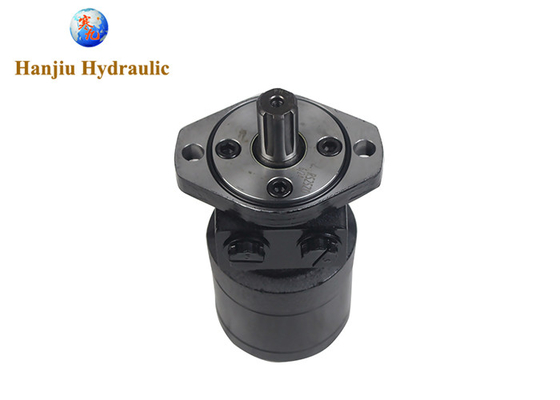

BMRS Series Orbit Hydraulic Motors 250ml/R SAE 2 Bolt 1'' 25.4mm Shaft 7/8-14 O-Ring Port 5

About Hanjiu:

From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
