Product Details:
Payment & Shipping Terms:
|
| Item: | Orbit Hydraulic Motor | Model No.: | BMSYS-160-E-D-B |
|---|---|---|---|
| Displacement: | 160 Ml/r | Flange: | 4 Bolt |
| Shaft: | Short Shaft 12-DP12/24 | Port: | G 1/2 |
| Rotation: | Left And Right | Speed: | 470 / 560 Rpm |
| Torque: | 485 / 590 Nm | Flow: | 75 / 90 Lpm |
| High Light: | bmsy series orbit hydraulic motor,160ml/r orbit hydraulic motor,4 bolt mounting orbit motor |
||
Quick Review:

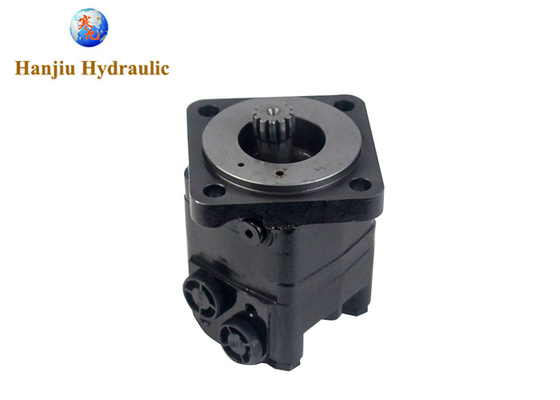

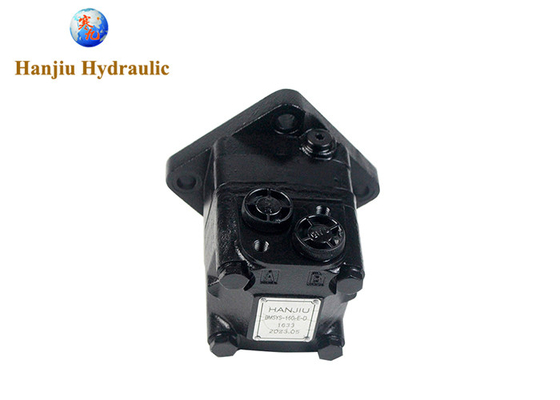

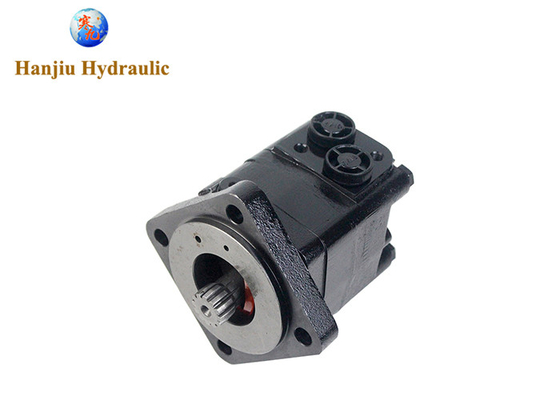

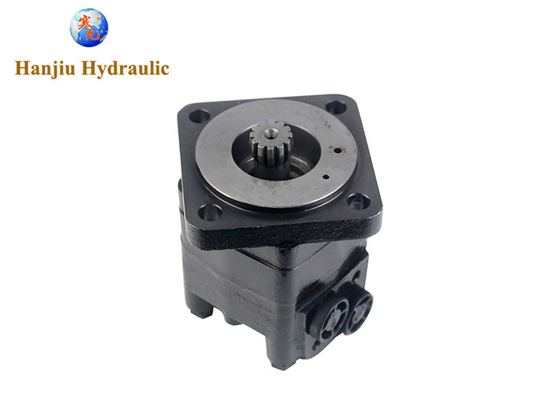

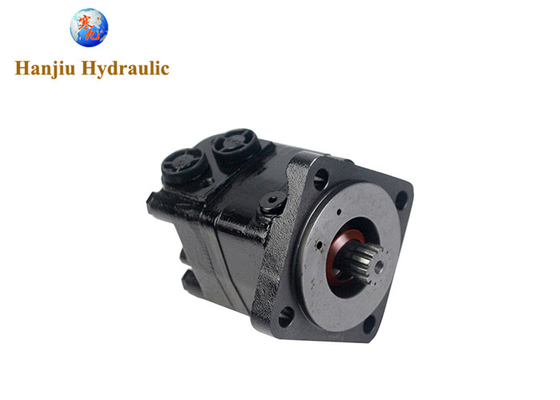

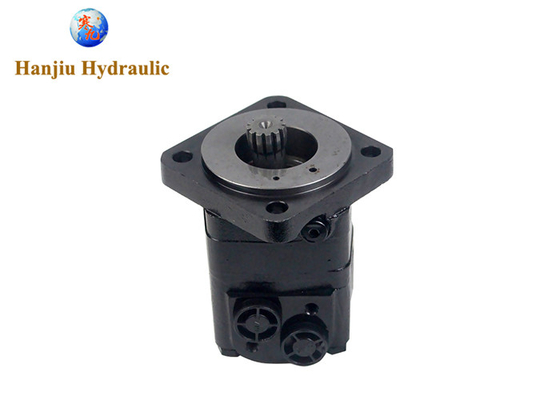

BMSY Series Orbit Hydraulic Motors, 160ml/r, 4 bolt mounting, short shaft, G1/2 port
Features:
This motor can replace Danfoss OMS, M+S MS, Eaton Charlynn 2000 series
Specification:
| Main Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Continuous pressure :Max. value of operating motor continuously. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
More Hydraulic Orbital Motor available:
About Hanjiu:
From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
