Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroler Motors | Model: | 109-1212-006 Replacement |
|---|---|---|---|
| Manufacturer: | Hanjiu | Brand: | Hanjiu |
| Feature: | Standard Mount Motor | Displacement: | 492.6 Ml/r |
| Mounting: | 4 Bolt | Shaft: | 31.75mm |
| Port: | Staggered Ports | Warranty: | 12 Month |
| High Light: | 109-1212-006 charlynn hydraulic motor,interchange charlynn hydraulic motor,4 bolt char lynn motor |
||
Quick review:

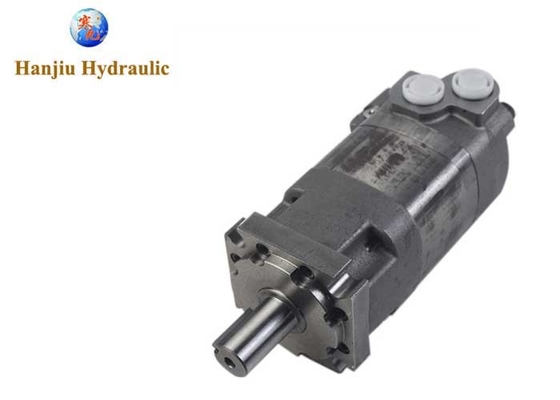

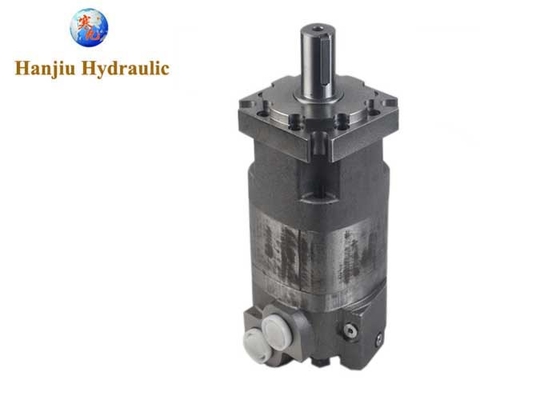

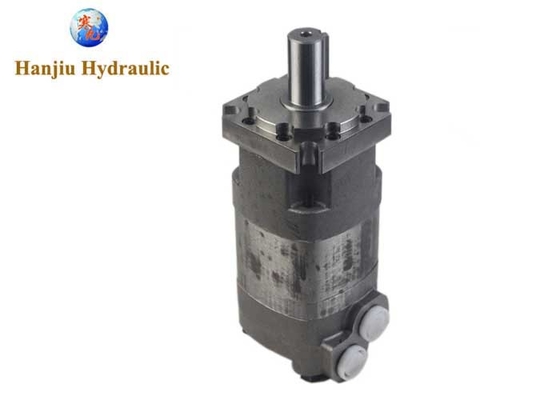

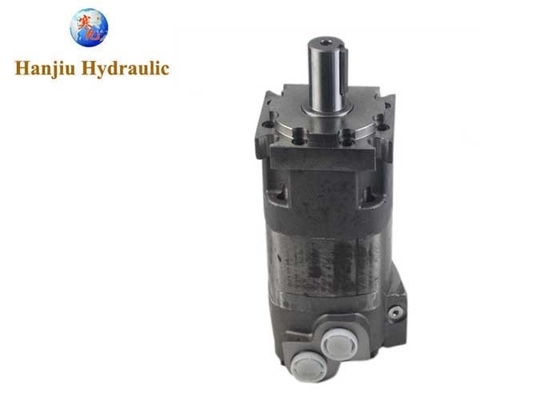

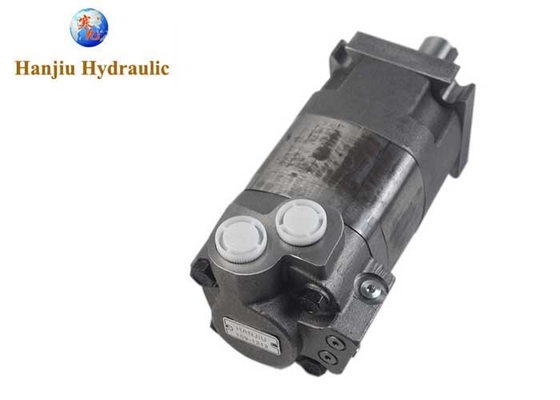

109-1212-006 Charlynn Interchange Hydraulic Motor, 4 bolt, 492.6 ml/r, 31.75mm
Features:
This motor is a Charlynn 109-1212-006 replacement motor with same form, fit and function
Specs:
| Feature | Description |
| PRODUCT | MOTOR |
| SERIES | 4000 SERIES |
| DISPLACEMENT | 492.6 CM3/R [30.06 IN3/R] |
| MOUNTING TYPE | STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B) |
| OUTPUT SHAFT | 31.75 [1.250] DIA. STRAIGHT WITH .375-16UNC-2B THREAD, 53.1 [2.09] MAX COUPLING LENGTH, 7.938 [.3125] SQ X 41.27 [1.625] STRAIGHT KEY |
| PORTS | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | NONE |
| PRESSURE/FLOW OPTION | NONE |
| GEROLER OPTION | STANDARD |
| SEAL OPTION | STANDARD |
| ACCESSORIES | NONE |
| SPECIAL FEATURES (HARDWARE) | NONE |
| SPECIAL FEATURES (ASSEMBLY) | NONE |
| PAINT/PACKAGING | NO PAINT, INDIVIDUAL BOX |
| CUSTOMER IDENTIFICATION | NONE |
| DESIGN CODE | SIXTH |
More 109 series motors we have:
| 109-1001-006 | 109-1100-006 | 109-1155-006 | 109-1212-006 | 109-1278-006 |
| 109-1002-006 | 109-1101-006 | 109-1156-006 | 109-1215-006 | 109-1280-006 |
| 109-1003-006 | 109-1102-006 | 109-1157-006 | 109-1220-006 | 109-1286-006 |
| 109-1006-006 | 109-1103-006 | 109-1158-006 | 109-1224-006 | 109-1287-006 |
| 109-1008-006 | 109-1104-006 | 109-1159-006 | 109-1225-006 | 109-1293-006 |
| 109-1011-006 | 109-1105-006 | 109-1160-006 | 109-1227-006 | 109-1295-006 |
| 109-1012-006 | 109-1106-006 | 109-1173-006 | 109-1231-006 | 109-1296-006 |
| 109-1013-006 | 109-1107-006 | 109-1184-006 | 109-1233-006 | 109-1304-006 |
| 109-1052-006 | 109-1108-006 | 109-1185-006 | 109-1234-006 | 109-1305-006 |
| 109-1053-006 | 109-1109-006 | 109-1189-006 | 109-1236-006 | 109-1309-006 |
| 109-1054-006 | 109-1110-006 | 109-1190-006 | 109-1238-006 | 109-1311-006 |
| 109-1055-006 | 109-1111-006 | 109-1191-006 | 109-1245-006 | 109-1314-006 |
| 109-1056-006 | 109-1112-006 | 109-1192-006 | 109-1246-006 | 109-1316-006 |
| 109-1057-006 | 109-1113-006 | 109-1193-006 | 109-1247-006 | 109-1317-006 |
| 109-1059-006 | 109-1114-006 | 109-1194-006 | 109-1248-006 | 109-1318-006 |
| 109-1061-006 | 109-1115-006 | 109-1195-006 | 109-1252-006 | 109-1337-006 |
| 109-1062-006 | 109-1116-006 | 109-1196-006 | 109-1254-006 | 109-1339-006 |
| 109-1063-006 | 109-1117-006 | 109-1203-006 | 109-1260-006 | 109-1363-006 |
| 109-1064-006 | 109-1118-006 | 109-1204-006 | 109-1263-006 | 109-1450-006 |
| 109-1065-006 | 109-1119-006 | 109-1207-006 | 109-1264-006 | 109-1453-006 |
| 109-1087-006 | 109-1120-006 | 109-1208-006 | 109-1267-006 | 109-1543-006 |
| 109-1094-006 | 109-1154-006 | 109-1211-006 | 109-1269-006 | 109-1092-006 |
About Hanjiu:
From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
