| Product Name: | Hydrostatic Unit,steering Valve | Oil Port: | 3/4 Unf |
|---|---|---|---|
| Quality: | Oem Quality | Material: | Cast Iron |
| Displacement: | 315cc | Applications: | Tractors,loaders |
| High Light: | 150N0030 Danfoss Orbital Steering Unit,OSPB315 Danfoss Orbital Steering Unit,Loaders Danfoss Steering Unit |
||

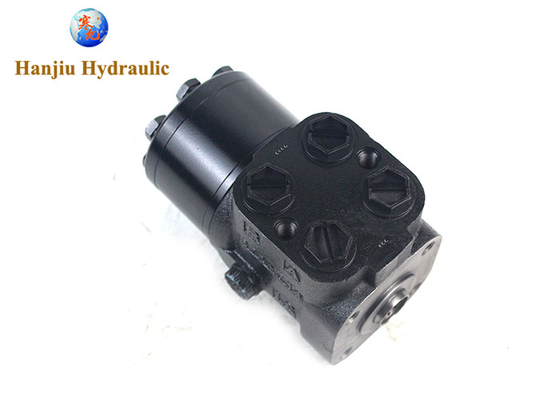

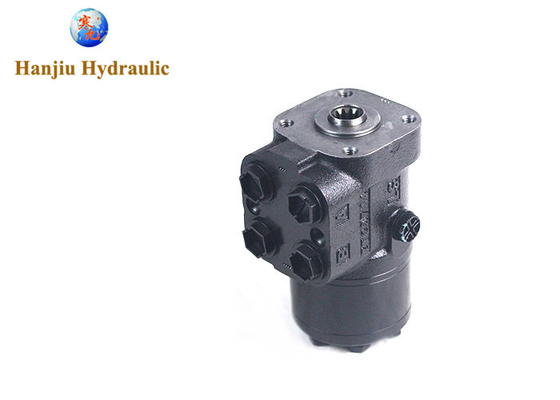

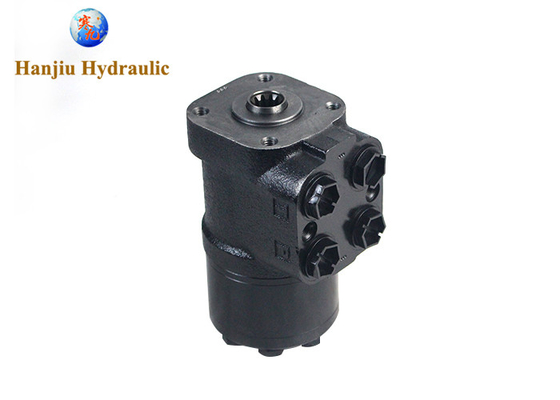

150N0030 Danfoss Steering Unit OSPB315 ON 3/4 UNF for loaders steering valve
Hanjiu hydraulic supply OSPB ON, CN ,LS series hydraulic steering units,
used on wheel loaders, backhoe loaders, tractors....
same quality, high performance
specification:
| Parameters | Series 101-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| displacement | 315cc |
| type | 101 series |
| control type | load sensing |
| max pressure | 17.5mpa |
| max back pressure | 2.5mpa |
| port threads | 3/4UNF O-RING |
Orbitrol hydrostatics are a hydraulic device used in vehicle steering systems, especially in agricultural and construction machinery. It plays a crucial role in transmitting motion and controlling direction.
The main advantage of this system is the ability to provide smooth and precise steering even on uneven terrain.
One of the most important features of hydrostatic orbitrol is its ability to control the speed and direction of the vehicle. This is possible thanks to its ability to adjust the amount of hydraulic oil that flows through the system. By turning the steering wheel, the operator can control the amount of oil directed to each side, allowing precise steering control.
Furthermore, hydrostatic orbitrol also offers a number of additional benefits, such as reducing the effort required to turn the steering wheel, which makes vehicle operation easier. In addition, it also reduces tire wear, as the steering is smoother and more precise.
However, it is important to mention that proper maintenance of the system is essential to ensure its proper functioning. It is necessary to regularly check the hydraulic oil level and replace it when necessary. Furthermore, it is important to ensure that all connections and hoses are in good condition and that there are no leaks.
In summary, orbitrol hydrostatics play an essential role in vehicle steering, providing smooth and precise control. Its ability to adjust the amount of hydraulic oil allows you to control the speed and direction of the vehicle efficiently. However, it is important to carry out adequate maintenance to ensure its proper functioning and extend its useful life.
HANJIU brand hydraulic motors, hydraulic valves and hydrostatic orbitrol are affordable and of good performance.
