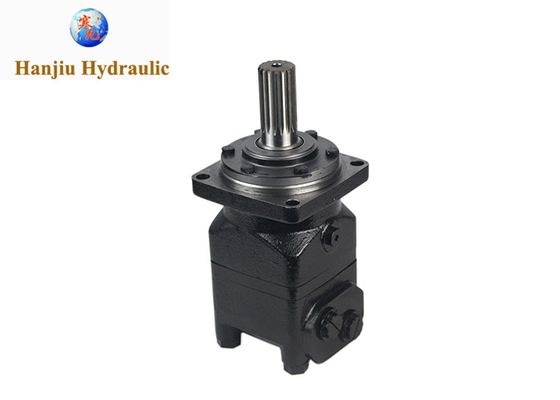

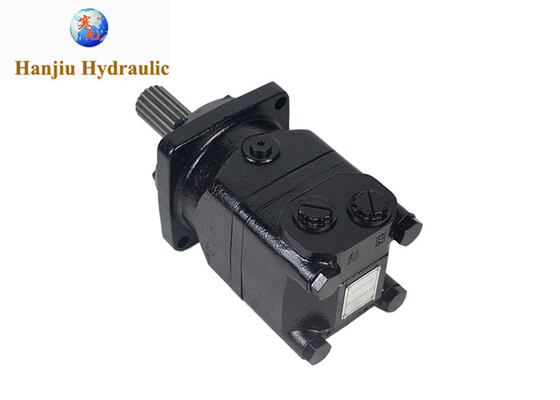

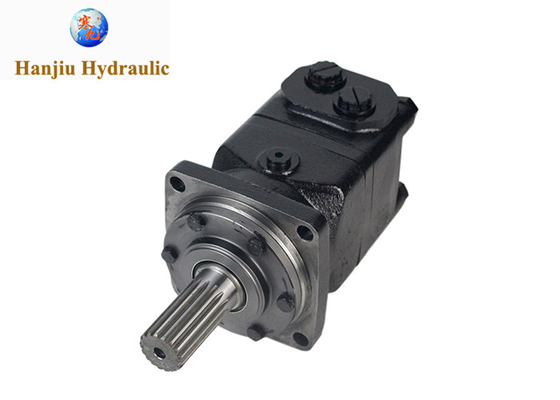

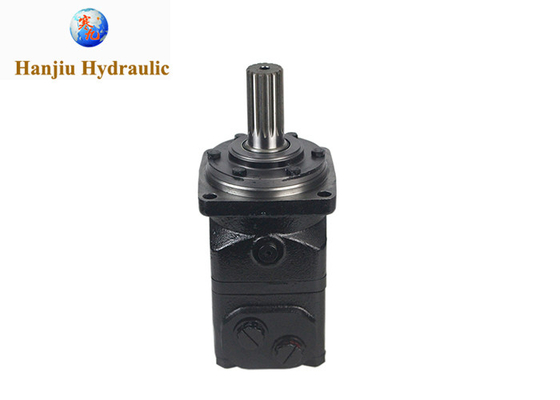

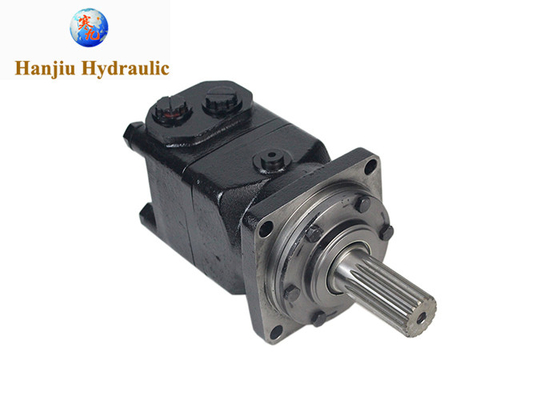

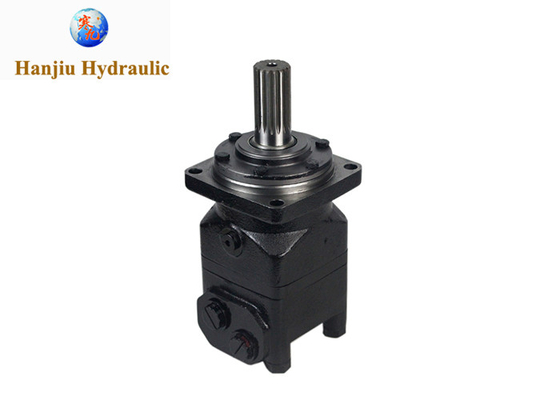

Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250

Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250
Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250

Large Image :  Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 160 usd/pc
Packaging Details: Box, Pallet
Delivery Time: 0 - 45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Model Number: BMT-250-K6-F-S Item: Orbital Hydraulic Motor
Size: 250 Ml/r Brand: Hanjiu
High Light:

BMT-250-K6-F-S orbit hydraulic motor

,

Replace OMS 250 orbit hydraulic motor

,

BMT-250-K6-F-S orbit motor



Hydraulic Motors, BMT-250-K6-F-S, replace OMS 250, M+S MS 250





Quick review:

Hanjiu BMT = Char-Lynn 6000, Danfoss OMT/OMTS, M+S MLHT



Model Number:

BMT-250-K6-F-S



Quick detail:

Product Orbital Hydraulic Motor
Model No. BMT-250-K6-F-S
Size 250 ml/r
Flange 4-Ø14 Square-flangeØ162, pilotØ127×9
Shaft Shaft Ø38.1
Rotation standard
Port 1-1/16-12 un o-ring
Color Black





Technical Specs.:
Main Specifications:
Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.





Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 0



Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 1



Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 2



Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 3



Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 4





danfoss omt motors

omt 400 hydraulic motor specifications

hydraulic motor identification

oms 100 hydraulic motor

Danfoss motor

hydraulic motor catalogue pdf

hydraulic motor






 Hydraulic Motors BMT-250-K6-F-S Replace OMS 250 M+S MS 250 5



About the seller:
We are HANJIU from China, Hanjiu manufactures hydraulic motors. Europe, North America, South America importers, dealers and users love to sell and use Hanjiu's Disc valve motors as Eaton Char-lynn compatible motors. The quality of Hanjiu's motors can meet the needs of users, and the price is low for importers. Importers can sell at a good price and get a good profit. At the same time, their customers have a high return rate.

We specialize in Eaton Char-lynn replacement/alternative/compatible motors
We specialize in Sauer Danfoss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor

You're welcome to contact us to discuss cooperation.
