| Product: | Hydraulic Steering Unit | Model No.: | BZZ1-E250 |
|---|---|---|---|
| Displacement: | 250ml/r | Brand: | Hanjiu |
| High Light: | Harvester hydraulic steering valve,Tractor hydraulic steering valve,BZZ1-E250 hydraulic steering valve |
||

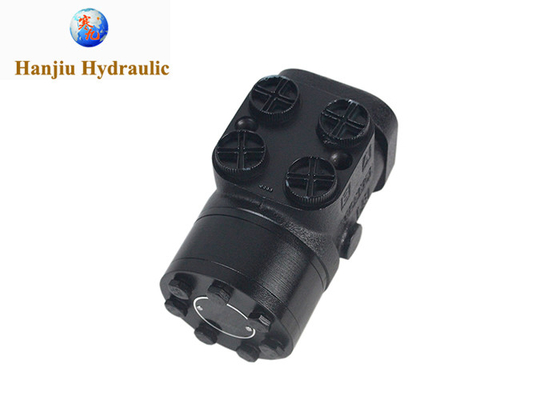

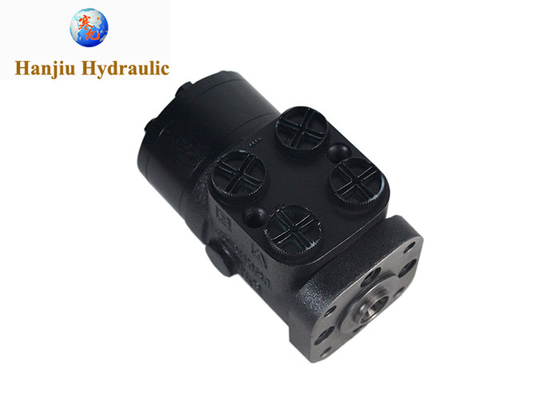

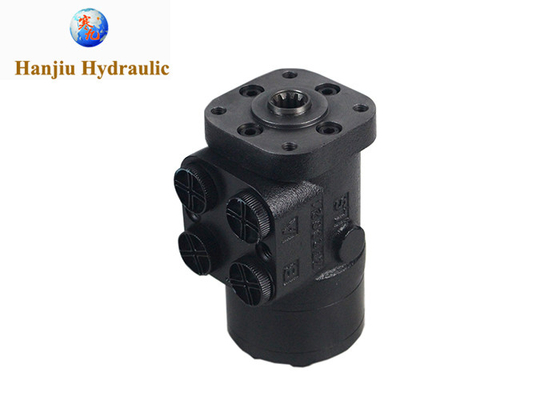

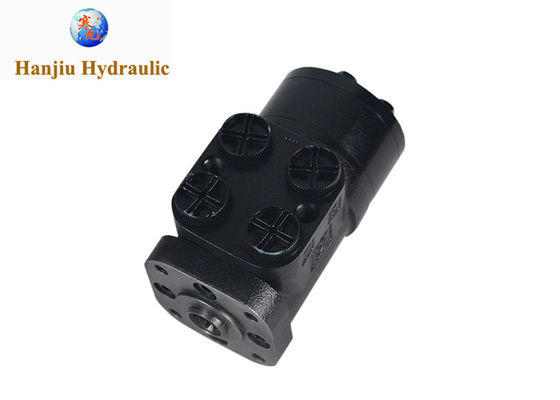

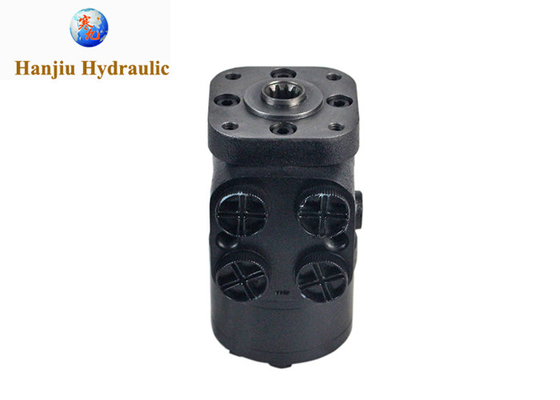

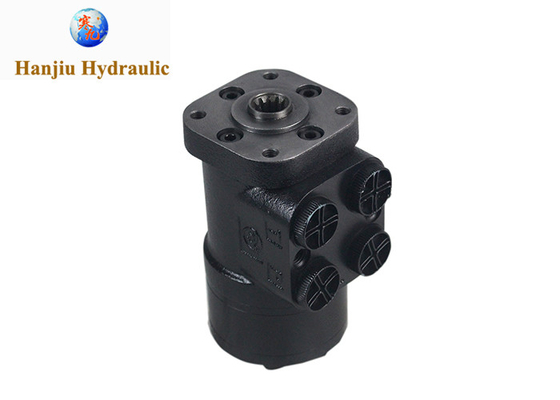

Steering Valve fit forklift, tractor, harvester and helm control, BZZ1-E250
Hydraulic Steering Unit (BZZ1, BZZ2, BZZ3)
Hydraulic steering control units (BZZ)
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.
The advantages of the hydraulic steering control units:
| Type | Displacement (mL/r) |
Flow (L/min) |
Max.input pressure(MPa) |
Max.cont.back pressure(MPa) |
Weight (kg) |
| BZZ口-E50* | 50 | 4 | 16 | 2.5 | 4.72 |
| BZZ口-E63* | 63 | 5 | 4.85 | ||
| BZZ口-E80* | 80 | 6 | 5.00 | ||
| BZZ口-E100* | 100 | 7.5 | 5.27 | ||
| BZZ口-E125* | 125 | 9.5 | 5.43 | ||
| BZZ口-E160* | 160 | 12 | 5.75 | ||
| BZZ口-E200* | 200 | 15 | 6.08 | ||
| BZZ口-E250* | 250 | 19 | 6.48 | ||
| BZZ口-E280* | 280 | 21 | 6.78 | ||
| BZZ口-E315* | 315 | 24 | 7.13 | ||
| BZZ口-E400* | 400 | 30 | 7.78 | ||
| BZZ口-E500* | 500 | 38 | 8.67 | ||
| BZZ口-E630* | 630 | 48 | 9.72 | ||
| BZZ口-E800* | 800 | 60 | 11.18 | ||
| BZZ口-E1000* | 1000 | 75 | 12.80 |
Note 1: represents Function Code, BZZ2 can be chosen for SCU with the displacement of 50-200mL/r. BZZ1 or BZZ3 can be chosen for SCU with the displacement of 50-1000mL/r.
Note 2: “Flow” that we suggest to use is the flow of 1.25 times as much as that at the steering wheel’s rotation speed of 60 r/min. If the design of the system can't meet the requirements, the flow is allowed to be adjusted a little bit.
