| Product Name: | ORBITMOTOR | Displacement: | 315cc |
|---|---|---|---|
| Max Speed: | Cont.240/int.280 Rpm | Max Torque: | Cont.560/int. 658 N.m |
| Oil Temperature: | Normal-30℃-90℃ | Max Flow: | Cont. 75/int. 90 L/min |
| High Light: | 315 bms motor,construction machinery bms motor |
||

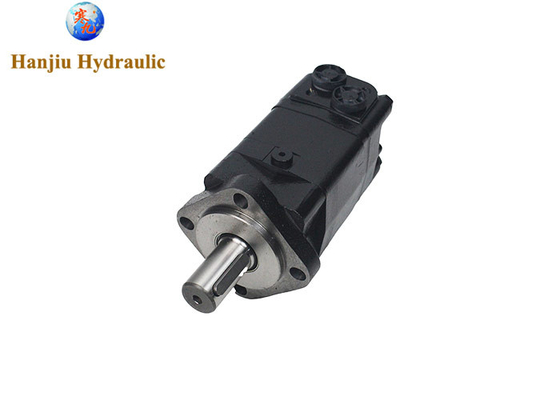

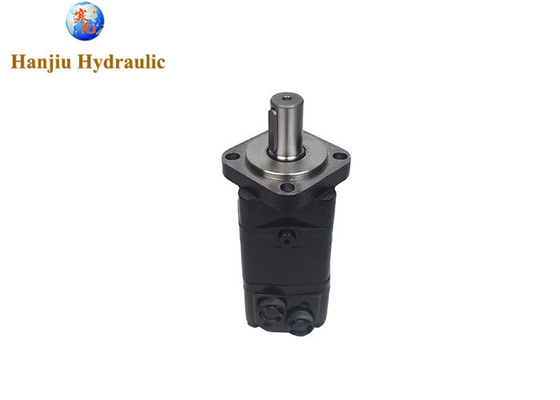

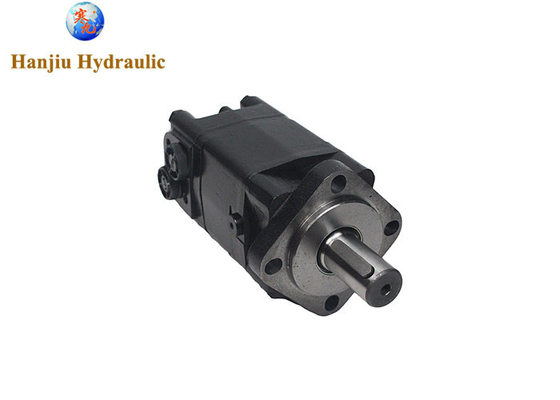

BMS 315 Hydraulic Motor 32mm 1/2BSPP Replace 151F0506 Danfoss OMS315 for construction machinery
type code :BMSY-315-E4-B-D=151F0506
Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
151B-3100, 151B-2150, 151B-3105, 151B-2155, 151B-3110, 151B-2183, 151B-2188, 151B-3115,151B-3101, 151B-2151,
151B-3106, 151B-2156,151B-3111, 151B-2184, 151B-2189, 151B-3116,151B-3102, 151B-2152, 151B-3107, 151B-2157, 151B-3112, 151B-2185, 151B-2190, 151B-3117,151B-3103, 151B-2153, 151B-3108, 151B-2158, 151B-3113, 151B-2186, 151B-2191, 151B-3118,151B-3104, 151B-2154, 151B-3109, 151B-2159, 151B-3114, 151B-2187, 151B-3120, 151B-3119
1. Advanced manufacturing devices for the geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in adapts in tapeered roller bearings that permit high axial and radial forces.
3. The Caase can offer applications of high pressure and high torque in the wide of applications.
4. Advanced design in disc distribution flow, which can automatically compensate in operating with high volum efficiency and long life. Provide smooth and reliable operation.
5. The new series motor is suitable for vehicles with greater loads and pressures drop.
