Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Motor Brake | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | BK10-1-1150-T31-S1 | Min Static Torque: | 1150 Nm |
| Release Pressure: | 2.8 MPa | Max Release Pressure: | 21 MPa |
| Max Speed: | 300 Rpm | Release Volume: | 12cm3 |
| Max Pressure In Drain Space: | 0.05 MPa | Application: | Scissors Aerial Work Platform And Agriculture Machine |
| High Light: | BK10 brake motor,Agriculture Machine brake motor |
||
Quick details:

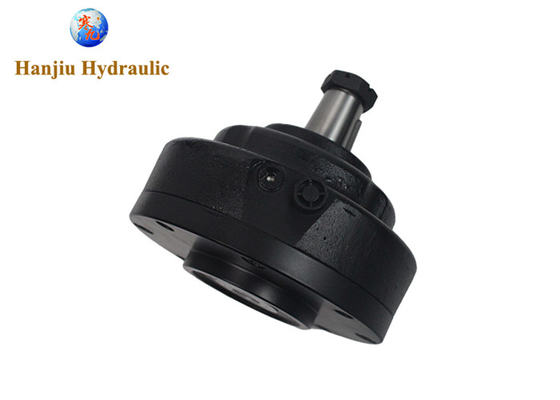

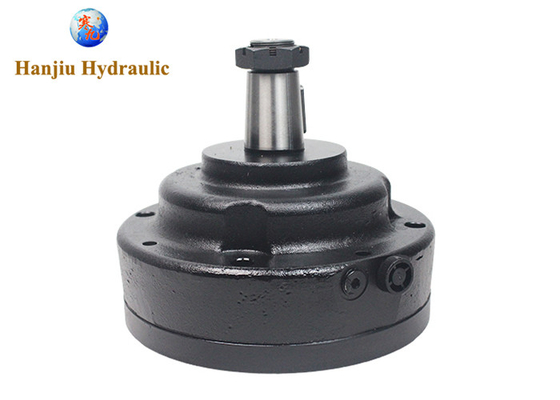

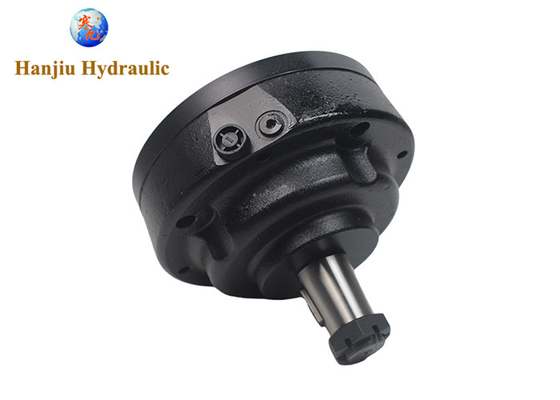

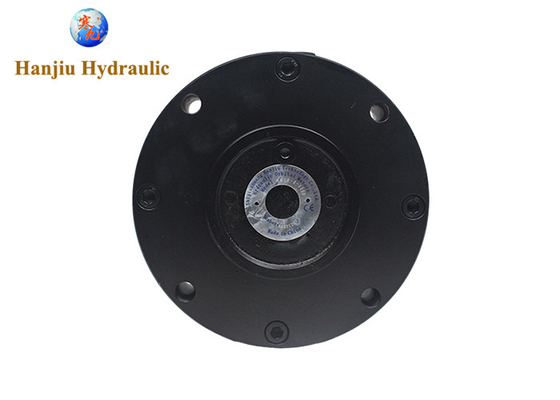

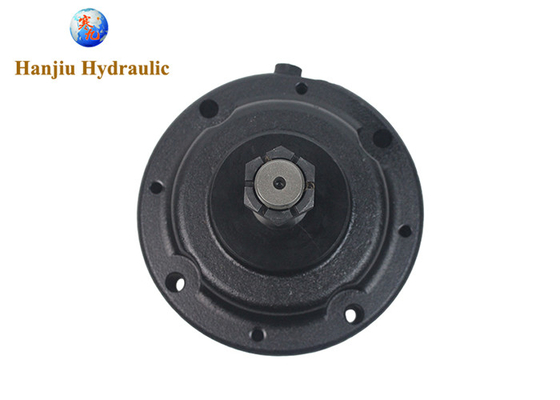

BK10 series hydraulic brake.
Type, Hydraulic Motor Brake
Brand, HANJIU
Model No., BK10-1-1150-T31-S1
Min static torque, 1150 Nm
Release Pressure, 2.8 MPa
Max release pressure, 21 MPa
Max Speed, 300 rpm
Release Volume, 12cm3
Max pressure in drain space, 0.05 MPa
Application, Scissors aerial work platform and agriculture machine
Feature:
* The output shaft adopts the same heavy duty roller bearing in front and behind, which is bigger ability on radial load.
* It adopts optimized disc brake piece and spring load, for reliable braking and good endurance.
* Optimizing piston and loading mechanism, to provide the minimum dimension of wheel connection method.
* With double braking release port, in order to discharge the braking cylinder gas or external brake fluid.
* Big braking torque, suitable for static braking
How to extend the service life of the brake system:
In order to make the BK10 series brake work under the best situation, we recommend the normal requirements as follows:
Our Company:
Hanjiu Technology Co.,ltd. specializes in the design, research and development, manufacturing, sales and export of hydraulic cycloidal motors and brake motors. It is a well-known hydraulic brand in China and the world. Serving customers in all regions of the world, we have a wide range of types and varieties, which can best meet the needs of various regions, industries and customers.
If you are an importer or distributor of hydraulic products and want to find more suitable manufacturers and partners to make your business more competitive, please contact me. As long as you have strength, good sales channels, and With the determination and goal to open up the market, we are willing to work with you to achieve win-win strategic cooperation. Regardless of product, quality, price, after-sales service, or delivery time, we can satisfy your customers.
Looking forward to hearing from you.
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |
