Product Details:
Payment & Shipping Terms:
|
| Item: | Disc Geroter Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible/standard | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Application: | Hydraulic Hammer Drill |
| High Light: | 2651323319 eaton hydraulic motor,Hydraulic Hammer Drill eaton hydraulic motor,High Pressure gerotor hydraulic motor |
||

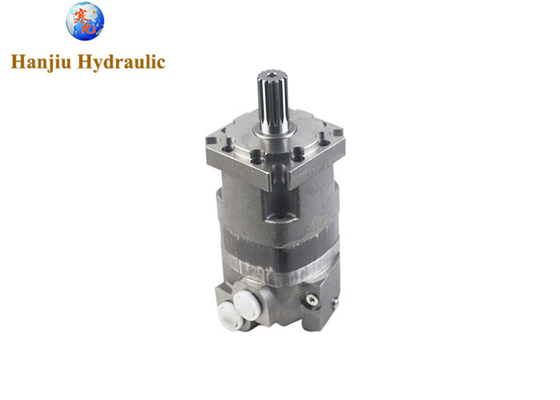

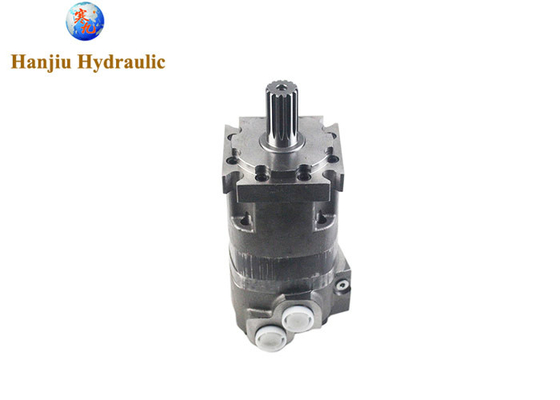

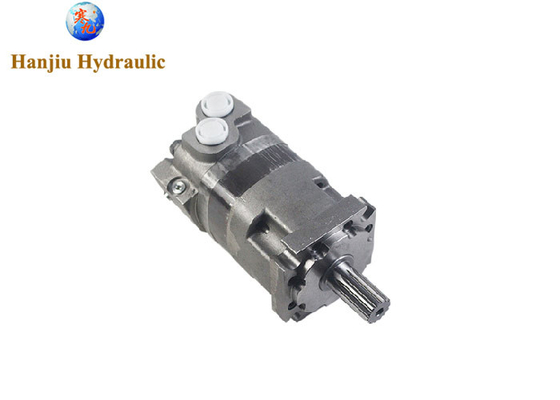

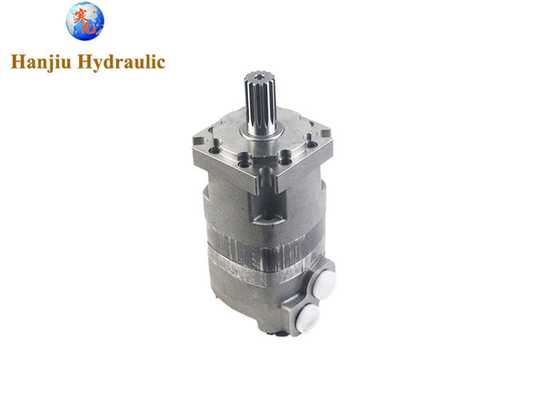

OEM #2651323319 Eaton gerotor hydraulic motor for hydraulic hammer drill high pressure 4000 series charlynn motor
Disc Motor
Geroler
Disc Valve motor
OEM#2651323319
for Ingersollrand and Furukawa
used on hammer drill
Product details:
| MOUNTING TYPE CODE | SAE B | |
| PORT CODE | D | |
| PORT TYPE |
|
|
| DISPLACEMENT (IN3/REV) | 15.03 | |
| SPLINES | 14 | |
| SHAFT SIZE & TYPE |
31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
|
| RPM [MAX] | 582 rpm | |
| MOUNT TYPE | 4 Bolt | |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb | |
| SHAFT TYPE | Splined | |
| MOTOR TYPE | Disc Valve | |
| MOUNTING HOLES | 0.58 in | |
| FLANGE ORIENTATION | Standard | |
| DRAIN | SAE-4 w/Check Valve | |
| DUTY | Standard-Duty | |
| MOTOR ELEMENT | Geroler | |
| SERIES | 4000 Series | |
| ROTATION | Standard Rotation | |
| FLOW RATE | 25 gal/min | |
| PORT SIZE | 3/4- unf | |
| PILOT DIAMETER | 4 in | |
| PORT LOCATION | Side Port | |
| BOLT CIRCLE DIA. | 5 in | |
| MOUNTING HOLE SIZE | 0.58 in | |
| OUTPUT SHAFT CODE | 3 | |
| SEAL MATERIAL | Buna-N | |
| INLET PRESSURE [MAX] | 4500 psi | |
| CORROSION RESISTANT | No | |
| PAINT/PACKAGING | Individual Box | |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min | |
| SPECIAL FEATURES | None | |
| PAINT CODE | black | |
| WEIGHT | 57.0 LB |
HANJIU Technology sells the hydraulic pumps, hydromotors and hydraulic valves to the world. You can contact us for hydraulic motors whose product original code starts with 22651323319. Additionally, if you are looking for a product that is not on the list, you can request a product to contact me !
