Product Details:
Payment & Shipping Terms:
|
| Item: | Directional Control Valve | Model: | 6P40DY-OT |
|---|---|---|---|
| Bank: | 6 Levers | Flow Rate: | 40 LPM |
| Operating Pressure Max: | 250 Bar | Dividing Flow: | 8 - 12 LPM |
| Control: | Electro-pneumatic | Operating Range: | 15 ~ 75 Mm2/s |
| BrandViscosity: | 12 Mm2/m Min | Temperature Range: | -40℃ - 80℃ |
| High Light: | p40 hydraulic directional control valves,p40 pneumatic directional control valves,6 spool pneumatic directional control valves |
||

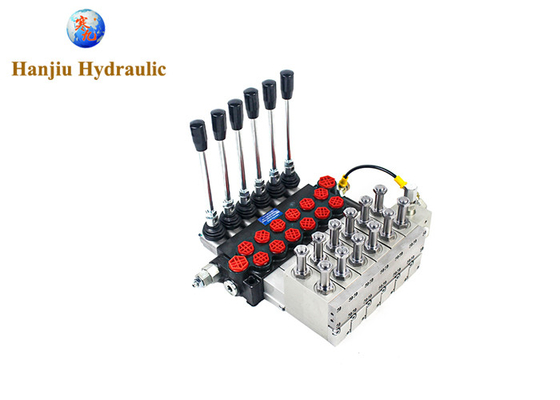

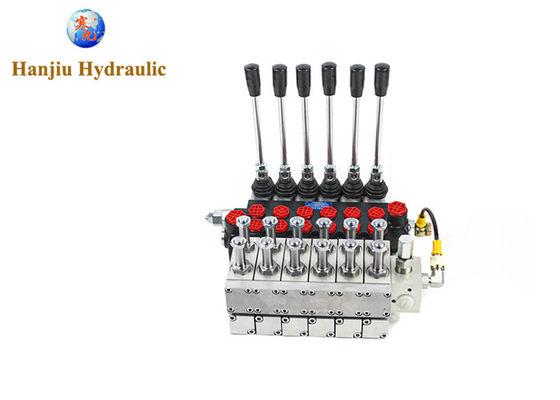

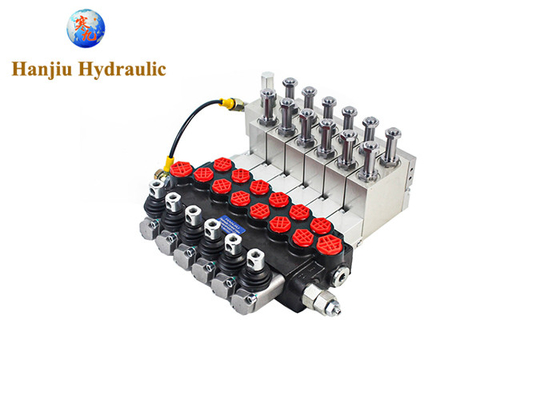

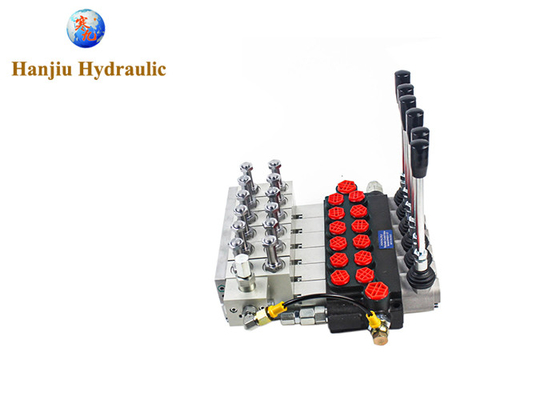

P40 Electric -pneumatic hydraulic Directional Control Valves 6 Spool 3 Way Spring Return
Quick View:
|
Nominal flow rate: |
40 liter/min |
| Max. Pressure: | P: 315 bar, T: 25 bar, A-B: 300 bar |
| Spool type: | Standard open center spool (A spool), different spool options |
| Number of spools: | From 1 to 7 |
| Viscosity min: | 12 mm2/s |
| Viscosity max: | 400 mm2/s |
| Ambient temperature range: | -40 ℃ ~ +80℃ |
| Working fluid: | Mineral based hydraulic oil |
The use of hydraulic technology in agricultural machinery can greatly improve the performance of the comprehensive utilization of tractors and the efficiency of farm tools, and the advanced hydraulic dump trailers, hydraulic excavation and hydraulic loading and other supporting equipment are used in agricultural production, which will significantly improve work efficiency.
When the tractor and other agricultural machinery and equipment are operated by hydraulic technology, it is convenient to realize the stepless speed change, in the harvesting operation, in order to improve the productivity of the unit, prevent the threshing drum from failing due to overload, the walking speed of the combine harvester needs to be randomly adjusted, the hydraulic drive can carry out the stepless speed change, the systematic arrangement is more convenient, and the work efficiency of the unit can also be improved, and the possibility of machine failure can be reduced.
The use of hydraulic transmission in agricultural machinery can simplify the structure of the machine itself, reduce material consumption and manufacturing costs. The use of hydraulic technology for the operation of agricultural machinery can reduce the pulling strength of the operator, improve productivity, with the help of hydraulic technology to operate the harvester, header, tractor suspension of farm tools lifting, loader, excavator working parts are also more labor-saving. After using hydraulic technology, agricultural machinery can greatly improve the work efficiency of the unit, reduce the consumption of materials to a minimum, greatly reduce the weight of machinery, greatly reduce the manufacturing cost of machinery, improve the production efficiency of agricultural machinery, greatly reduce the labor intensity of labor, and improve the reliability and efficiency of work.
Hydraulic valve is a kind of automatic element with pressure control, generally used in combination with electromagnetic pressure distribution valve, mainly used for long-distance control of hydropower, oil, gas and water pipeline system on-off operation, can also be used in the oil circuit clamping, control, lubrication and other operations, the main structure is divided into direct type and pilot type, of which the pilot type is more commonly used. The use of hydraulic valves in agricultural machinery is also very common, providing adjustment, power, power and other technical support for agricultural machinery.
The use of hydraulic valves in agricultural machinery is very common, and agriculture machinery hydraulic valve is mostly outdoors, which is easily affected by vibration, sunlight, rainfall and other factors, so the daily maintenance and maintenance of agriculture machinery hydraulic valve is very important. If you have any questions about Agriculture Machinery Hydraulic Valve, please feel free to contact us.
