| Product: | Gerotor Hydraulic Motors | Model No.: | BMK2-200-E6-G-SU |
|---|---|---|---|
| Size: | 200 Ml/r | Flange: | 4× Φ13.5 Rhomb-flange Φ106.4, Pilot Φ82.5×6.4 |
| Shaft: | Φ31.75 , Parllel Key 7.96×7.96×25.4 | Rotation: | Clockwise |
| Port: | 7/8-14UNF O-ring,7/16-20 UN | Color: | Black |
| High Light: | BMK2 Series gerotor hydraulic motor,200ml/R gerotor hydraulic motor,4-Bolt gerotor motor |
||

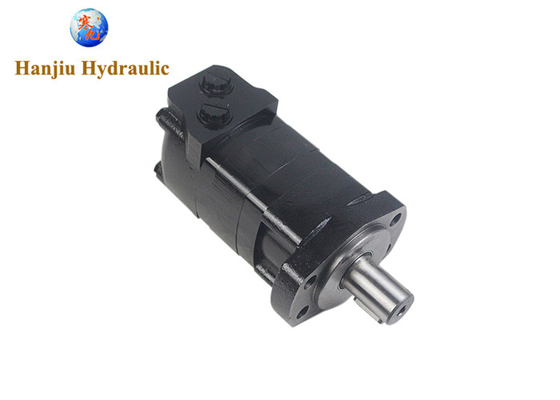

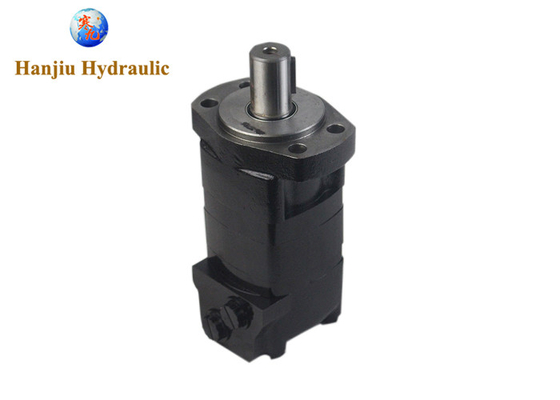

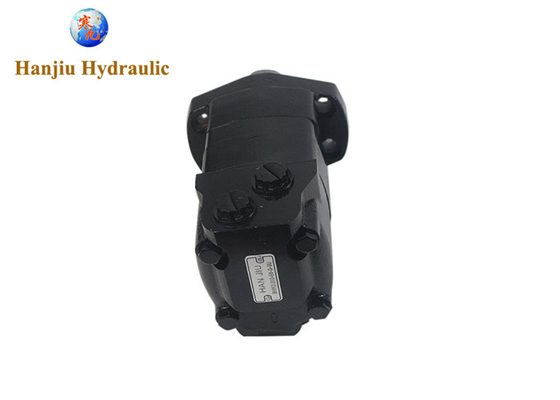

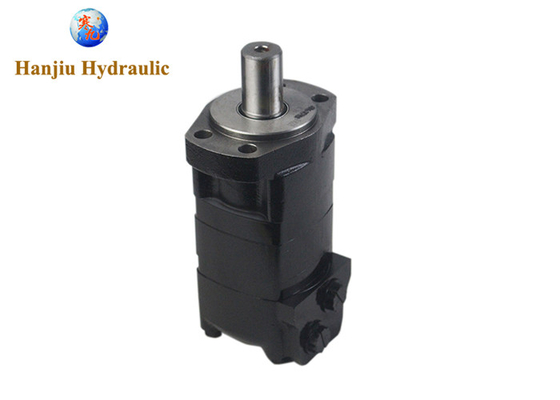

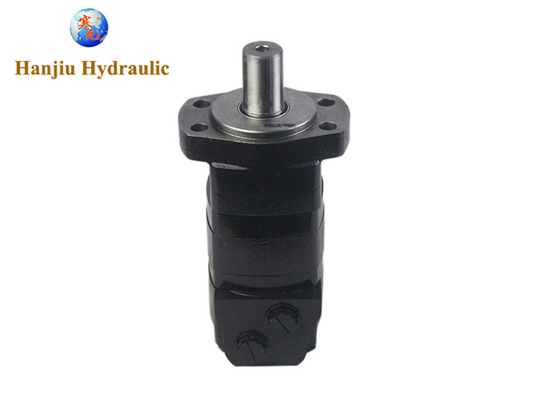

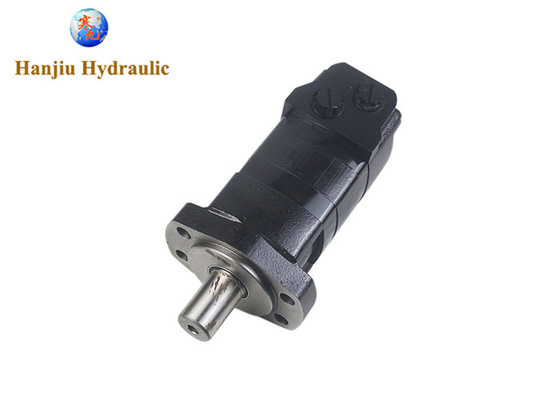

BMK2 series gerotor hydraulic motor 200ml/r 4-bolt rhomb flange 31.75mm straight shaft
Quick review:
BMK2-200-E6-G-SU
Details:
| Product | Gerotor Hydraulic Motors |
| Model No. | BMK2-200-E6-G-SU |
| Size | 200 ml/r |
| Flange | 2× Φ13.5 Rhomb-flange Φ106.4, pilot Φ82.5×6.4 |
| Shaft | Φ31.75 , parllel key 7.96×7.96×25.4 |
| Rotation | CCW |
| Port | 7/8-14UNF O-ring,7/16-20 UN |
| Features | Danfoss Eaton Charlynn 2000 series interchangeable |
Specification:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
The BMK2 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.
More BMK2 series to match Danfoss Eaton Charlynndrive motors
