| Product: | Low Speed High Ttoque Hydraulic Motor | Model No.: | BMER-2-300-MD-B1-R |
|---|---|---|---|
| Size: | 300 Ml/r | Flange: | 4-bolt Magneto |
| Shaft: | 32mm | Rotation: | CCW |
| Port: | 1/2 BSP | Material: | Cast Iron |
| High Light: | G1/2 Hydraulic Motor,4-Bolt Hydraulic Motor,300ml/R Hydraulic Motor |
||

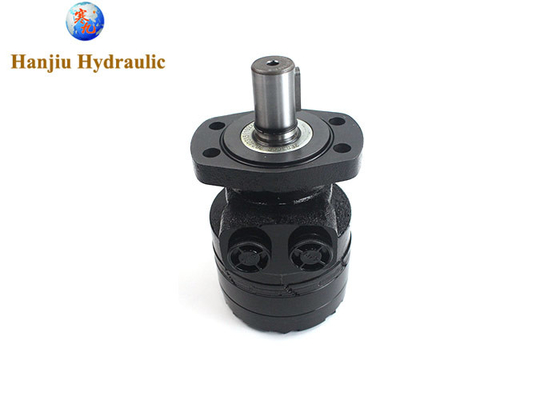

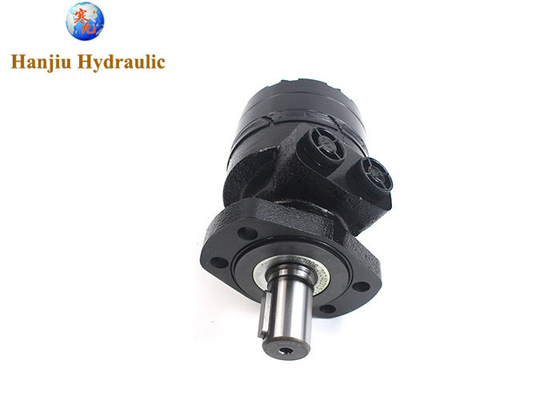

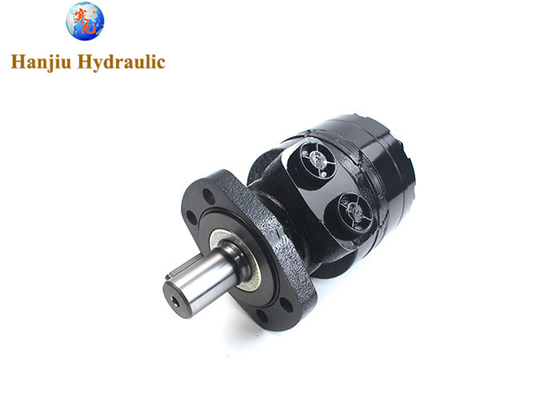

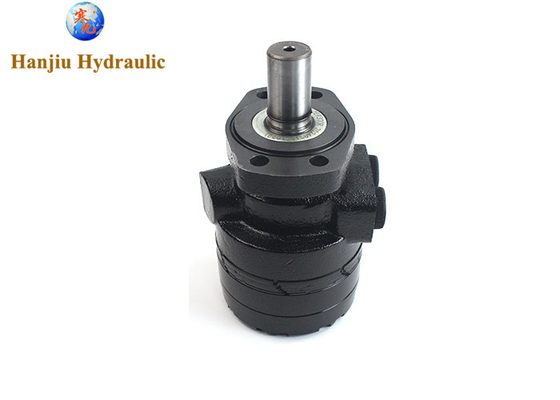

Hydraulic Motor 300ml/R 4-Bolt Magneto Flange 32mm Straight Shaft, G1/2 BSPP Parker LSHT Torqmotors
Quick review:
Model no.: BMER-2-300-MD-B1-R
matching Parker TG0280MW460AAAA
| displacement | 300 ml/r |
| flange | 4-13.5 magneto mount |
| pilot | 82.55*2.8 |
| ports | 1/2 BSP |
| output shaft | 32mm parallel key |
| rotation | standard |
| paint | black |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
The orbital hydraulic motor is a mechanical device used in many industrial equipment. It is mainly used to convert hydraulic energy into mechanical energy.
The operation of the orbital hydraulic motor is based on the principle of hydraulic force. When hydraulic fluid is pumped into the engine, it creates pressure that causes the rotor to spin. The rotor is connected to an output shaft that transfers the mechanical energy produced by the motor to the machine or equipment it powers.
This type of hydraulic motor is very efficient because it offers high starting torque and constant rotation speed. Additionally, it is capable of operating in extreme conditions, such as high temperatures or corrosive environments.
The orbital hydraulic motor also has the advantage of being compact and lightweight, which facilitates its integration into equipment and machines. Additionally, it is easy to maintain and repair, reducing maintenance costs.
In industry, orbital hydraulic motor is used in many fields such as agriculture, construction, mining and automobile. It is used to power equipment such as cranes, bulldozers, drills and agricultural machinery.
In conclusion, the orbital hydraulic motor is an essential device in many industrial sectors. With its efficiency, durability and versatility, it contributes to optimizing machine performance and increasing productivity in various applications.
HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.
