Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Motor | Material: | Cast Iron |
|---|---|---|---|
| Model No.: | BMK2-315-E2-FE-SU | Displacement: | 315ml/r |
| Flange: | SAE Mount | Port Size: | 7/8-14UNF O-RING |
| Drain Line: | 7/16-20UNF | Shaft: | 31.75mm |
| Speed: | 246 - 365 Rpm | Torque: | 765 - 885 Nm |
| High Light: | 18.7cu Hydraulic Geroler Motor,104-1035-006 Hydraulic Geroler Motor,2 Bolt Hydraulic Geroler Motor |
||

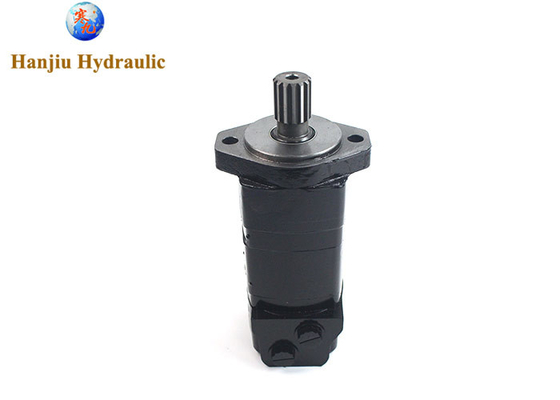

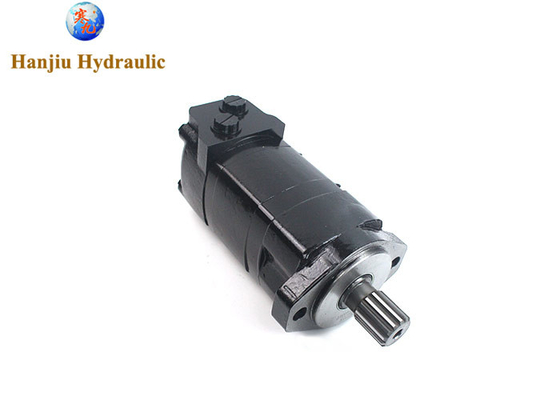

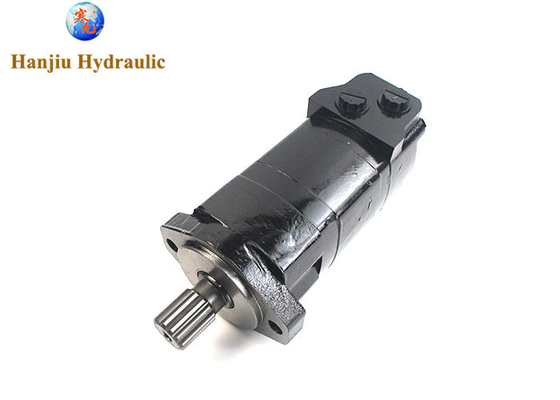

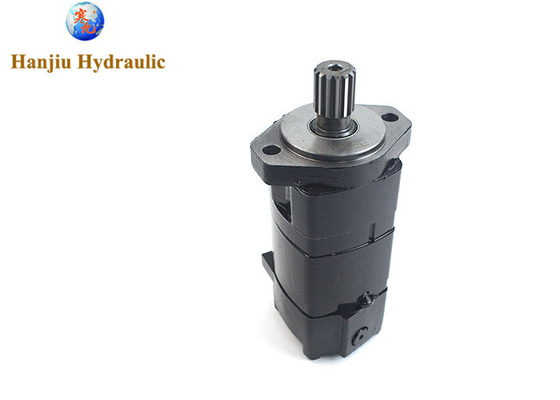

104-1035-006 Hydraulic Geroler Motor 18.7cu in/rev. 2 Bolt SAE A Flange,1 1/4 Inch - 14 T Splined shaft
Quick review:
Model No.: BMK2-315-E2-FE-SU= 104-1035-006
| displacement | 315ml/r |
| speed | 246 - 365 rpm |
| torque | 765 - 885 nm |
| mounting |
2 Bolt SAE A Flange
|
| shaft |
1 1/4 Inch - 14 T Splined
|
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
About Hanjiu:
Hanjiu company, as a local manufacturing enterprise in China, provides a large number of merchants with motor components from Hanjiu factory, because foreign parts prices are generally higher and the transportation time is long, and users in China choose Hanjiu's advantage in avoiding the time and parts loss from overseas distances, and if you are a foreign customer, don't worry, Hanjiu has rich experience in selling abroad. We have cooperation with Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions, Hanjiu provides customers with better service, the more parts you order, the higher the discount we will give. In terms of cost performance, Hanjiu will be your best choice!
