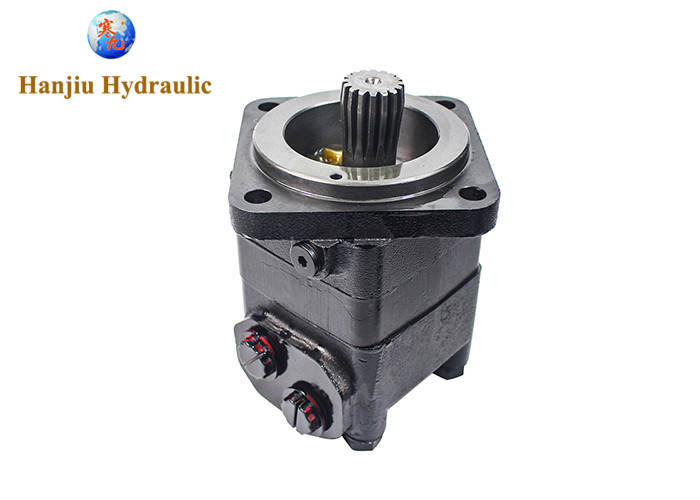

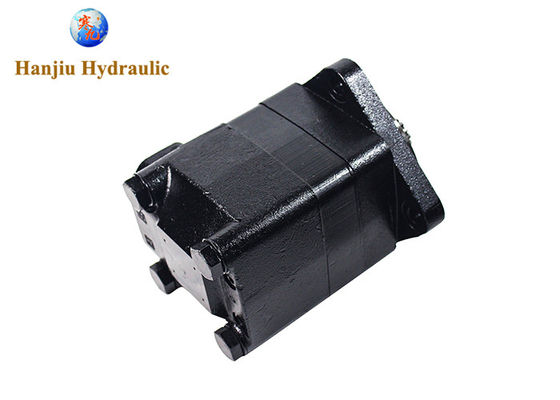

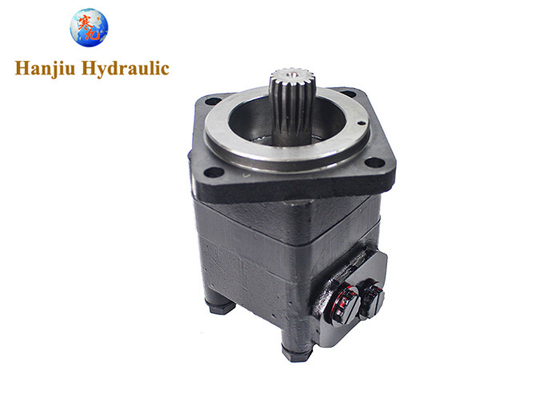

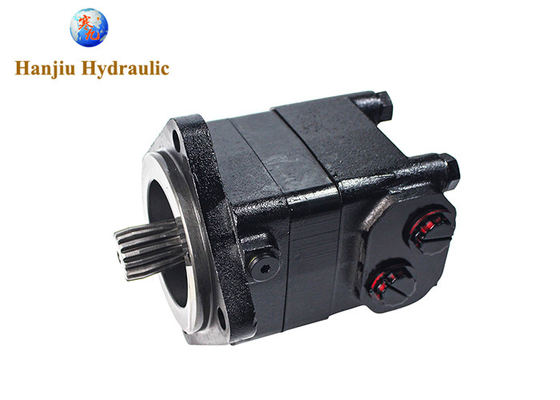

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model

Large Image : Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMTS

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get the best offer
Packaging Details:	Box, Pallet
Delivery Time:	0 - 45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:

Orbital Hydraulic Motor

Model Number:

BMTS-500-E-S

Size:

500 Ml/r

Manufacturer:

Hanjiu

Highlight:

OMTS 500 Agricultural harvester hydraulic motor

BMTS500 Agricultural harvester hydraulic motor

Agricultural Harvester Hydraulic Motor

Welcome!
Hydraulic Motor manufacturer from China specializes in high performance hydraulic motors for harvesting, mixing, sweeping, lifting, conveying and various applications
For example, agriculture, tranportation, engineering, construction, , forestry, etc.
Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

Agricultural harvester hydraulic motor, BMTS500 OMTS 500 short shaft bearingless model

Quick review:

BMTS-500-E-S

displacement	500ml/r
flange	4-bolt
shaft	short shaft 12-DP12/24
port	1-1/16-12 UN O-ring

Technical Specs.:

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 0

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 1

Measurement for BMT series Hydraulic Motors:

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 2

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 3

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 4

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 5

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 6

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 7

About the manufacturer Hanjiu:

HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, mixing machine manufacturer in Italy, sweeping machine manufacturer in UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoos, Eaton, Parker, and White are all good partners for us. If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your needs.

Agricultural Harvester Hydraulic Motor BMTS500 OMTS 500 Short Shaft Bearingless Model 8
