OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

Large Image : OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMSY-500-E2-G-SU

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact seller for latest offer
Packaging Details:	Box, carton, pallet
Delivery Time:	0 - 35 work days
Payment Terms:	T/T
Supply Ability:	200000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Model No.:

BMSY-500-E2-G-SU

Manufacturer:

Hanjiu

Brand:

Hanjiu

Highlight:

500cc hydraulic motors

7/8-14UNF port hydraulic motors

31.75mm key shaft hydraulic motors

BMSY series hydraulic motors 500cc 2-bolt flange 31.75mm key shaft 7/8-14UNF port

Quick review:

BMSY-500-E2-G-SU

Port Size: 7/8-14UNF O-RING
flange: 2 bolt
displacement: 500cc
Shaft:31.75 mm
Port Location:side ported

BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.

Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 400	BMSY 500
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	394	475
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185	155
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225	185
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	880	910
	int.	240	300	370	430	466	540	658	980	990
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11	9
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	12	11
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	16	14
	int.	21	21	21	21	16	16	14	19	15
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	21	17.5
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6	14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

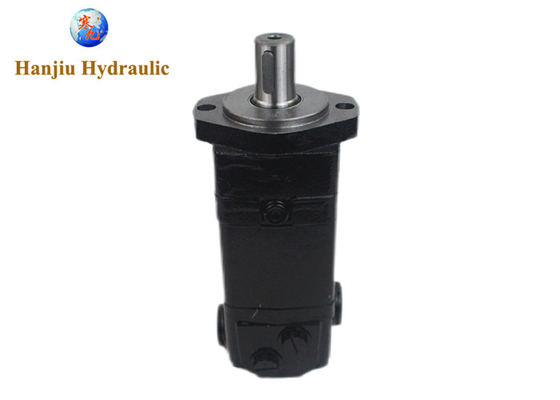

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port 0

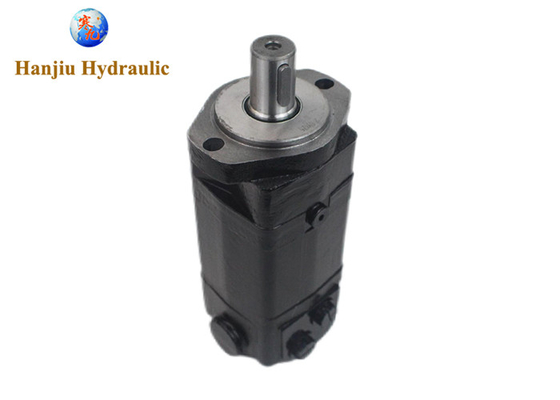

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port 1

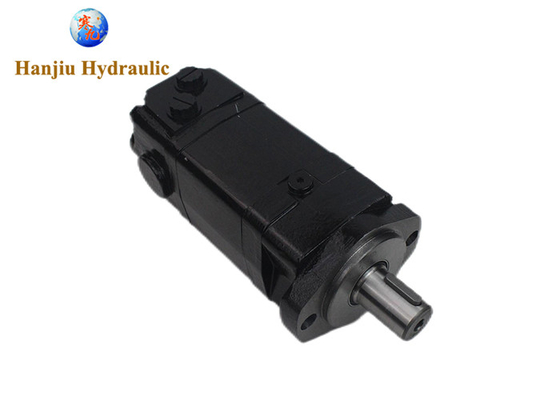

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port 2

More BMSY series hydraulic motors available from us:

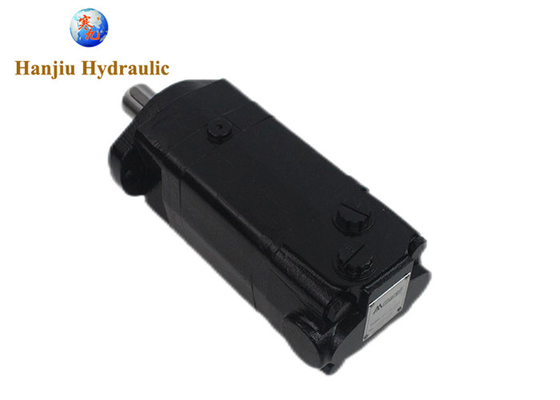

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port 3

HANJIU is an expert in hydraulic motors . HANJIU orbit motors have complete specifications, fast manufacturing, reasonable prices and fine quality. HANJIU enthusiastically looks forward to working for people all over the world

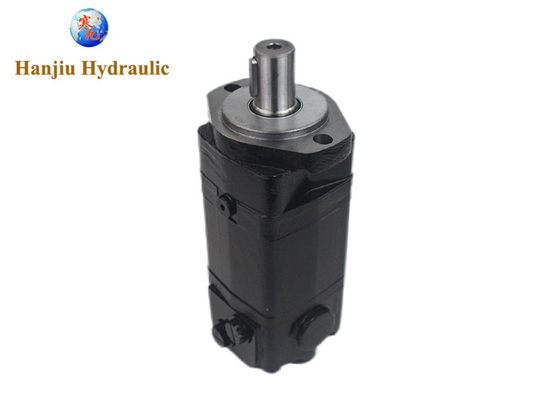

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port 4

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
