Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor

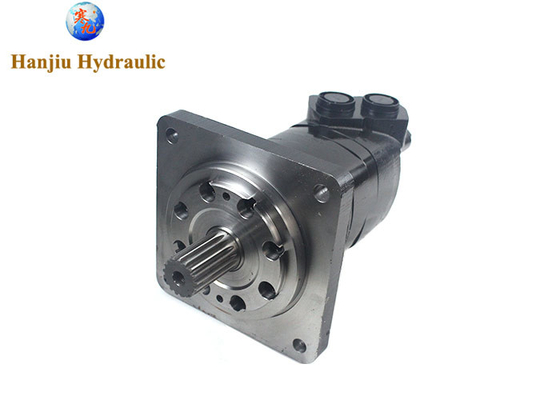

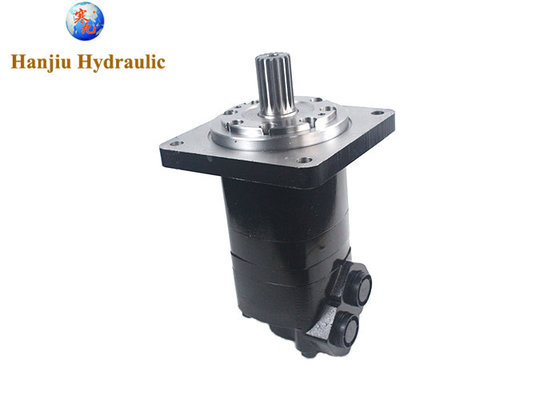

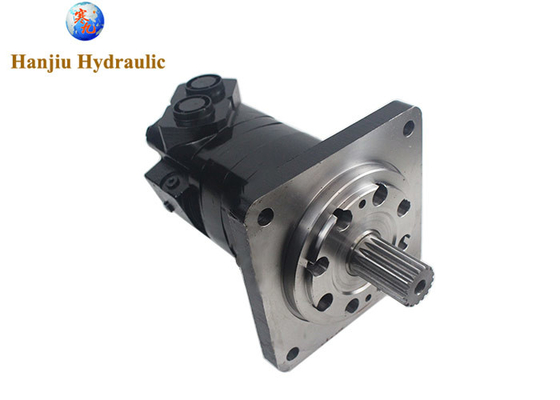

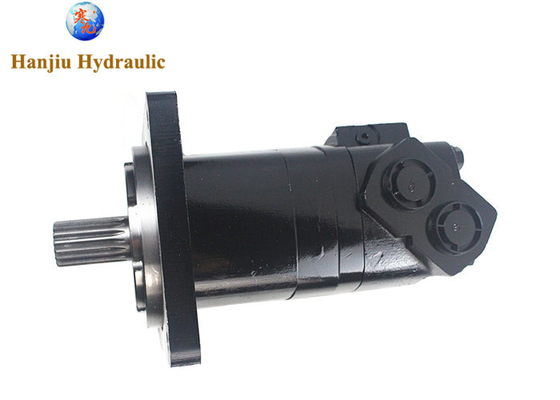

Large Image : Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE/ISO9001:2015
Model Number:	112-1131-006

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Type:	Charlynn 6000 Series	Flange:	4 Bolts Big Square Flange
Shaft:	17 Teeth Spline Shaft	Displacement:	312cc
Max Speed:	Cont.304/int.455rpm	Material:	Cast Iron
Highlight:	112-1131-006 spline shaft hydraulic motor , low speed high torque hydraulic motor , big flange hydraulic motor

hydraulic low speed high torque motor 112-1031-006 spline shaft big flange charlynn 6000 motor

Product details

order type:BMK6

displacement:312 cubic centimetre per revolution

Flange:Standard; (SAE D) 4 Bolt; 152.4 [6.00] Pilot Dia. 15.24 [.600] Dia. Holes On 228.6 [9.00] Dia. Bolt Circle; (SAE D) With O-Ring Groove To Accept Arp-163 O-Ring

shaft:spline

ports:1.3125-12 UN-2B SAE O-Ring Ports - Staggered Ports

fit:Mobile equipment, Snow Removal, Mowing, Spayer, Trencher, Wood products

quality:aftermarket OEM quality

Main Specifications:

Type		BMK6 200	BMK6 250	BMK6 315	BMK6 400	BMK6 500	BMK6 630	BMK6 800	BMK6 1000
Geometric displacement (cm3 /rev.)		195.6	246.1	311.6	391.3	490.8	623	802.4	981.6
Main speed(rpm)	cont.	765	610	480	382	304	240	186	152
	int.	865	830	690	570	455	360	280	230
Max torque N.M	cont.	565	710	920	1160	1445	1480	1580	1675
	int.	840	1080	1325	1625	1880	1890	1880	1860
Max pressure drop (Mpa)	cont.	20	20	20	20	20	17.5	14	14
	int.	30	30	30	30	27.5	22.5	15.5	14
Weight (kg)		26.3	26.8	27.3	28	28.8	29.6	30.5	32

Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor 0

CHARLYNN 6000 SERIES MOTORS WE CAN SUPPLY

112-1001-006	112-1375-006	112-1145-006	112-1093-006	112-1069-006
112-1005-006	112-1383-006	112-1150-006	112-1094-006	112-1076-006
112-1006-006	112-1446-006	112-1158-006	112-1095-006	112-1080-006
112-1007-006	112-1456-006	112-1161-006	112-1096-006	112-1088-006
112-1011-006	112-1528-006	112-1162-006	112-1097-006	112-1089-006
112-1012-006	112-1560-006	112-1163-006	112-1098-006	112-1090-006
112-1013-006	113-1019-006	112-1164-006	112-1099-006	112-1091-006
112-1017-006	113-1020-006	112-1166-006	112-1104-006	112-1092-006
112-1018-006	113-1021-006	112-1180-006	112-1107-006	113-1075-006
112-1019-006	113-1022-006	112-1182-006	112-1108-006	113-1076-006
112-1020-006	113-1023-006	112-1193-006	112-1109-006	113-1077-006
112-1021-006	113-1025-006	112-1206-006	112-1111-006	113-1078-006
112-1022-006	113-1026-006	112-1207-006	112-1115-006	113-1079-006
112-1023-006	113-1027-006	112-1209-006	112-1116-006	113-1080-006
112-1024-006	113-1028-006	112-1213-006	112-1128-006	113-1081-006
112-1025-006	113-1047-006	112-1214-006	112-1131-006	113-1082-006
112-1026-006	113-1051-006	112-1215-006	112-1138-006	112-1320-006
112-1052-006	113-1052-006	112-1216-006	113-1083-006	112-1324-006
112-1053-006	113-1053-006	112-1217-006	113-1084-006	112-1334-006
112-1054-006	113-1057-006	112-1218-006	113-1085-006	112-1336-006
112-1055-006	113-1058-006	112-1219-006	113-1086-006	112-1345-006
112-1056-006	113-1059-006	112-1220-006	113-1087-006	112-1350-006
112-1057-006	113-1063-006	112-1227-006	113-1093-006	112-1359-006
112-1058-006	113-1064-006	112-1229-006	113-1095-006	112-1360-006
112-1059-006	113-1065-006	112-1230-006	113-1100-006	112-1067-006
112-1060-006	113-1066-006	112-1247-006	113-1101-006	112-1068-006
112-1061-006	113-1067-006	112-1253-006	113-1108-006	113-1073-006
112-1062-006	113-1068-006	112-1254-006	113-1121-006	113-1074-006
112-1063-006	113-1069-006	112-1264-006	113-1133-006	112-1307-006
112-1064-006	113-1070-006	112-1287-006	113-1140-006	112-1309-006
112-1065-006	113-1071-006	112-1290-006	113-1143-006	113-1157-006
112-1066-006	113-1072-006	112-1305-006	113-1150-006	113-1165-006

Hydraulic Low Speed High Torque Motor 112-1131-006 Spline Shaft Big Flange Charlynn 6000 Motor 2
