Hydraulic High Pressure Section Valve HSSD 25 240 Liters Rotary Manual Control Valve With 1 Bank

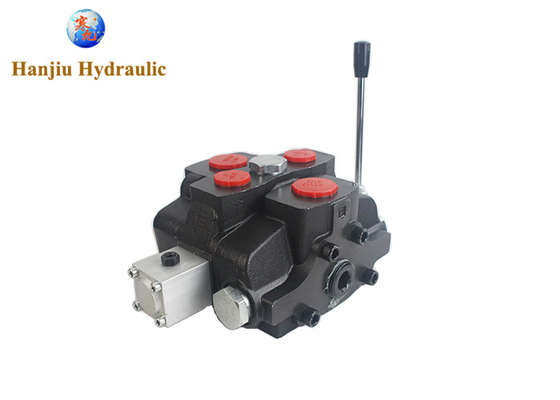

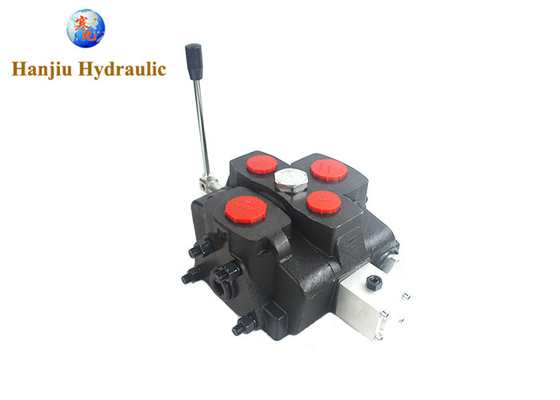

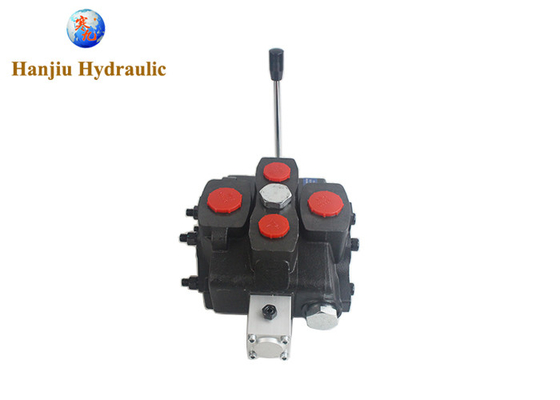

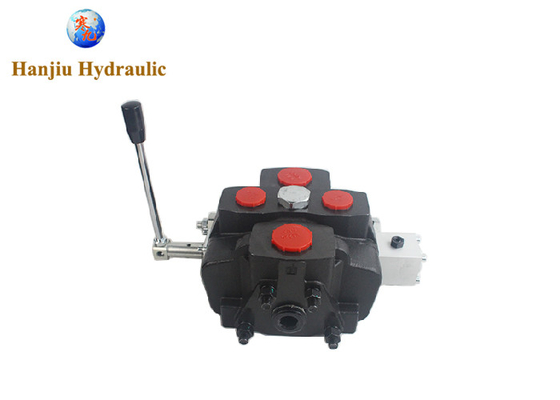

Large Image : Hydraulic High Pressure Section Valve HSSD 25 240 Liters Rotary Manual Control Valve With 1 Bank

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	HSSD25-1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Hydraulic Valves	Model:	HSSD25-1
Apply To:	Construction Application,Cranes	Spool:	1 BANK
MAax Operation Pressure:	315 Bar	Control Type:	Rotary Manual Control
Highlight:	240liters rotary manual control valve , HSSD 25 rotary manual control valve , 1 bank rotary manual control valve

Hydraulic high pressure section valve HSSD 25, 240liters rotary manual control valve with 1 bank

Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.

- Fitted with a main pressure relief valve and a load check valve on every working section

- Available with parallel or series circuit.

- Optional carry--over port.

- A wide variety of service ports and circuit valves.

- Available manual, pneumatic, hydraulic, electro--hydraulic, and remote with flexible cables spool control kits.

flow rate	240liters
number of spools	1 spool
inlet section valve	side inlet, with relief valve
relief valve set pressure	315bar
inlet port size	G1
spool type	3 positon, double acting
handle side arrangement	rotary handle
spool cap side arrangement	3position, spring return,mantal control
working section arrangement	standard type
work port size	G3/4
outlet section type	top outlet
outlet port size	G1

Hydraulic High Pressure Section Valve HSSD 25 240 Liters Rotary Manual Control Valve With 1 Bank 0

APPLICATION

monoblock valve for Fork Lifts applications

Mobile Machines

Tractor and Front Loader applications

Front-end Loaders applications

Skid Steer Loader applications

Lifting Applications

Mini and Midi-excavator applications

Hydraulic valves are widely used in various hydraulic systems, such as machinery manufacturing, aerospace, automobile manufacturing and other fields. With the development of technology, the types and functions of hydraulic valves are constantly enriched and improved. For example, the advent of electro-hydraulic proportional control valves has made the control of hydraulic systems more precise and flexible.

As an important control element in hydraulic transmission, hydraulic valve plays an irreplaceable role in the hydraulic system. Through reasonable design and application, it can give full play to its control function and improve the efficiency and stability of the hydraulic system.

types of hydraulic valves

What is a hydraulic

Hydraulic High Pressure Section Valve HSSD 25 240 Liters Rotary Manual Control Valve With 1 Bank 5

Hydraulic High Pressure Section Valve HSSD 25 240 Liters Rotary Manual Control Valve With 1 Bank 6
