BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

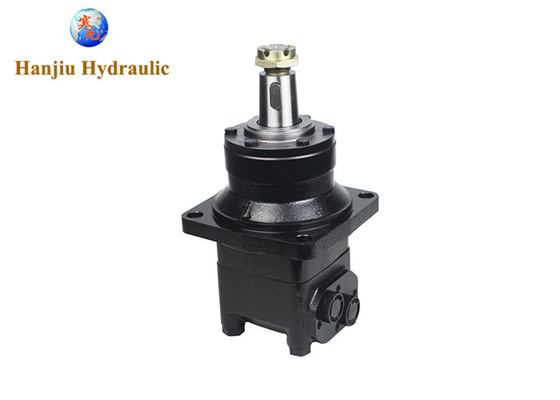

Large Image : BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMT-500-W-T-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	Box, carton, pallet
Delivery Time:	35 work days
Payment Terms:	T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Product:	Hydraulic Motor	Model No.:	BMT-500-W-T-D
Displacement:	500 Cc	Brand:	Hanjiu
Highlight:	BMT Hydraulic Wheel Motor

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

Quick review:

Model No.	BMT-500-W-T-D
Shaft	45mm Cone shaft 1:10
Geometric displacement	500 cm³

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
displacement (cm3/rev. )		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N.m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (KW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (KW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max.pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	rated	80	100	100	100	100	100	100	100	100
	cont.	100	125	125	125	125	125	125	125	125
	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (Mpa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

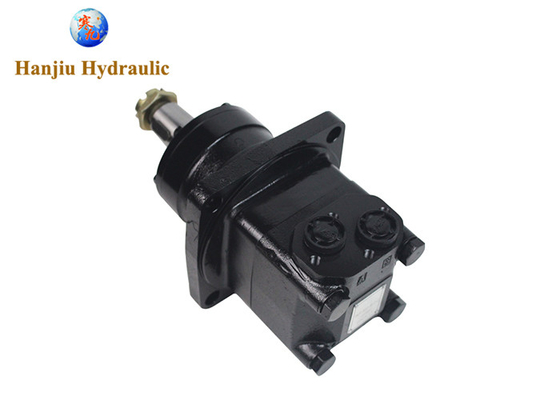

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation 0

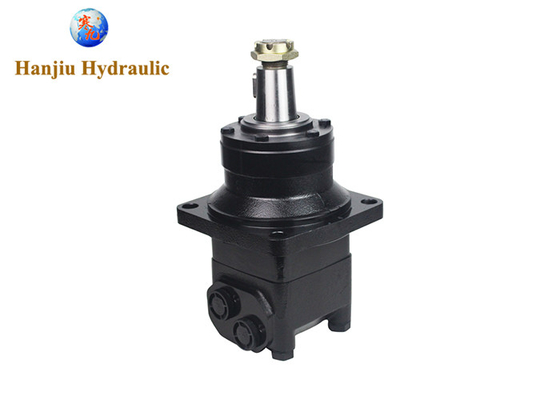

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation 1

Dimentions:

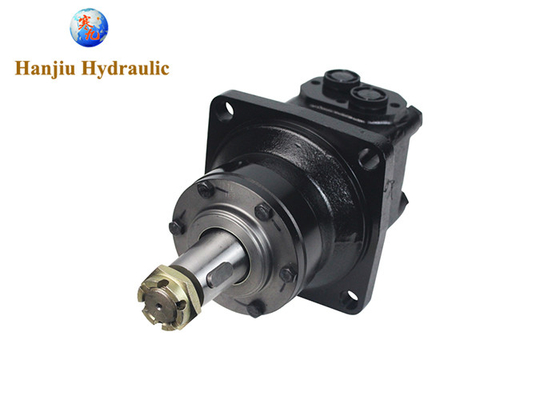

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation 2

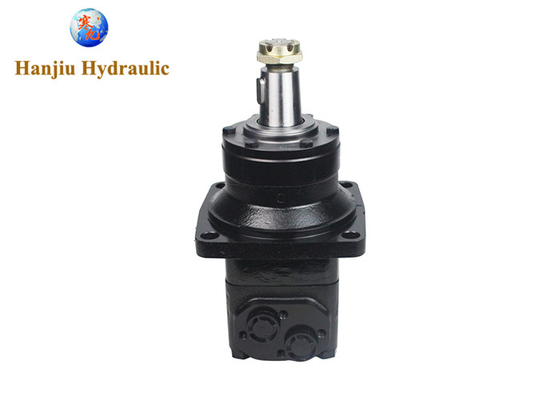

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation 3

More BMT series hydraulic motor available:

BMT 160	BMTE 230	BMTJ 230
BMT 200	BMTE 230	BMTJ 230
BMT 250	BMTE 250	BMTJ 250
BMT 315	BMTE 315	BMTJ 315
BMT 400	BMTE 400	BMTJ 400
BMT 500	BMTE 500	BMTJ 500
BMT 630	BMTE 630	BMTJ 630
BMT 800	BMTE 800	BMTJ 800

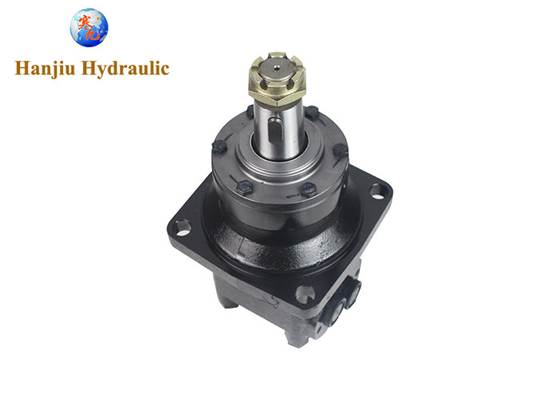

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation 4

More hydraulic motors available:

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation 5

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
