349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader

Large Image : 349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	101s

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000000 Sets Per Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Steering Pump Valve	Oil Port:	G1/2,SAE Ports
Quality:	Grade AAA	Material:	Cast Iron
Applications:	Cat 3496093	Warrty:	12 Months
Highlight:	Metering Hydraulic Steering Units Pump Assembly , Wheel Loader Hydraulic Steering Units , Metering Hydraulic Steering Units

349-6093 Pump Assembly-Metering Hydraulic steering units for wheel loader

Product Name:Hydraulic Motor
Part Number:349-6093 3496093
Application: Compatible with CAT 962M Z 962 980 982 966H 962H 966L 986H 966 950H 972H 950K 962L 962K 950M 950 950L 962M 972 972L 980L 950M Z 966 GC WHEEL LOADER IT62H INTEGRATED TOOLCARRIER TR16-C7.1 TRANSMISSION

Part number	101S series
Description	eaton 200-0740-002
Category	STEERING UNITS
Sub-category	Carterpillar STEERING UNITS AND PARTS
Manufacturer	HANJIU
Weight	5.9kgs

Parameters	Series 101S----*
Function code	1,2,4							1,4
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated Flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure(Mpa)	17.5
Relief Valve Pressure Settings ( MPa)	06,07,08,10,12,14,15,16,17.5
Shock Valve Pressure Settings ( MPa)	12,13,14,16,18,20,21,22,23.5
Max.cont.back pressure	2.5
Weight(kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176

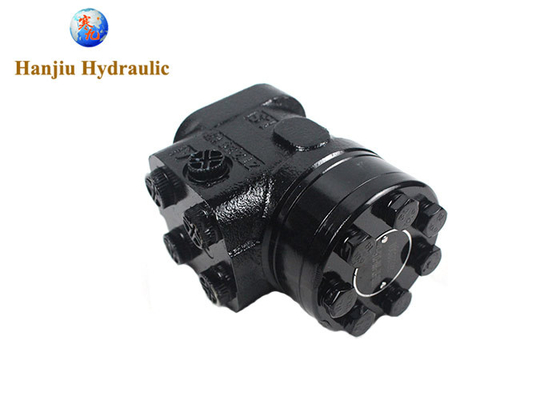

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader 1

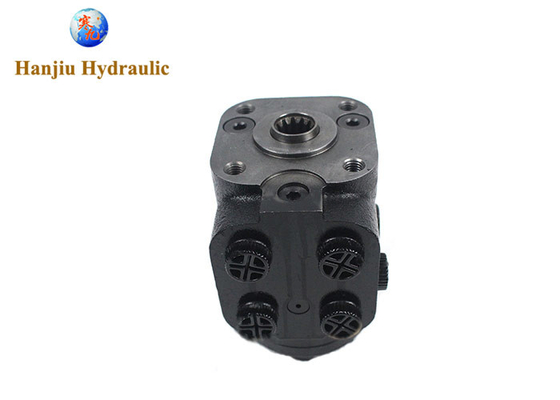

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader 2

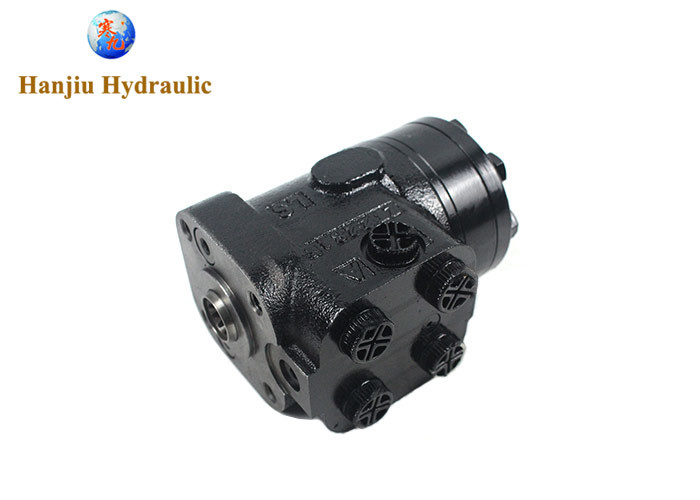

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader 3

other types can be made

211-1001-002
211-1002-002
211-1003-002
211-1004-002
211-1005-002
211-1006-002
211-1007-002
211-1008-002
211-1009-002
211-1010-002
211-1011-002
211-1012-002
211-1015-002
211-1016-002

263-1032-052

263-1032-072

263-1097-082

263-1099-002

263-1104-002

263-1105-002

263-1161-002

263-1163-002

263-1166-002

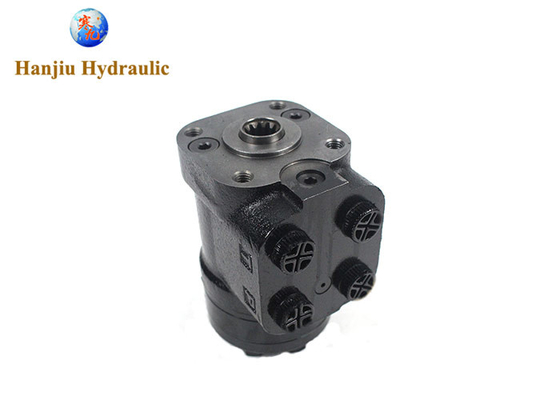

349-6093 Pump Assembly Metering Hydraulic Steering Units For Wheel Loader 4
