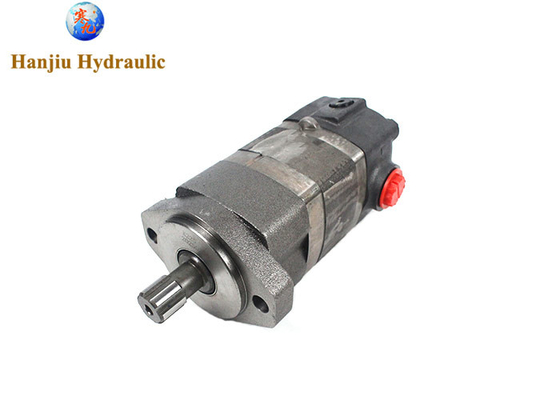

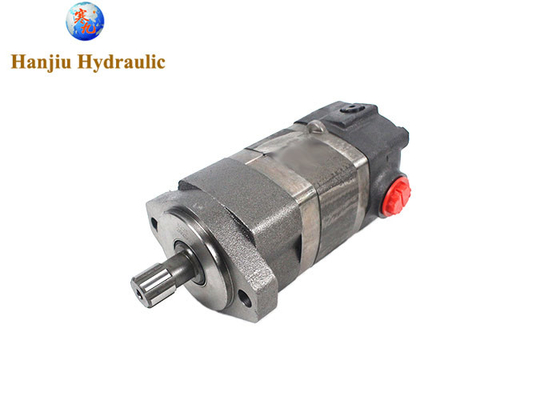

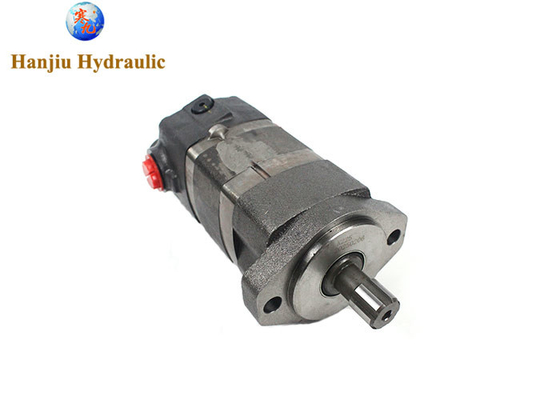

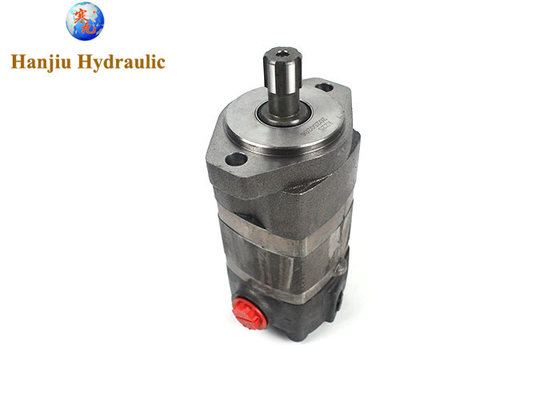

CharLynn 104-1058-006 Interchange Hydraulic Motor New Produce Low Speed High Torque Motor

Large Image : CharLynn 104-1058-006 Interchange Hydraulic Motor New Produce Low Speed High Torque Motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	104-1058-006

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Low Speed High Torque Motor	Material:	Cast Iron
Displacement:	250ml/r	Flange:	2 Bolt Standard Flange
Port Size:	1.0625-12 UN-2B SAE O-Ring Ports	Drain Line:	.4375-20 UNF-2B SAE O-Ring Port
Highlight:	CharLynn 104-1058-006 Hydraulic Motor , Interchange Hydraulic Motor , CharLynn 104-1058-006 Interchange Hydraulic Motor

CharLynn 104-1058-006 Interchange Hydraulic Motor New produce low speed high torque motor

Quick review:

Model No.: BMK2-250= 104-1058-006

Rotation Reversible
Mount Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A)
Shaft :spline
Ports 1.0625-12 UN-2B SAE O-Ring Ports - Ports Oriented 180 Deg To Each Other
Case Drain .4375-20 UNF-2B SAE O-Ring Port
Shpg. 32 lbs.

displacement	244.3 cubic centimetre per revolution
speed	308-462 rpm
torque	660-820 nm
mounting	2 Bolt SAE A Flange
shaft	SAE6B Spline shaft

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

CharLynn 104-1058-006 Interchange Hydraulic Motor New Produce Low Speed High Torque Motor 0

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

CharLynn 104-1058-006 Interchange Hydraulic Motor New Produce Low Speed High Torque Motor 3

applications

Swing motor, Brush Cutters & mowers, Harvesting equipment

features

Standard, wheel or bearingless configurations
Lowest pressure drop motor in the industry
Highly-efficient Geroler motor provides energy savings

CharLynn 104-1058-006 Interchange Hydraulic Motor New Produce Low Speed High Torque Motor 4
