6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer

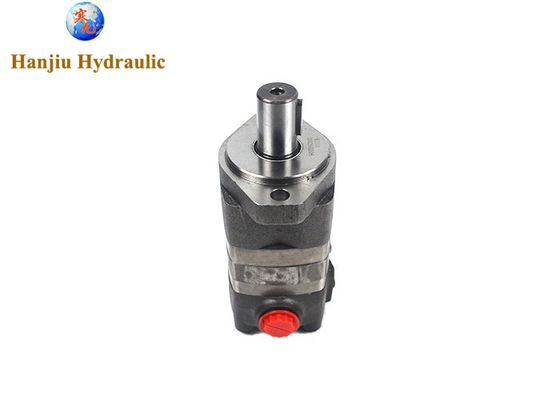

Large Image : 6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	104-1062-006

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Low Speed High Torque Motor	Material:	Cast Iron
Displacement:	100ml/r	Flange:	2 Bolt Standard Flange
Port Size:	1.0625-12 UN-2B SAE O-Ring Ports	Drain Line:	.4375-20 UNF-2B SAE O-Ring Port
Highlight:	Petroleum Trailer Hydraulic Motor , 6.2 Ci Hydraulic Motor , 104-1062-006 Hydraulic Motor

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 for Petroleum Trailer

Quick review:

Model No.: BMK2-100= 104-1062-006

Rotation Reversible
Mount Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A)
Shaft :1 1/4 Inch Straight
Ports 1.0625-12 UN-2B SAE O-Ring Ports - Ports Oriented 180 Deg To Each Other
Case Drain .4375-20 UNF-2B SAE O-Ring Port

displacement	100 cubic centimetre per revolution
speed	742-924 rpm
torque	295-445 nm
mounting	2 Bolt SAE A Flange
shaft	1 1/4 Inch Straight

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer 0

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

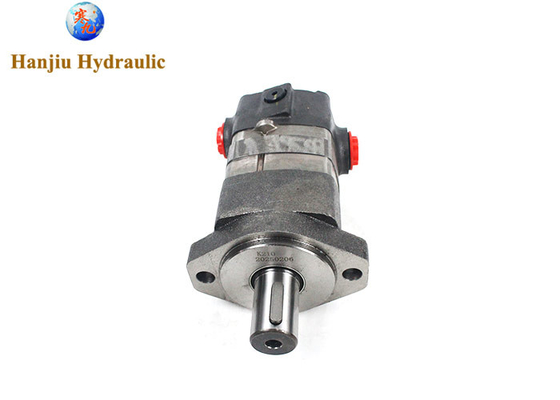

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer 4

80cc	100cc	130cc	160cc	195cc	245cc	305cc	395cc	490cc
104-1001-006	104-1002-006	104-1003-006	104-1004-006	104-1005-006	104-1006-006	104-1007-006	104-1143-006
104-1037-006	104-1038-006	104-1039-006	104-1040-006	104-1041-006	104-1042-006	104-1043-006	104-1044-006
104-1022-006	104-1023-006	104-1024-006	104-1025-006	104-1026-006	104-1027-006	104-1028-006	104-1228-006	104-1420-006
104-1061-006	104-1062-006	104-1063-006	104-1064-006	104-1065-006	104-1066-006	104-1067-006	104-1068-006	104-1421-006
104-1029-006	104-1030-006	104-1031-006	104-1032-006	104-1033-006	104-1034-006	104-1035-006	104-1229-006	104-1422-006
104-1087-006	104-1088-006	104-1089-006	104-1090-006	104-1091-006	104-1092-006	104-1093-006	104-1094-006	104-1423-006
