DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve

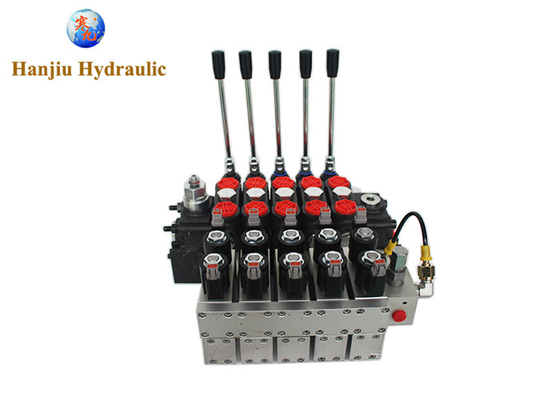

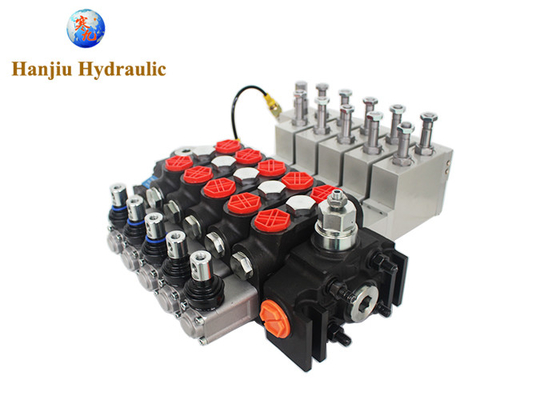

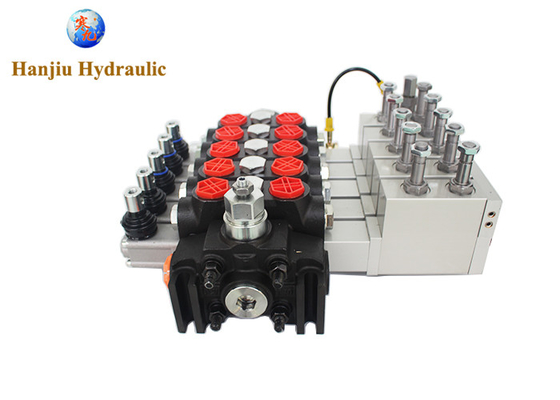

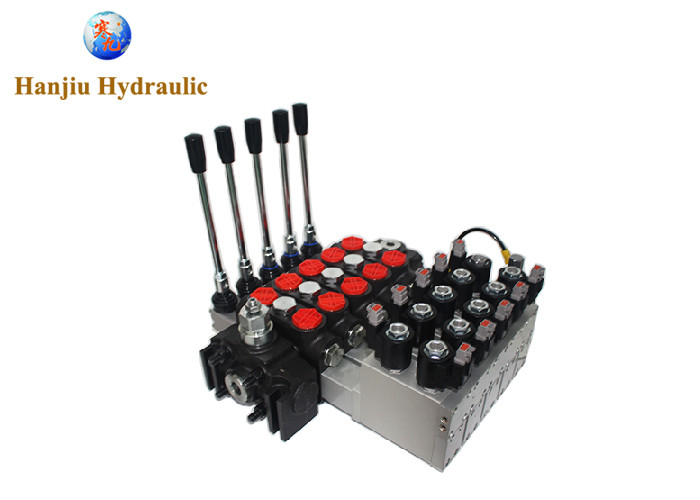

Large Image : DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	DCV140

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	19 work days
Payment Terms:	T/T, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Hydraulic Valve	Model No.:	DCV140
Control Type:	Electric-hydraulic Control	Max Pressure:	350bar
Manufacturer:	Hanjiu	Flow:	140 Lpm
Aplication:	Heavy Duty, Drilling Machine, Sanitation	Delivery Time:	35 Days
Highlight:	DCV140 Directional Control Valve , Electro-Hydraulic control Directional Control Valve , 140 liters section valve

DCV140 Electro-Hydraulic control Directional Control Valve,140 liters section valve

High Quality 5-spool electro-hydraulic sectional directional valve (Dcv140 series)
with a rated flow of 36.8 GPM (140 L/min) and a maximum pressure of 350 bar
(5100 psi). Ideal for material handling, construction, agriculture, and industrial
vehicle applications.
Tags: 140LPM DC12V Valve, 100LPM Electric Solenoid Control Valve, 36.8GPM,

36.8GPM Valve, Directional Valve, Electro-hydraulic Valve, hydraulic control valve,
hydraulic valve, Sectional Directional Valve, Solenoid Control Valve

Quick review:

Model No.	DCV140-5
Series	DCV Series
Max pressure	350 bar ( 5076 psi)
Operating range	15 - 75 mm2/s ( 15 ~ 75 cst)
Viscosity	min, 12 mm2/s, max, 400 mm2/s
Structure	Sectional
Spool	5 banks
Control	electric-hydraulic control
Spool type	3 position Spring return

DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve 0

Specifications:

DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve 4

DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve 5

DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve 6

More valve we have and their applications:

Product Series	Application equipment
DCV	Drilling rigs, cranes, flatbed trucks, special operation vehicles (sanitation trucks, garbage transport trucks, road sweepers), dump trucks, truck-mounted cranes and other construction machinery
P40/80/120	Tractors, busy at both ends, flatbed trucks, truck-mounted cranes, mainly agricultural equipment
P81	wood splitter
Wolf SD5/8/11	Same as P40, it can also be used on drilling rigs and truck-mounted cranes.
Bucher DS15	Same as DCV, can replace part of DCV according to installation size according to flow pressure.
RD5100/5200/5300	Tractors, busy at both ends, flatbed trucks, truck-mounted cranes, mainly agricultural equipment
HDCF50	Corn harvester, wheat ear picker, large weeder, peanut harvest/fruit picking machine and other crop harvesting machinery
HSV6/9	Modify the excavator, change the excavator movement and other machinery
HSGK	Special for scissor-type aerial work vehicles
ZT12/20	Sprayer, can replace DCV40, P40/80 and other functions
CDB15/20	Loaders, forklifts (oil forks), drilling rig traveling valves, drilling rig dismounting valves
DF50/80	tractor
Product series with L	loader

DCV140 Electro Hydraulic Control Directional Control Valve 140 Liters Section Valve 7
