P40 Series One Lever Manual Control Type Monoblock Valve With 3 Positions Single Acting At A Port

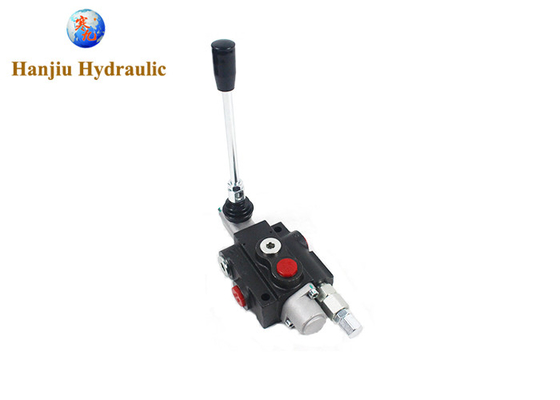

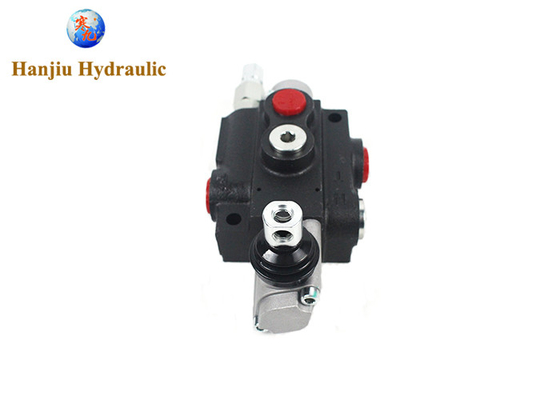

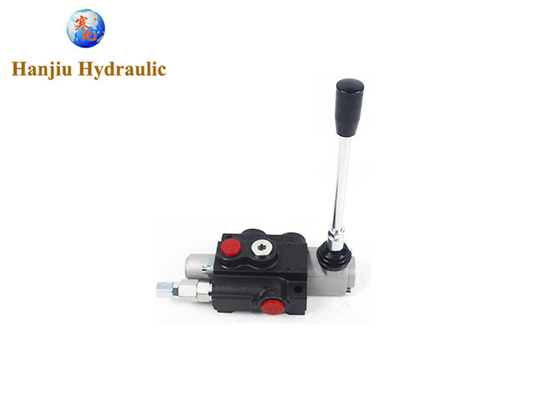

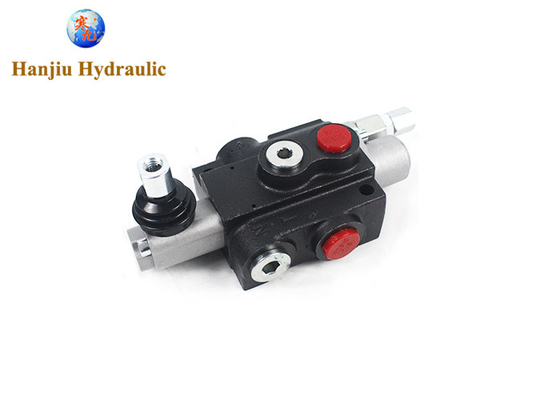

Large Image : P40 Series One Lever Manual Control Type Monoblock Valve With 3 Positions Single Acting At A Port

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	P40-1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Monoblock Valve	Material:	Cast Iron
Apply To:	Sanitation Vehicles	Spool:	1 Spool
Max Operation Pressure:	250 Bar	Control Type:	Mobile Control Type
Highlight:	3 Positions Monoblock Valve , Single Acting Monoblock Valve , P40 Series Monoblock Valve

P40 Series one lever manual control type, monoblock valve with 3 positions single acting at A port

type code

P40-1-250-U14-C1ST5D1-U12-U14

Code: 40
Sections: 1
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: Standard handle
Spool Function: 3 Positions, Single Acting at A,A Closed at Neutral
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8

Application :

Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles

flow rate	40 liters
number of spools	1 spool
inlet section valve	side inlet, with relief valve
relief valve set pressure	180bar
inlet port size	G3/8
spool type	3 Positions, Single Acting at A,A Closed at Neutral
handle side arrangement	standard type
spool cap side arrangement	3position, spring return,manual control,detent control,
working section arrangement	standard type
work port size	G3/8
outlet section type	top outlet,side
outlet port size	G3/8
