BMR / BMRS / BMRWN Geroler Orbital Motors Wheel Mounting 80cc 32mm Straight Shaft

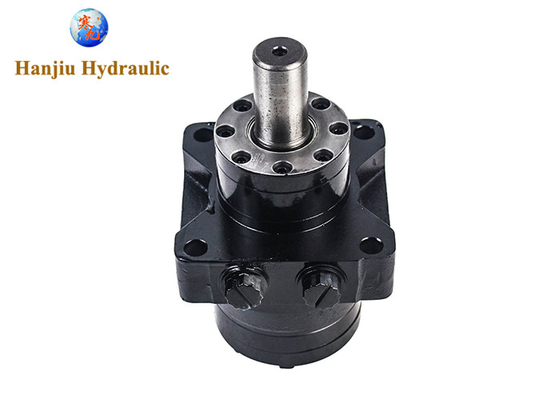

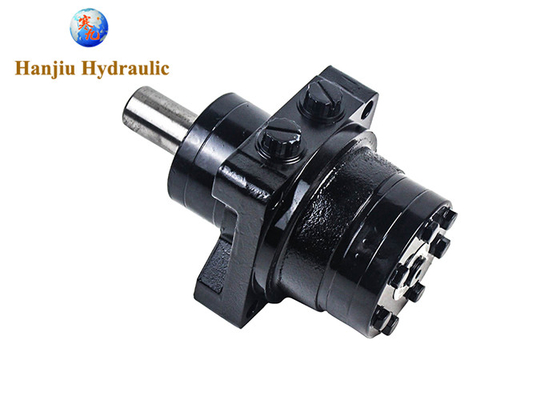

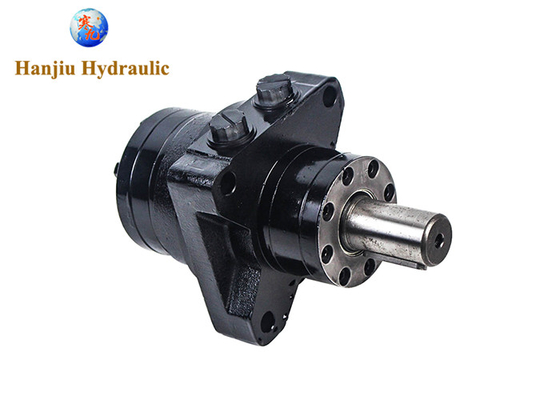

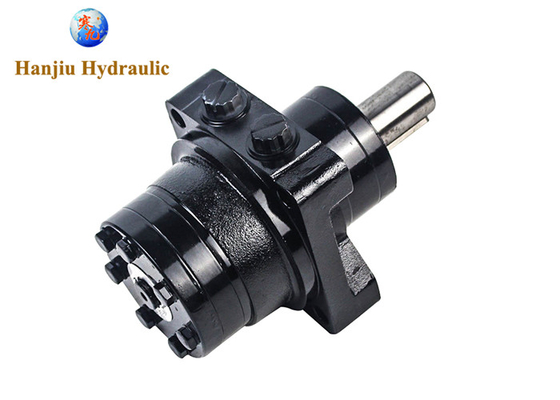

Large Image : BMR / BMRS / BMRWN Geroler Orbital Motors Wheel Mounting 80cc 32mm Straight Shaft

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMRWN-80-B-M

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to get a quote
Packaging Details:	Box, Pallet
Delivery Time:	0 - 30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Item:

Orbit Hydraulic Motor

OEM #:

BMRWN-80-B-M

Manufacturer:

Hanjiu

Displacement:

80 Ml/r

Highlight:

BMRS Geroler Orbital Motors

80cc Geroler Orbital Motors

32mm Geroler Orbital Motors

BMR / BMRS / BMRWN Geroler Orbital Motors, Wheel Mounting, 80cc, 32mm straight shaft

DESCRIPTION

The BMR/BMRS series advanced GEROLER gear set, shaft distribution flow, hydraulic motors are a compact, low noise, high efficient high torque low speed design. The GEROLER gear set also affords a reliable smooth start up at low pressure.
The special design of the valve linkage and high pressure capability of the shaft seal provides a long operating life and these motors can be used in either series or parallel operation.
The low weight advanced construction design is manufactured in accordance with the requirements of ISO 9000-2000 quality system.

Model Number:

BMRWN-80-B-M

FEATURES
Mounting Flange: wheel mount.
Displacement Range (cm3/rev.): 80 [2.2 to 29.7 CIR]
Shafts Options: Parallel shaft (keyed),

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

More BMR series hydraulic motors availabel:

Displacement: 2.2 – 29.8 in³/rev

Cont. Torque: 53.1 – 427.8 lbf.ft

Continuous Speed: 120 – 1085 rpm
