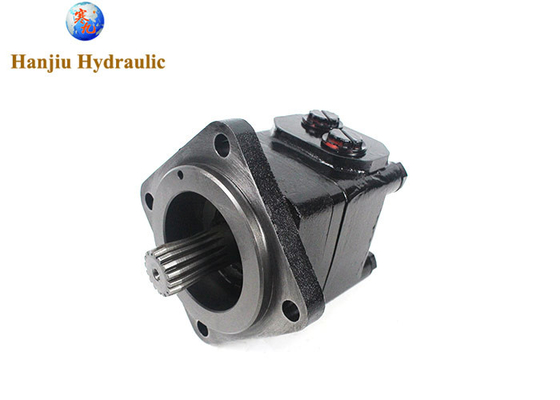

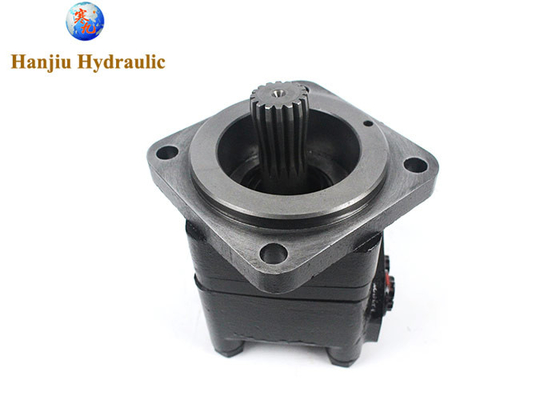

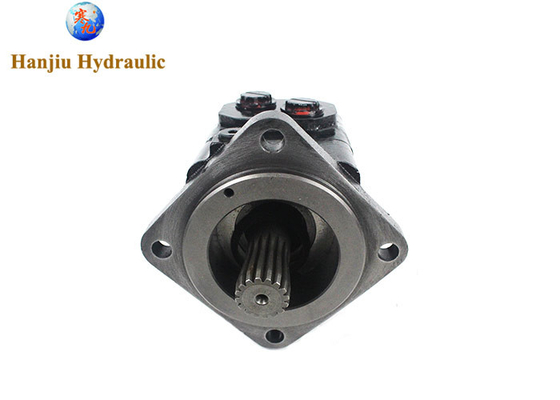

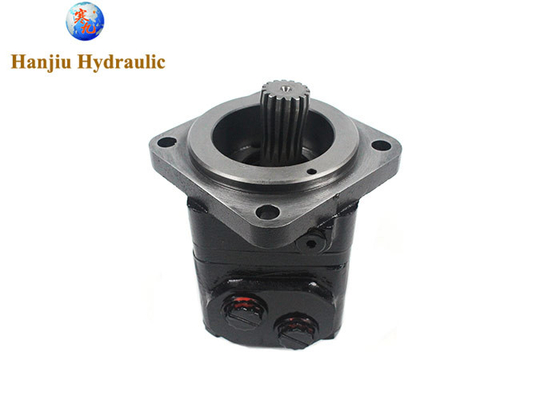

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor

Large Image : Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001:2015
Model Number:	BMTS250

Payment & Shipping Terms:

Minimum Order Quantity:	20 Sets
Price:	Negotiable
Packaging Details:	Carton Packing, and finally with pallet or wooden box
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100,000 Sets per year

Contact Now

Detailed Product Description

Categories:	Hydraulic Heavy Motor	Name:	BMTS250
Max.output:	Cont.31.2kw/int.35kw	Max Torque:	Cont.1080N.m/int.1260N.m
Flange:	Square Flange	Shaft:	Spline Shaft
Highlight:	Bearingless Orbit Hydraulic Motor , Orbit Hydraulic Motor BMTS250 , Interchangeable Orbit Hydraulic Motor

Orbit Hydraulic Motor BMTS250 Bearingless motor interchangeable charlynn 6000 series motor

Details

the order code BMTS-250-E-S1

Output volume (cc/rev): 250cc
max r.p.m.: 600
Torque max. (Nm): 730/880
Power max. (kW): 34.5
Pressure difference (bar): 200
Inlet pressure (bar): 280
Volume flow max. (l/min): 125
Engine version: with non-return valves
Connection: 1 1/16-12UN
Leakage oil connection: 7/16-UNF

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
displacement (cm3/rev. )		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N.m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (KW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (KW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max.pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	rated	80	100	100	100	100	100	100	100	100
	cont.	100	125	125	125	125	125	125	125	125
	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (Mpa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor 0

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor 1

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor 2

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor 3

Orbit Hydraulic Motor BMTS250 Bearingless Motor Interchangeable Charlynn 6000 Series Motor 4

HANJIU Technology is constantly increasing its product range and customer base with a customer and quality-oriented perspective and continues to grow. Our company, which set out with the principles of Respect for Humanity and Society, Respect for the Environment, Respect for the Product, Respect for Labor, and Ethical Trade Ethics, has the aim of representing the world's most respected quality brands in its sector on this very difficult and long path.
