Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader

Large Image : Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMV-630-4-A1-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Contact the selle to get the best offer
Packaging Details:	Carton, Box, Pallets
Delivery Time:	0 - 35 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	100000 sets per year

Contact Now

Detailed Product Description

Product:	Geroler Hydraulic Motor	Model No.:	BMV Motor
Displacement:	630 Cc	Brand:	Hanjiu
Material:	Cast Iron	Warranty:	1 Year
Highlight:	square flange Hydraulic Motor , BMV630 Hydraulic Motor , telescopic loader Hydraulic Motor

Hydraulic Motor BMV630 key shaft square flange orbit motor for telescopic loader

This series is the BMV series hydraulic motor
Model: BMV-630-4-A1-D
Displacement: 6300 ml/r
Flange: 4-Ø18 Square-flange Ø160, pilot Ø160X11
Shaft: 50mm key shaft
Rotation :Standard

Main Specifications:

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

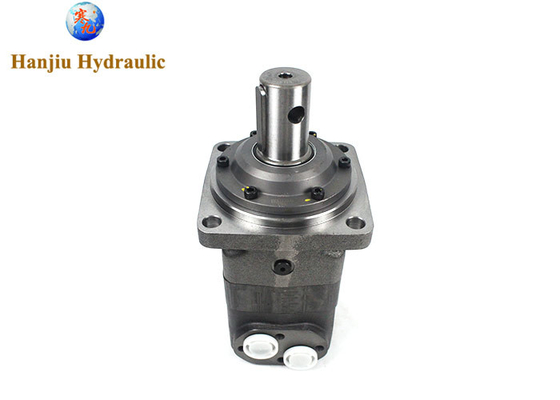

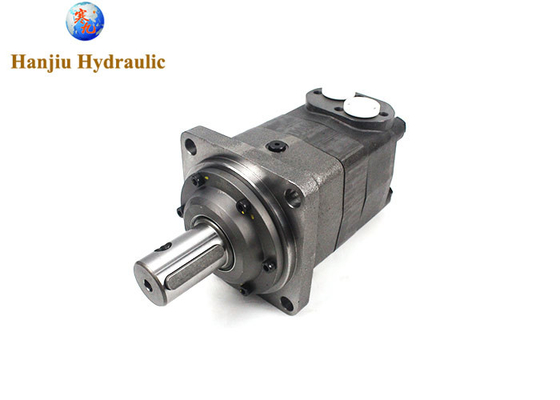

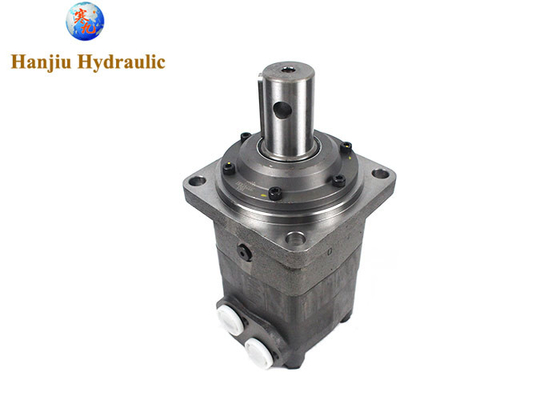

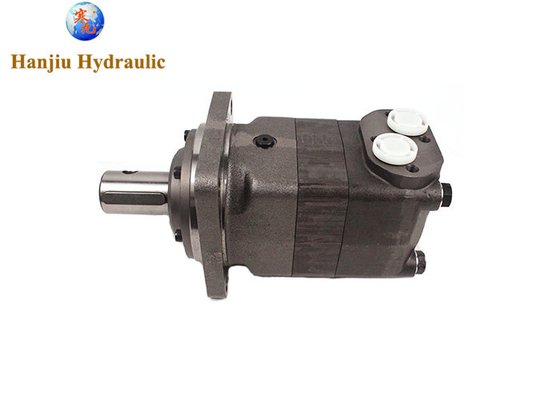

Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader 0

Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader 1

Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader 2

Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader 3

Hydraulic Motor BMV630 Key Shaft Square Flange Orbit Motor For Telescopic Loader 4

HANJIU Advantage:

Cost-effectiveness: Provides cost-effective engine solutions by optimizing production processes and supply chain management.

Independent R&D capability: Focusing on independent R&D, it owns a number of engine core technology patents and is capable of designing and producing high-performance orbital engines according to customer-specific needs.

High efficiency and energy saving: its products focus on high efficiency and energy saving, adopting advanced combustion technology and lightweight design to effectively reduce energy consumption and improve operational efficiency.

Global service network: We can respond quickly to customers' needs and provide timely technical support and after-sales service to ensure the stable operation of the engines worldwide.

Orbital motor suppliers have their own characteristics and advantages, if you still have questions about the selection and application of orbital motors, please feel free to contact us.
