BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier

Large Image : BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMT-315-W-FD-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the selle to get the best offer
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:

Hydraulic Motor

Size:

315 Ml/r

Flange:

Wheel Mount

Rotation:

CW And CCW

Highlight:

China Factory Hydraulic Motor

BMT Hydraulic Motor

BMT-315-W-FD-D Hydraulic Motor

BMT-315-W-FD-D, China Factory, BMT series High Troque Hydraulic Orbit Motor Supplier

Welcome!

Hydraulic Motor manufacturer from China specializes in high performance bidirectional hydraulic motors for

mixing, sweeping, lifting, conveying and various applications.

Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

BMT-315-W-FD-D

displacement	315ml/r
flange	4-Ø18 Wheel-flangeØ200, pilotØ160×7
ports	G3/4 Manifold Mount,4-M10 , G1/4
output shaft	Shaft Ø38.1 ,splined tooth 17-DP12/24
rotation	CW and CCW
paint	black

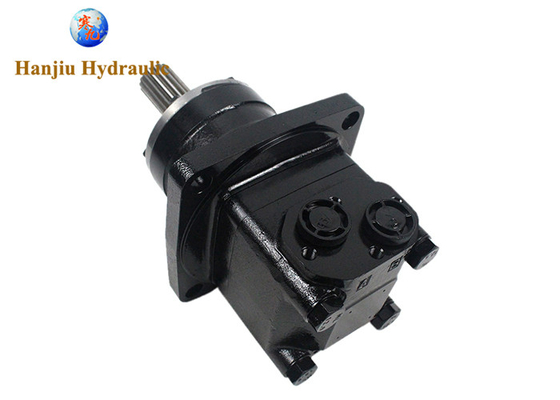

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 0

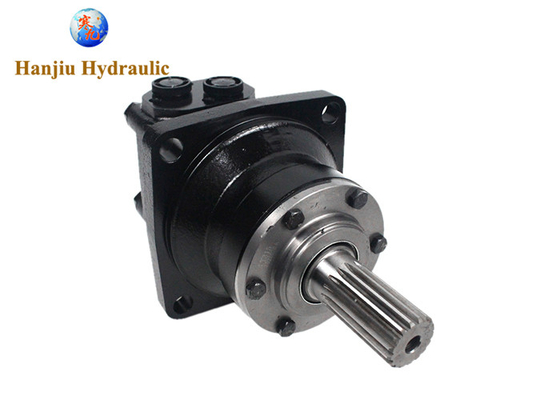

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 1

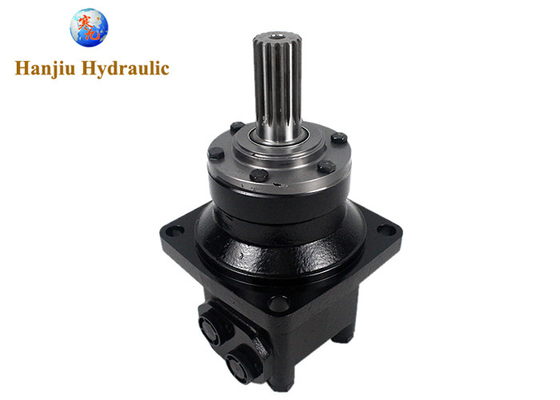

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 2

Specification:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
displacement (cm3/rev. )		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N.m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (KW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (KW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max.pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	rated	80	100	100	100	100	100	100	100	100
	cont.	100	125	125	125	125	125	125	125	125
	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (Mpa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

Mounting size of : BMT-315-W-FD-D

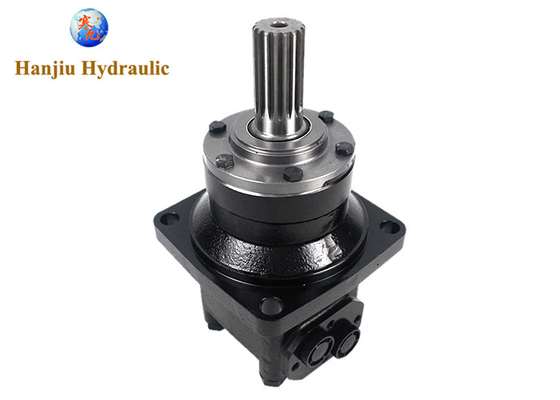

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 3

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 4

More mounting sizes available for BMT series:

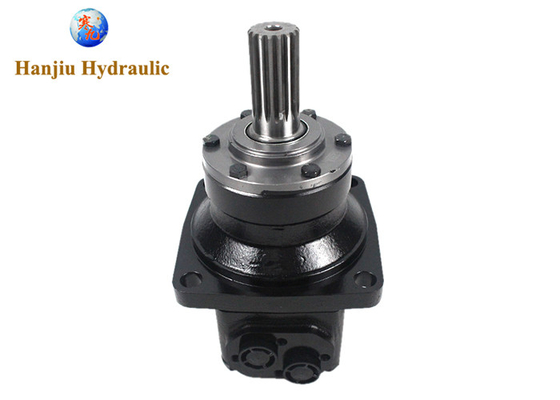

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 5

More BMT series motors available:

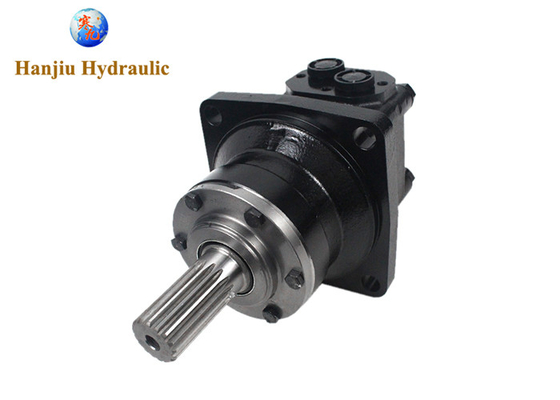

BMT Hydraulic Motor BMT-315-W-FD-D China Factory BMT Series High Troque Hydraulic Orbit Motor Supplier 6

Contact us to learn more about BMT series hydraulic motors
Welcome to send your original equipment code, which can help us quickly match the model suitable for your business
We hope that our experience and technology can create value for you.
