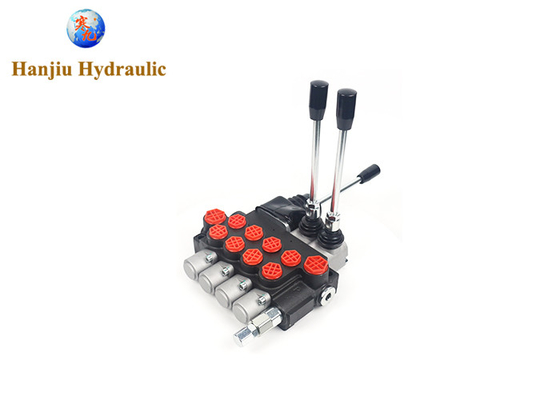

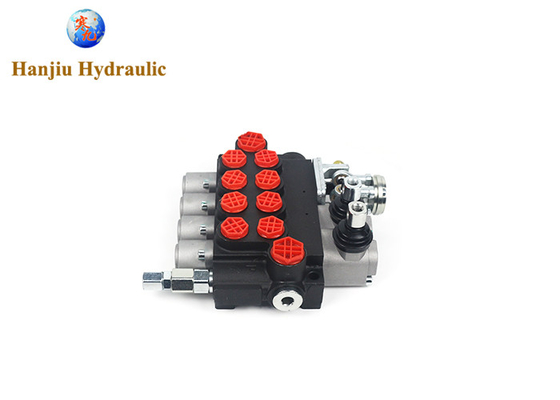

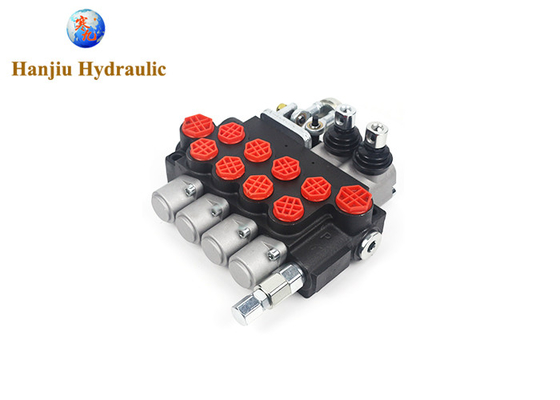

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves

Large Image : 40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	4P40

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Monoblock Valve	Material:	Cast Iron
Apply To:	Tractor Vehicles	Spool:	4 Spools
Max Operation Pressure:	250 Bar	Control Type:	Spring Return
Highlight:	40 Liters monoblock directional control valve , Hydraulic Monoblock Valve , Joystick Control Valve

Hydraulic Monoblock Valve 40 Liters with joystick control hydraulic distributor valves

type code

P40-4-200-G08--C1ST1D12-C4ST1D1-G06-G08

Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:200(bar)
Intlet Port Option: G1/2
Control Method Option: Standard handle/joystick control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G1/2
Outlet Port Option: G1/2

Application :

Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles

flow rate	40 liters
number of spools	2 spools+ 1 joystick
inlet section valve	side inlet, with relief valve
relief valve set pressure	200bar
inlet port size	G1/2
spool type	3 Positions, Double Acting
handle side arrangement	standard type
spool cap side arrangement	3position, spring return,manual control,detent control,
working section arrangement	standard type
work port size	G1/2
outlet section type	top outlet,side
outlet port size	G1/2

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 0

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 2

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 3

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 4

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 5

Code	Number of levers	Nominal flow rate L/min	Max. pressure P port bar
P40-A1-GKZ1	1	40	250
02P40-1A1A1-GKZ1	2	40	250
03P40-1A1A1A1-GKZ1	3	40	250
04P40-1A1A1A1A1-GKZ1	4	40	250
05P40-1A1A1A1A1A1-GKZ1	5	40	250
06P40-1A1A1A1A1A1A1-GKZ1	6	40	250
07P40-1A1A1A1A1A1A1A1-GKZ1	7	40	250

Different types

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 6

40 Liters Hydraulic Monoblock Valve With Joystick Control Hydraulic Distributor Valves 7
