Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006

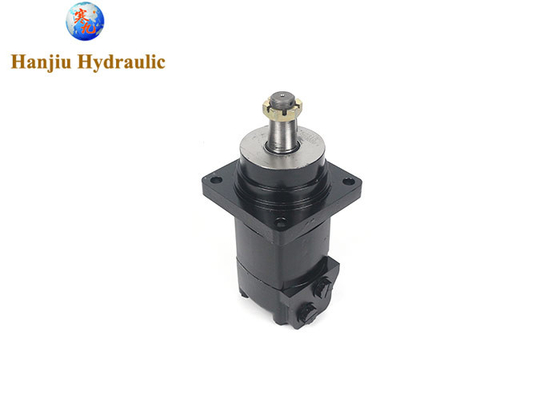

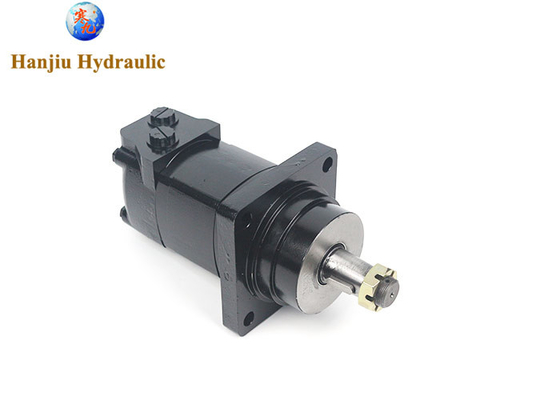

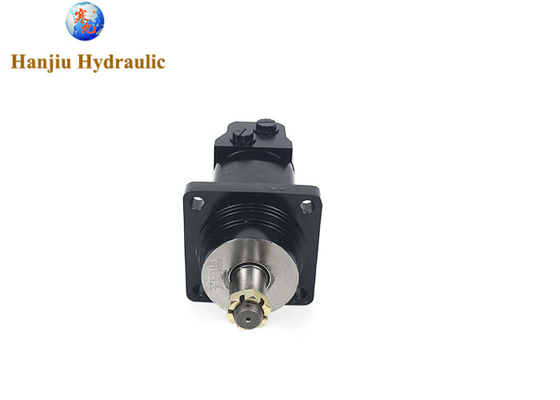

Large Image : Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	105-1007-006

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	90 USD
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Type:	Low Speed High Torque Motor	Material:	Cast Iron
Displacement:	315ml/r	Flange:	4 Bolts Wheel Flange
Port Size:	1.0625-12 UN-2B SAE O-Ring Ports	Drain Line:	.4375-20 UNF-2B SAE O-Ring Port
Highlight:	Hydraulic Geroler Disc Valve Motor , Disc Valve Motor , Hydraulic Geroler Motor

Hydraulic Geroler Disc Valve Motor - 2000 -Wheel, 306.6 cm³/r Max Geometric Displacement 105-1007-006

Quick review:

Model No.: BMK2-315-WE-T4-SU= 105-1007-006

Rotation Reversible
Mount
4×Φ13.6Wheel-flangeΦ147.6,

pilot Φ107.95x6.4
Shaft :
Cone-shaftΦ31.75 ,

parllel key 7.96×7.96×25.4
Ports
7/8-14UNF O-ring
Case Drain
7/16-20 UNF

displacement	304.3 cubic centimetre per revolution
speed	800-980 rpm
torque	235-345 nm
mounting	2 Bolt SAE A Flange
shaft	1 1/4 Inch Straight

Main specifiction:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006 0

Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006 1

Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006 2

Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006 3

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006 4

80cc	100cc	130cc	160cc	195cc	245cc	305cc	395cc	490cc
105-1001-006	105-1002-006	105-1003-006	105-1004-006	105-1005-006	105-1006-006	105-1007-006	105-1060-006	105-1152-006

Hydraulic Geroler Disc Valve Motor 2000 -Wheel 306.6 cm3/r Max Geometric Displacement 105-1007-006 5

Precautions for hydraulic orbital motor operation

①Check whether all components of the hydraulic system are connected correctly and add oil to the specified height through the filter before operation.

② In the unloaded state start running for 10 ~ 15 minutes, and exhaust, foam in the tank, the system has noise, and the motor cylinder has a stagnation in the system proves that there is air.

③Excluding the air, fill the oil tank, and then start to hydraulic orbital motor gradually increase the load until the specific load, observe whether there are abnormal phenomena, such as noise, oil rise and oil leakage.

④Change the oil once by running for 50 hours, and change it later according to the maintenance rules.

⑤ Do not disassemble easily if the motor is not faulty.
