LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S

Large Image : LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-475-FS-RW-R-B

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	170 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-475-FS-RW-R-B
Size:	470ml/r	Flange:	Magneto Mount 6-Hole Flange
Shaft:	25.4mm Key Shaft	Rotation:	CCW
Port:	7/8-14UNF	Material:	Cast Iron
Highlight:	SAE Ports Hydraulic Motor , Hydraulic Motor , LSHT Hydraulic Motor

LSHT Hydraulic Motor - 28.18 in³/rev - Magneto - 1" Keyed - SAE Ports - CW - BMER-2-475-FS-RW-S

Quick review:

Model no.: BMER-2-475-FS-RW-R-B

matching White motor RE530/531 ;Parker TG series motor

displacement	470 ml/r
flange	wheel mount
pilot	82.55*5
ports	BMER-2-475-FS-RW-R-B
output shaft	Shaft RW: Cylindrical shaft Ø25.4 Parallel key 6.35x6.35x31.75
rotation	right
paint	black

Specification:

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

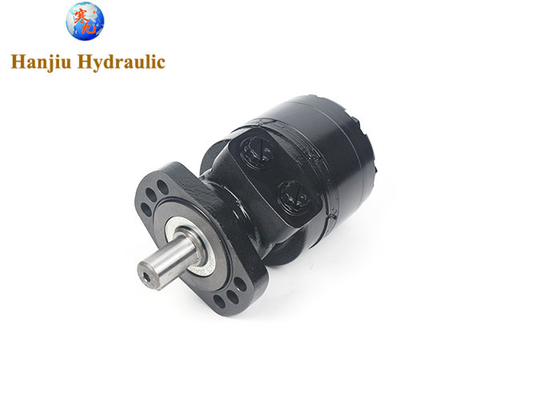

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S 0

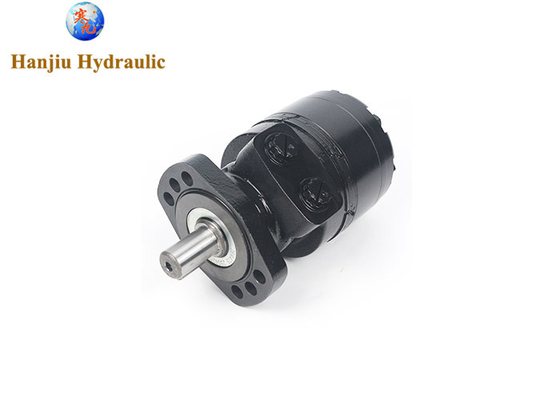

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S 1

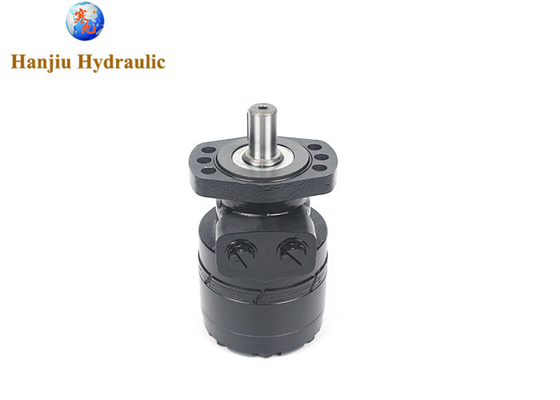

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S 2

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S 3

The Orbital motor specifications system is like a precision gear set, where the optimization of each parameter affects the overall performance. From the basic formulas of pressure and displacement to the in-depth synergy of materials and processes, parameter selection is not only the result of scientific calculations, but also the crystallization of engineering experience. With the penetration of intelligence and new material technology, the parameter boundaries are constantly being broken through, pushing this classic hydraulic component towards a new stage of higher efficiency and reliability.

orbital motor specs

orbital motor size chart

orbital motors diagram

orbital motor catalog pdf

orbital motor conversion chart

orbital motor operating principle

orbital motors for sale

orbital motor manufacturers

LSHT Hydraulic Motor 28.18 In3/rev Magneto 1" Keyed SAE Ports CW - BMER-2-475-FS-RW-S 4
