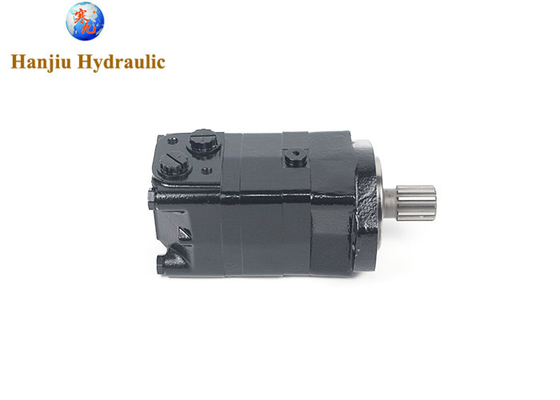

BMSY-200-E2-FE-S Hydraulic motor, high pressure seal kits for beet loader
Product details:
type code BMSY-200-E2-FE-S
Displacement:200cc
Flange:
2-Ø13.5 Rhomb-flange Ø106.4, E2
pilot Ø82.5×6.3
Shaft:
Shaft Ø31.75,splined key 14-DP12/24
Ports:
7/8-14UNF O-ringˈ 7/16-20 UNF
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type |
BMSY
80 |
BMSY
100 |
BMSY
125 |
BMSY
160 |
BMSY
200 |
BMSY
250 |
BMSY
315 |
BMSY
375 |
Geometric displacement
(cm3 /rev.) |
80.6 |
100.8 |
125 |
157.2 |
200 |
252 |
314.5 |
370 |
| Max. speed (rpm) |
cont. |
800 |
748 |
600 |
470 |
375 |
300 |
240 |
200 |
| int. |
988 |
900 |
720 |
560 |
450 |
360 |
280 |
240 |
| Max. torque (N·m) |
cont. |
190 |
240 |
310 |
316 |
400 |
450 |
560 |
536 |
| int. |
240 |
300 |
370 |
430 |
466 |
540 |
658 |
645 |
| peak |
260 |
320 |
400 |
472 |
650 |
690 |
740 |
751 |
| Max. output (kW) |
cont. |
15.9 |
18.8 |
19.5 |
15.6 |
15.7 |
14.1 |
14.1 |
11.8 |
| int. |
20.1 |
23.5 |
23.2 |
21.2 |
18.3 |
17 |
18.9 |
17 |
| Max. pressure drop (MPa) |
cont. |
17.5 |
17.5 |
17.5 |
15 |
14 |
12.5 |
12 |
10 |
| int. |
21 |
21 |
21 |
21 |
16 |
16 |
14 |
12 |
| peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
20 |
18.5 |
14 |
| Max. flow (L/min) |
cont. |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| int. |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
| Max. inlet pressure (MPa) |
cont. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
| int. |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Weight (kg) |
9.8 |
10 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
12.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
Application Scenarios, Wide Coverage
Small agricultural machines: In small agricultural machines such as lawn mowers, Hanjiu's Orbital motor features can be directly integrated into the drive wheels, solving the problem of space limitation and making the equipment more compact and efficient.
Ship anchor: In ship anchor, the lightweight design reduces the center of gravity of the equipment and improves the stability of the operation, which provides a more reliable guarantee for ship operation.
High efficiency and low energy consumption
The volumetric efficiency of Hanjiu Orbital motor features is ≥90%, which realizes the efficient use of energy.
Adaptable to all operating conditions
Hanjiu Orbital motor features have a wide range of operating temperatures and do not require preheating for low-temperature startup, making them especially suitable for harsh environments such as polar regions. At the same time, it is well sealed, effectively blocking the intrusion of dust and moisture, prolonging the service life and making the equipment more adaptable to a variety of complex working conditions.
At the same time, the equipment can quickly respond to operating instructions, especially for frequent start and stop loaders and other equipment. Even if it is subjected to extreme load instantly, the long-term performance will not be affected, which provides a reliable guarantee for mining equipment and other heavy-duty operations.
These are some of the features of Orbital motor features, if you want to know more information, welcome to our official website. Choosing Hanjiu Orbital motor features is not only choosing a product, but also choosing a trustworthy partner. Let's work hand in hand to drive the future with technological innovation and build a strong power for industrial development!
